Cranking Test

Connect a voltmeter and ammeter to battery. See Fig 1. On Integra, disconnect connector from distributor.
On all models, use remote starter switch to crank engine. Check cranking voltage and current draw. Ensure voltage is at least 8 volts. Current draw should be less than 350 amps. Cranking speed should be above 100 RPM.

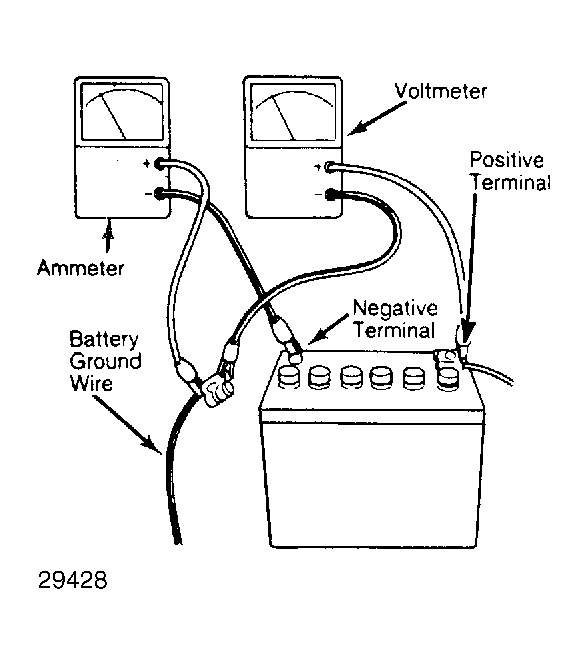

Fig 1: Connecting Voltmeter & Ammeter For Cranking Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
