Component Location Graphics

Download the full database via torrent (~1.1 TB)
NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

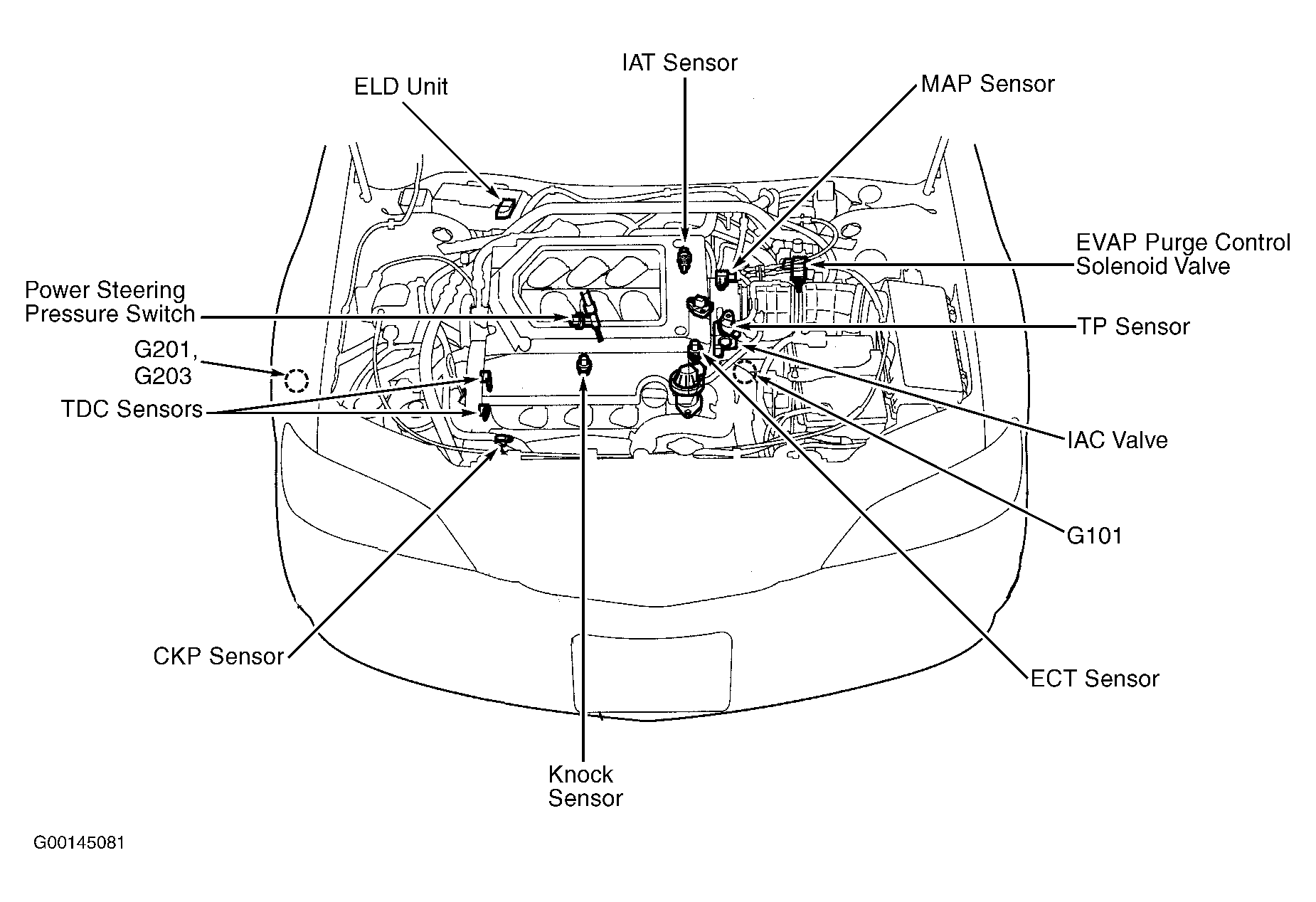

Fig 1: Engine Compartment
G00145081

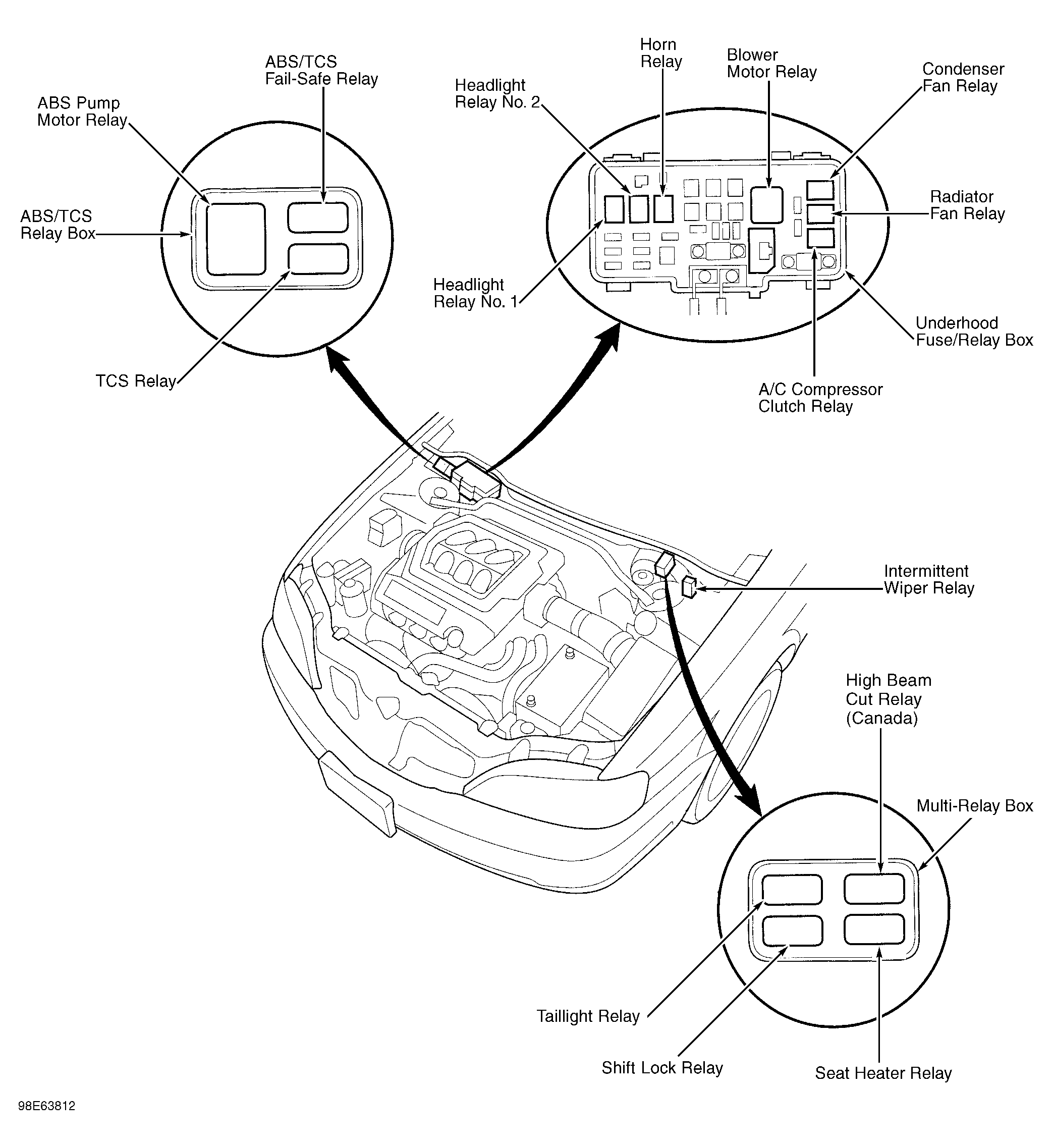

Fig 2: Engine Compartment
G98E63812

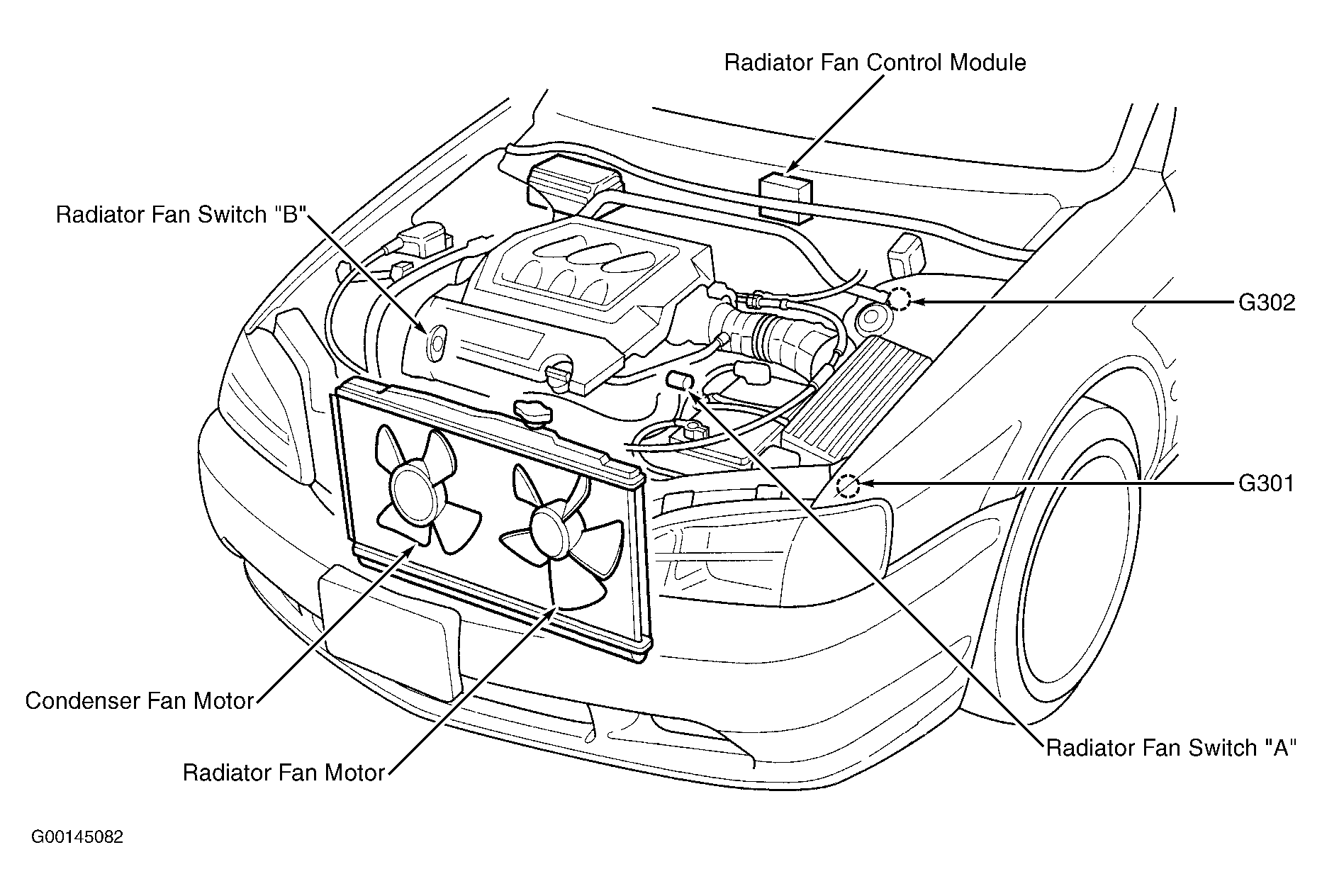

Fig 3: Engine Compartment
G00145082

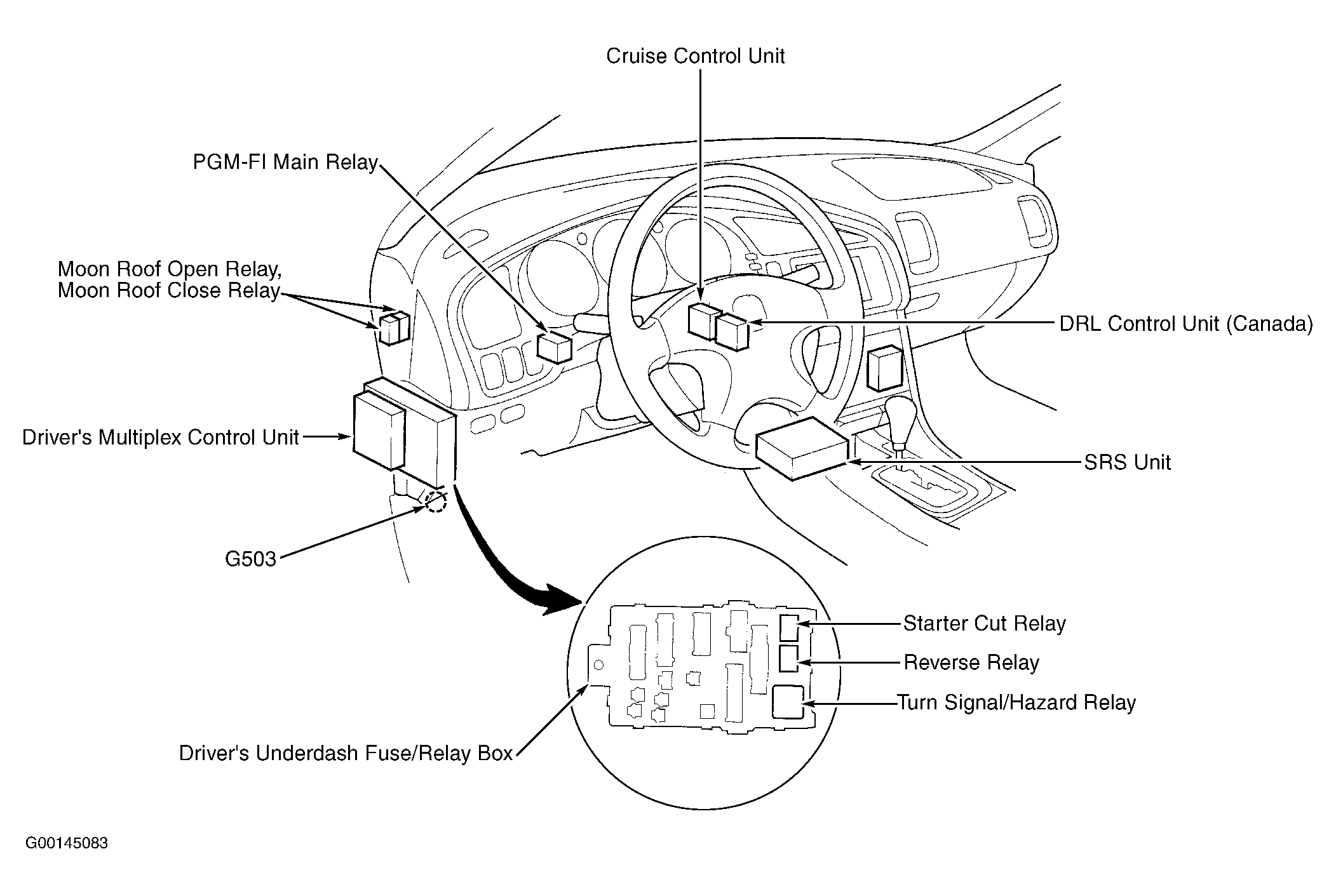

Fig 4: Dash
G00145083

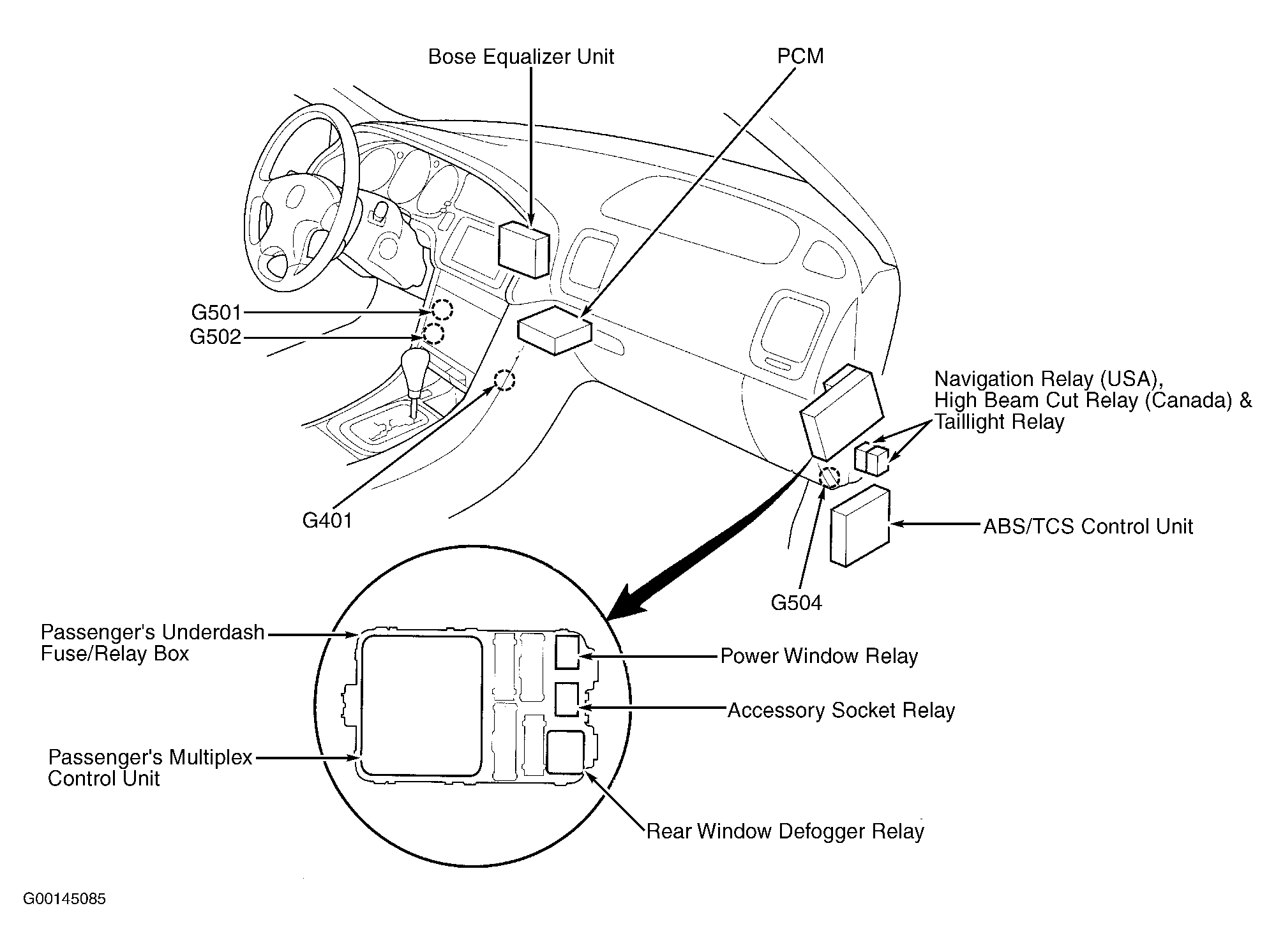

Fig 5: Dash
G00145085

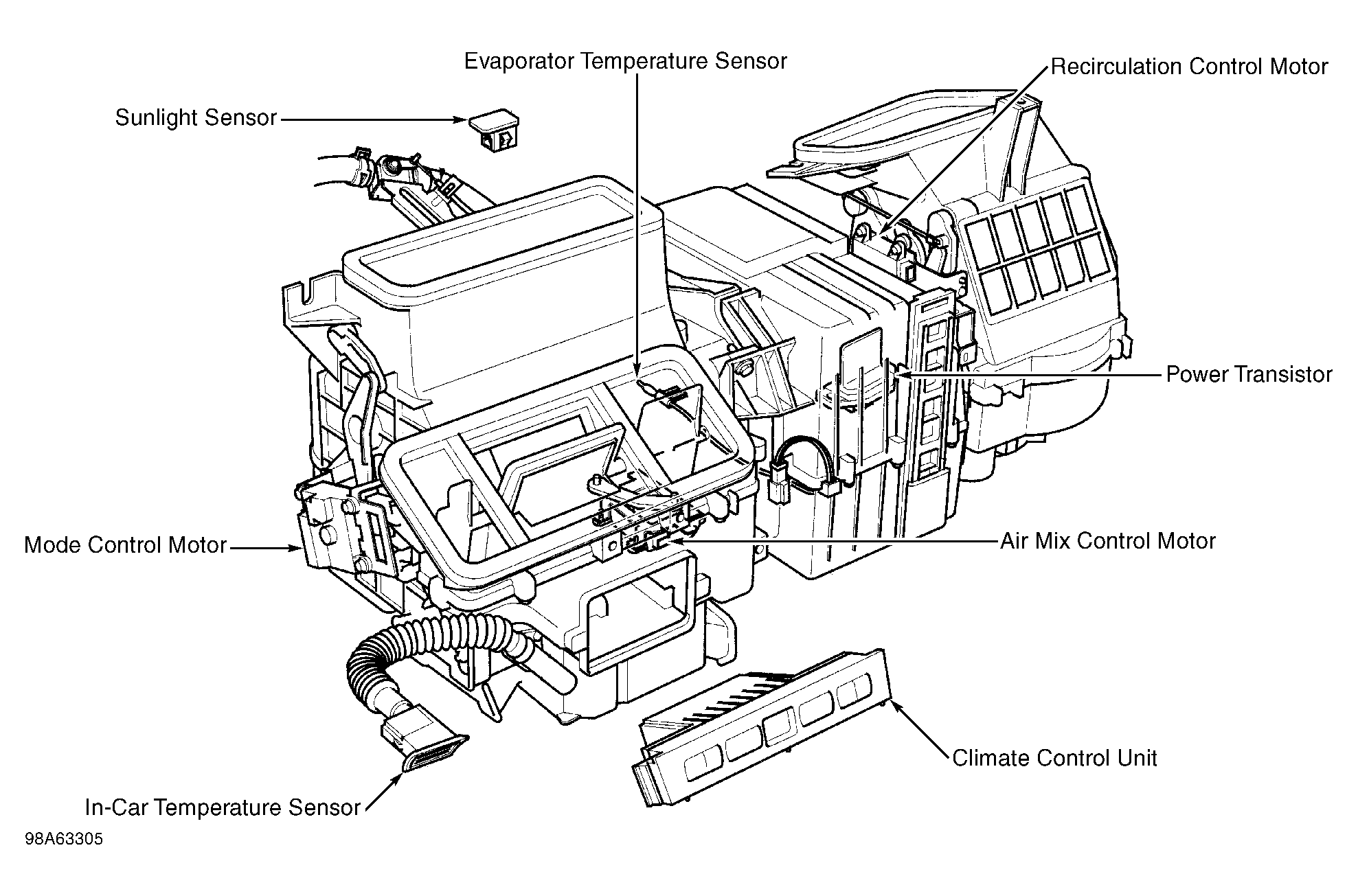

Fig 6: HVAC Assembly
G98A63305
