Solenoid Test

Download the full database via torrent (~1.1 TB)
  1. Remove the starter solenoid from the gear housing. See Fig 1 .
  2. Check for continuity between the terminals in each solenoid plunger position. See Fig 2 .

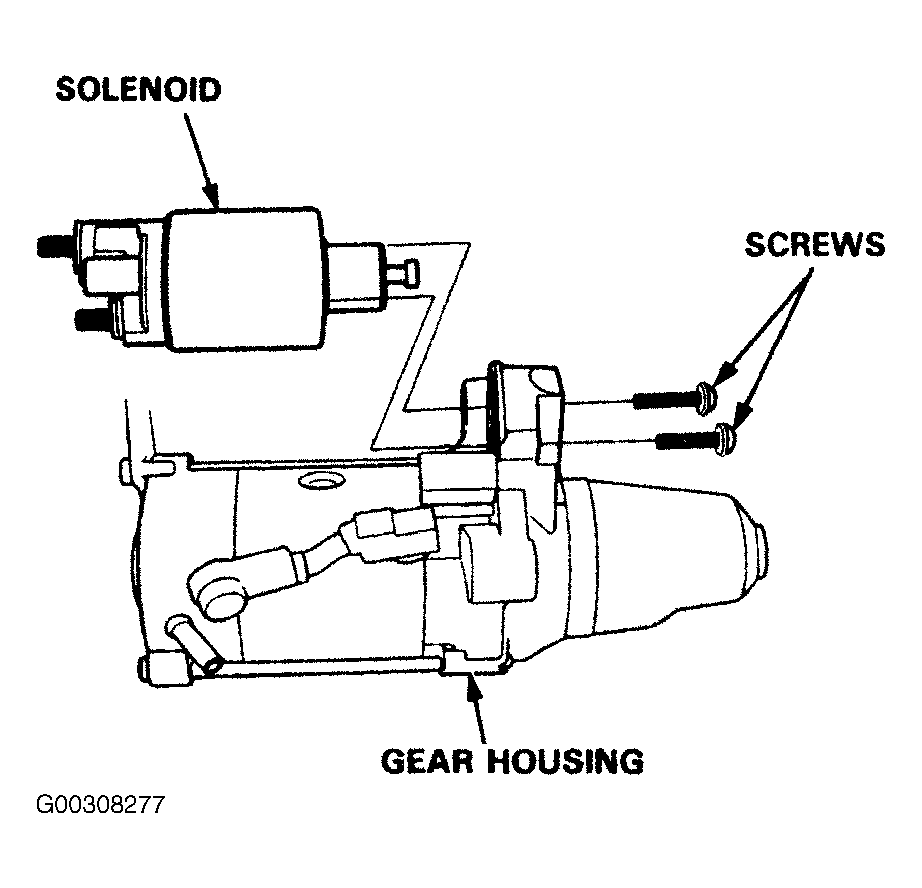

Fig 1: Removing Solenoid From Gear Housing
G00308277Courtesy of AMERICAN HONDA MOTOR CO., INC.

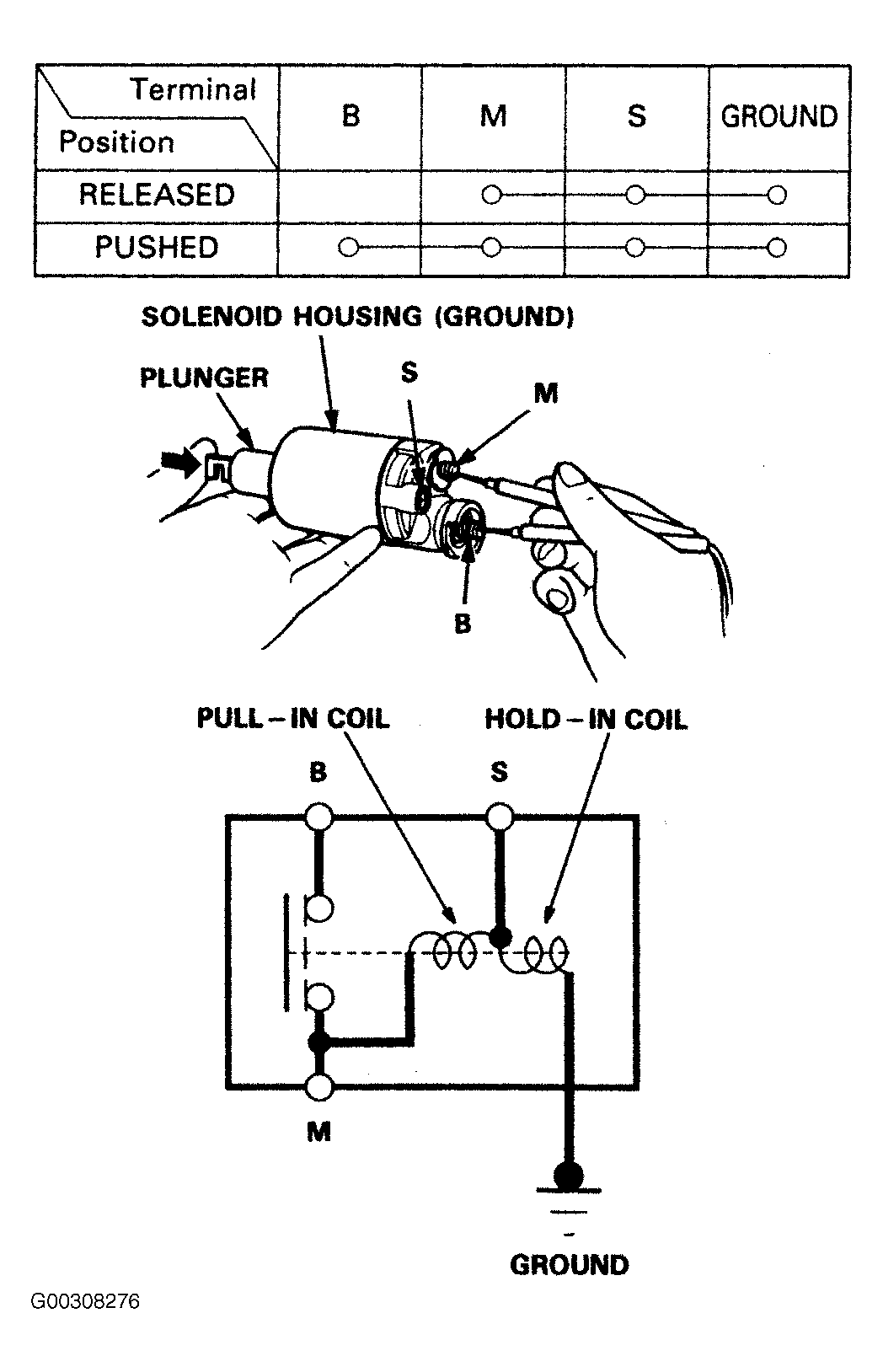

Fig 2: Identifying Solenoid Terminals
G00308276Courtesy of AMERICAN HONDA MOTOR CO., INC.
