Resonator Replacement

Download the full database via torrent (~1.1 TB)
  1. Remove the bolts (A).

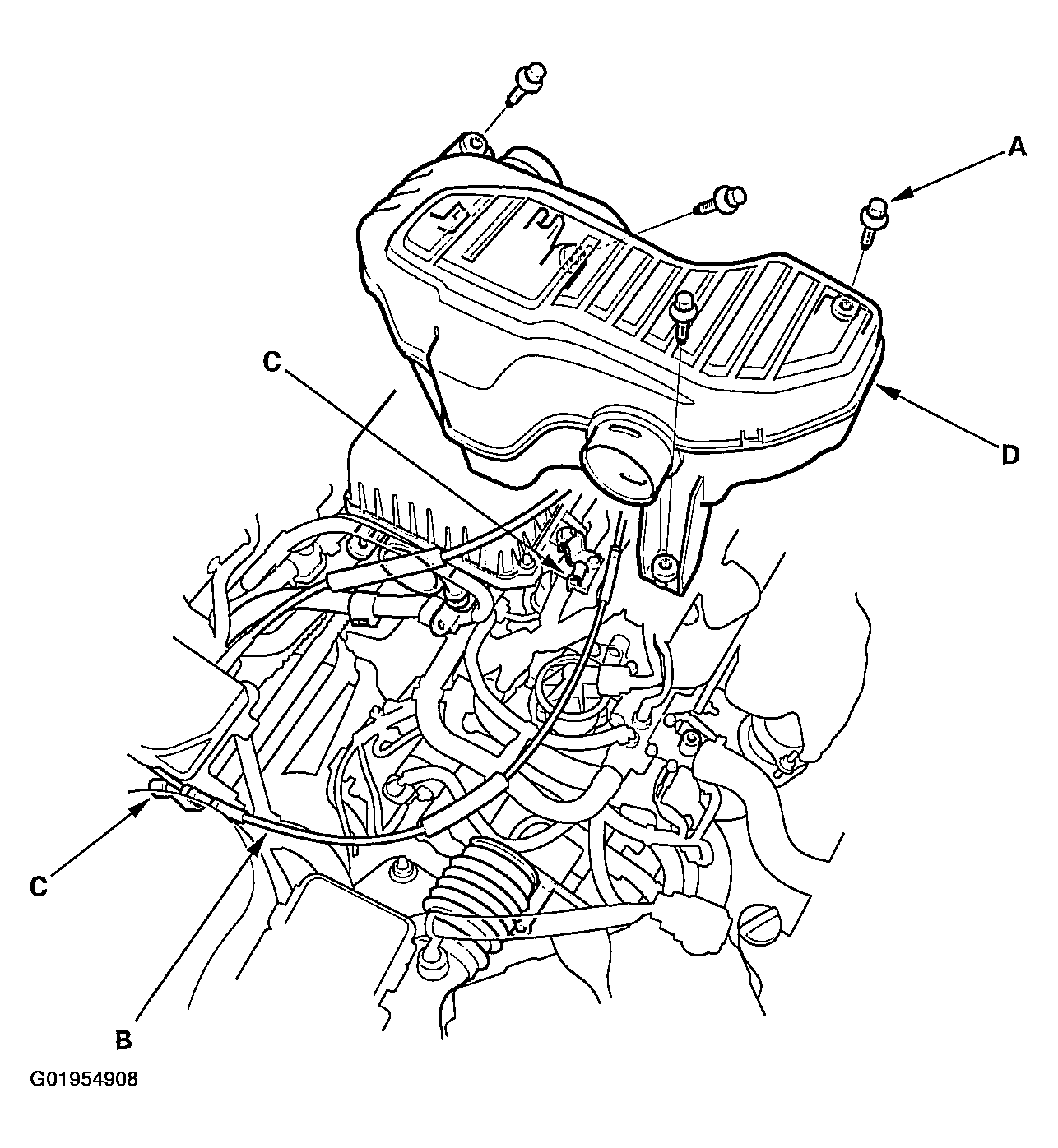

    Fig 1: Removing Resonator Bolts
    G01954908
  2. Remove the throttle cable (B) from the bracket (C).
  3. Remove the resonator (D).
  4. Install the parts in the reverse order of removal.
