Circuit Diagram
Circuit Diagram
Download the full database via torrent (~1.1 TB)

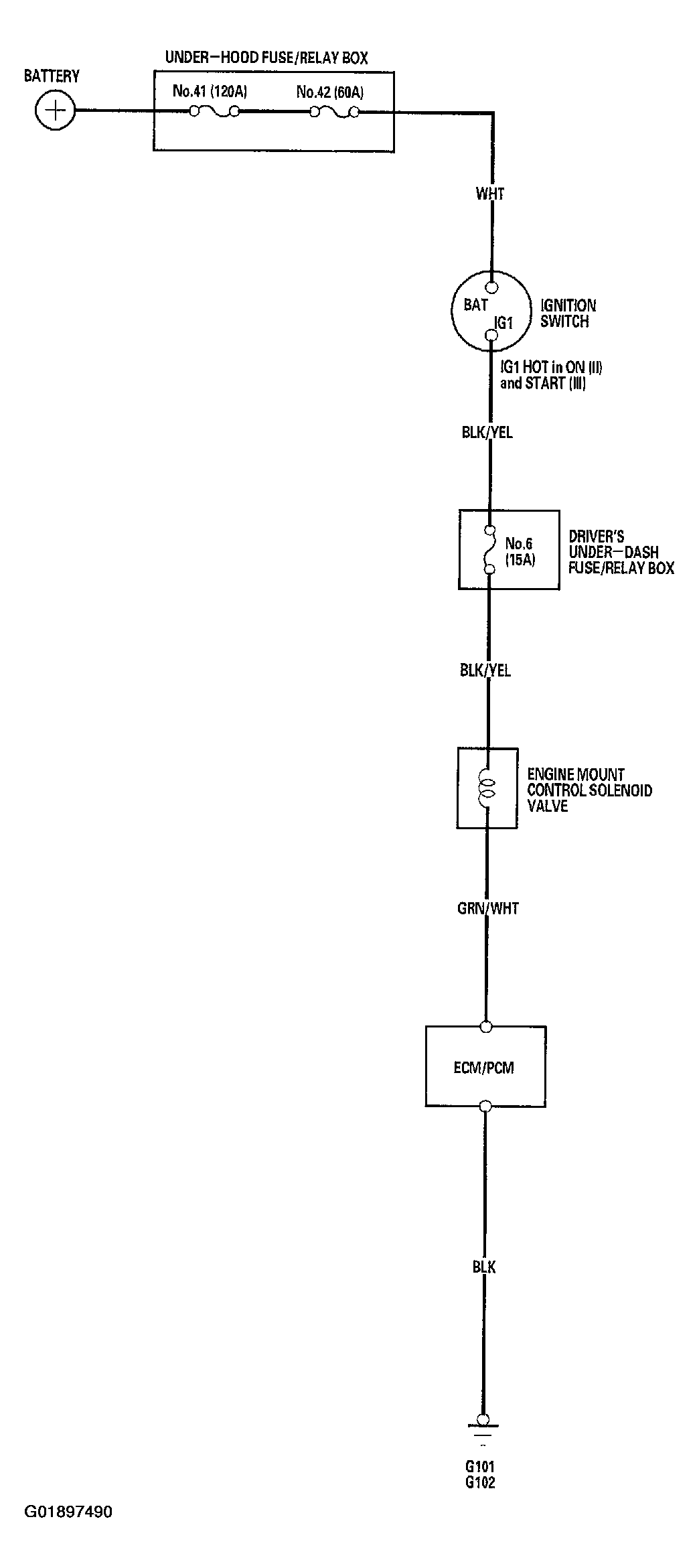

Fig 1: Engine Mount Control System Wiring Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
