Driver Position Memory System (DPMS)
>>
Component Location Index
Component Location Index
Download the full database via torrent (~1.1 TB)

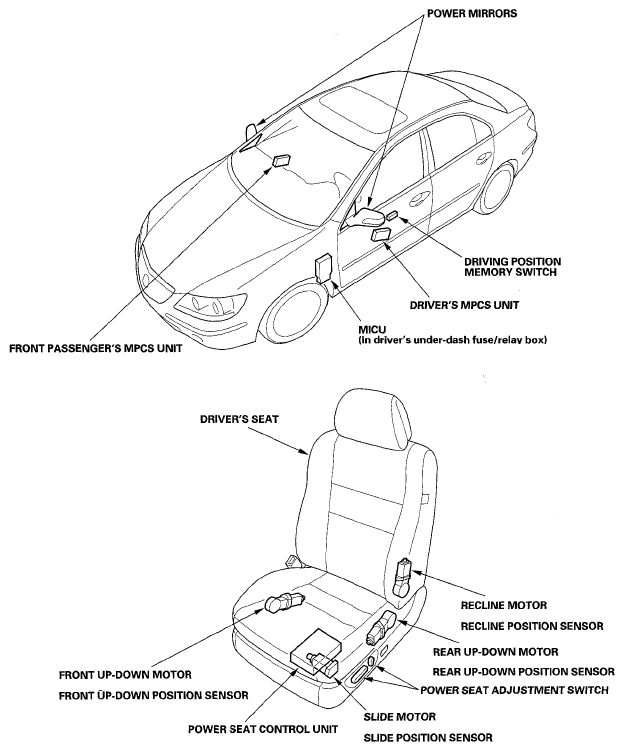

Fig 1: Identifying Location Of Driver Position Memory System (DPMS) Components (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

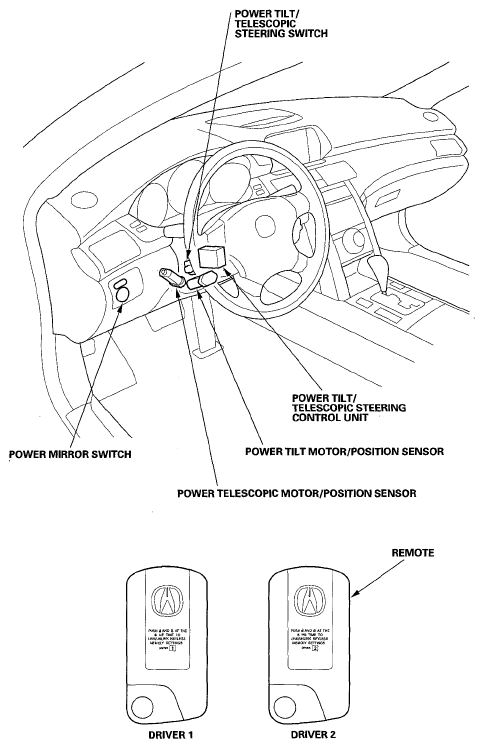

Fig 2: Identifying Location Of Driver Position Memory System (DPMS) Components (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
