Component Location Index
Component Location Index
Download the full database via torrent (~1.1 TB)

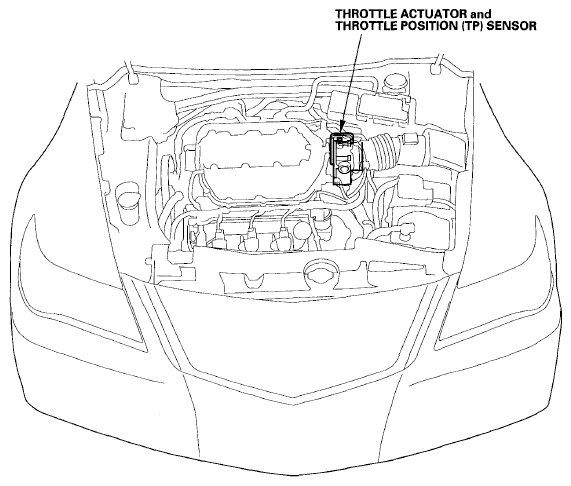

Fig 1: Electronic Throttle Control System Component Location Index Chart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

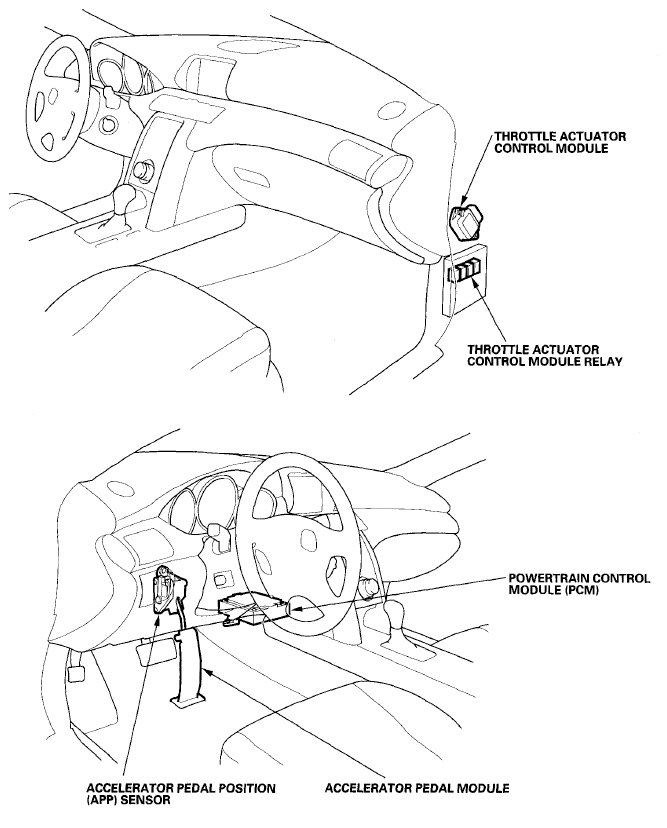

Fig 2: Electronic Throttle Control System Component Location Index Chart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
