Component Location Index

Download the full database via torrent (~1.1 TB)

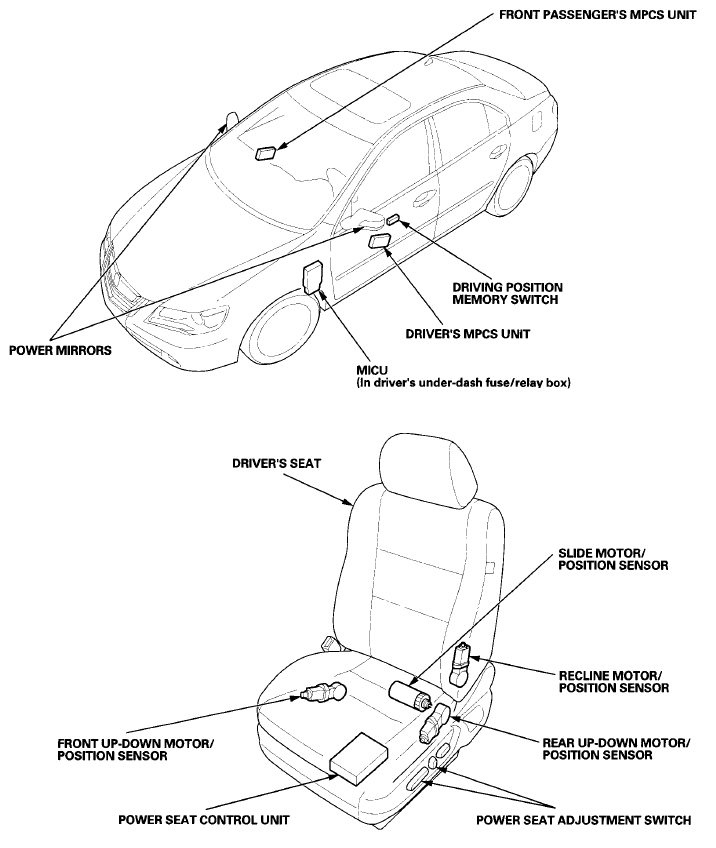

Fig 1: Identifying Driving Position Memory System Components Location (1 Of 2)
G07363618Courtesy of AMERICAN HONDA MOTOR CO., INC.

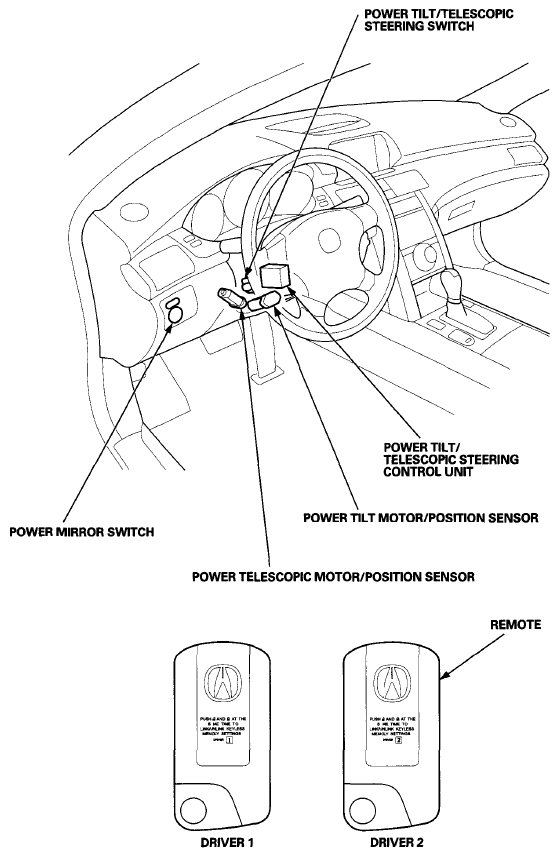

Fig 2: Identifying Driving Position Memory System Components Location (2 Of 2)
G07363619Courtesy of AMERICAN HONDA MOTOR CO., INC.
