Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Mount Control System
>>
Circuit Diagram
>>
Without Keyless Access System
Without Keyless Access System
Download the full database via torrent (~1.1 TB)

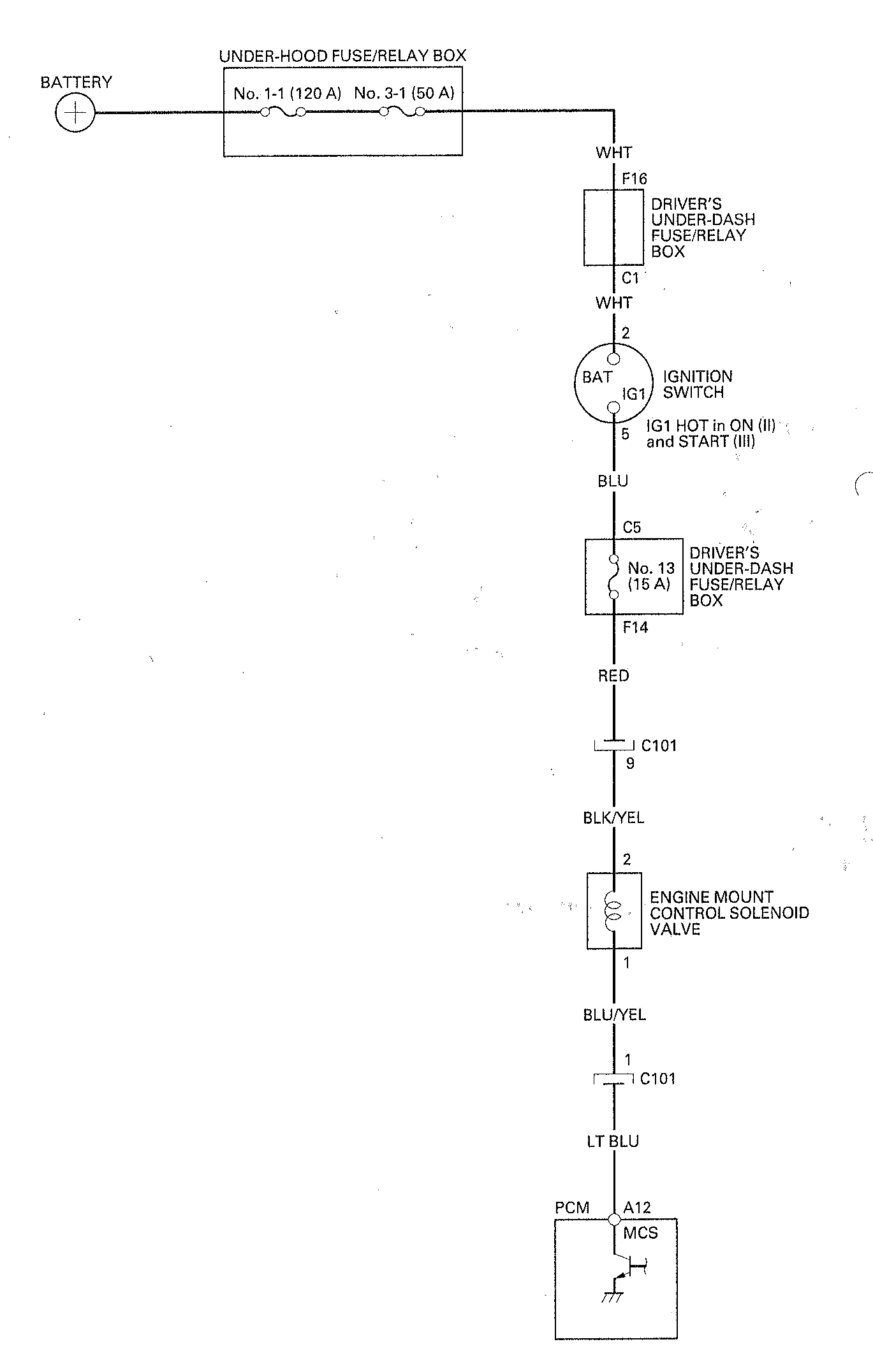

Fig 1: Engine Mount Control System Circuit Diagram (Without Keyless Access System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
