Air Cleaner Removal/Installation

Download the full database via torrent (~1.1 TB)
  1. Disconnect the MAF sensor/IAT sensor 5P connector (A).

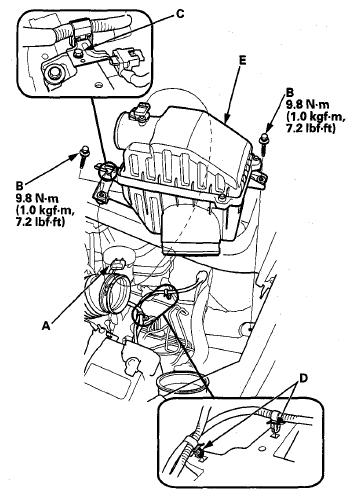

    Fig 1: MAF Sensor/IAT Sensor 5P Connector And Bolts With Torque Specifications
    G08052610Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bolts (B) and (C), then remove harness clamps (D).
  3. Remove the air cleaner (E).
  4. Install the parts in the reverse order of removal.
