MAP Sensor Replacement

Download the full database via torrent (~1.1 TB)
  1. Remove the engine cover (see step 6 under ENGINE REMOVAL ).
  2. Disconnect the MAP sensor 3P connector (A).

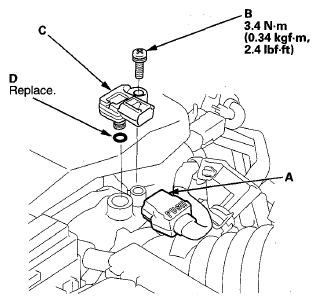

    Fig 1: Identifying MAP Sensor 3P Connector And Screw
    G08057169Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screw (B).
  4. Remove the MAP sensor (C).
  5. Install the parts in the reverse order of removal with a new O-ring (D).
