Evaporative Emissions System: Maintenance

Every 15, 000 miles check all components for leakage or deterioration. Replace as required.

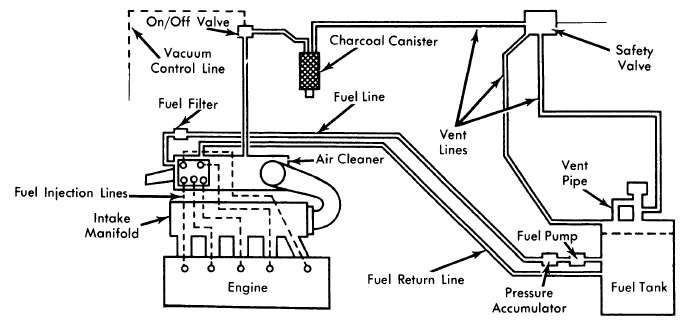

Fig 1: Audi 5000 Fuel Evaporation System

Courtesy of AUDI OF AMERICA, LLC

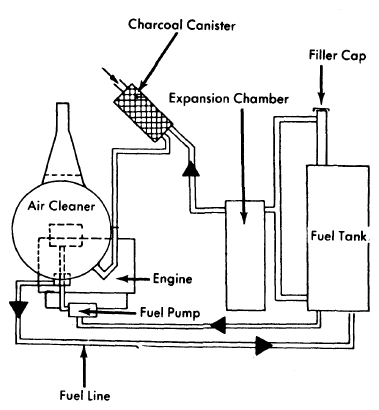

Fig 2: Audi Fox Fuel Evaporation System

Courtesy of AUDI OF AMERICA, LLC

Fig 3: Audi 100 LS Fuel Evaporation System

Courtesy of AUDI OF AMERICA, LLC
