Component Location Graphics

Download the full database via torrent (~1.1 TB)
NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

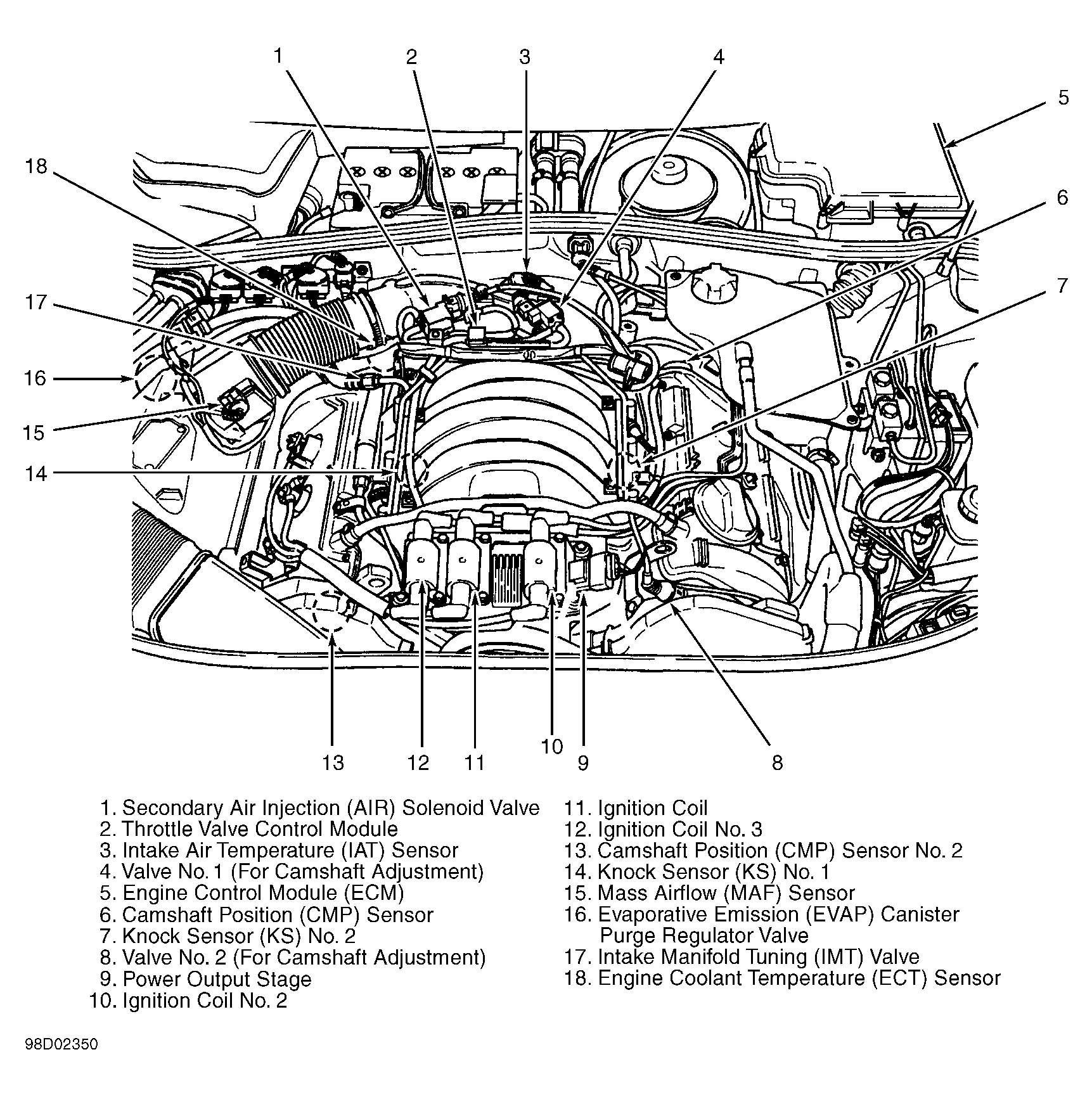

Fig 1: Engine Compartment
G98D02350

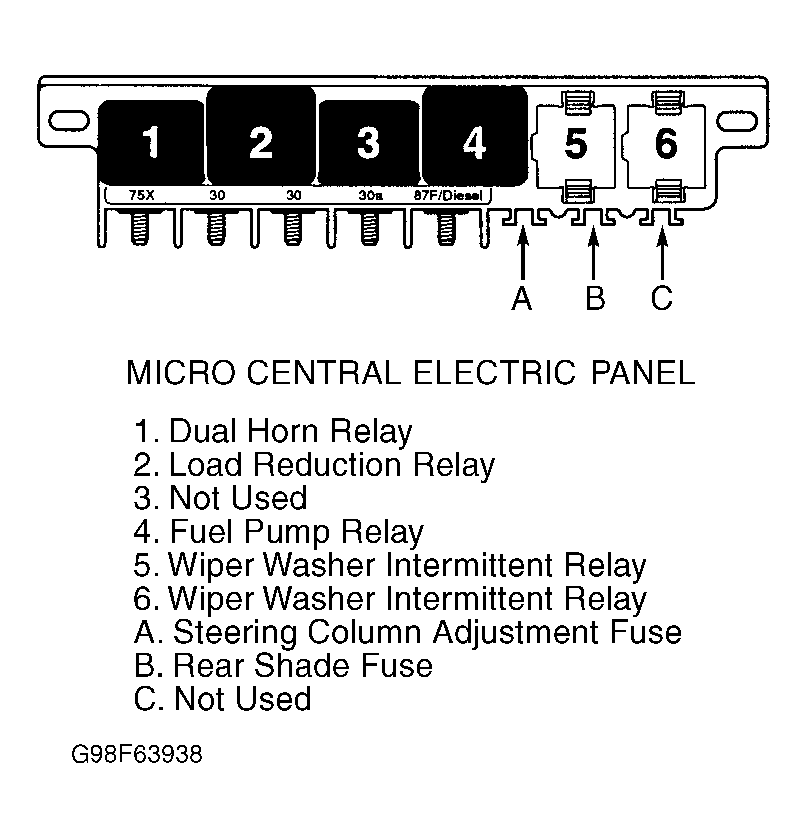

Fig 2: Micro Central Electric Panel
G98F63938
Fig 3: 3-Fold Relay Panel
G98G63939

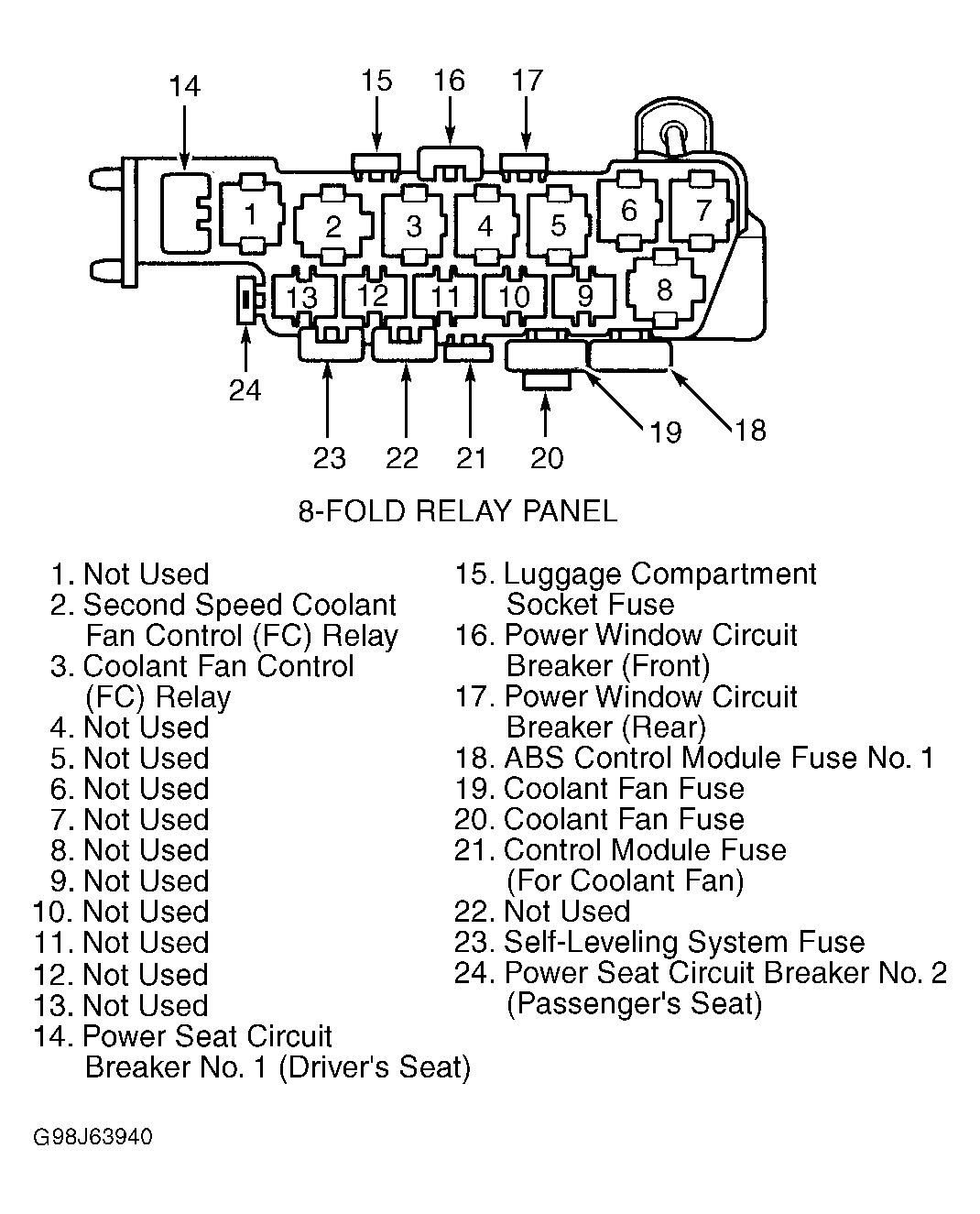

Fig 4: 8-Fold Relay Panel
G98J63940

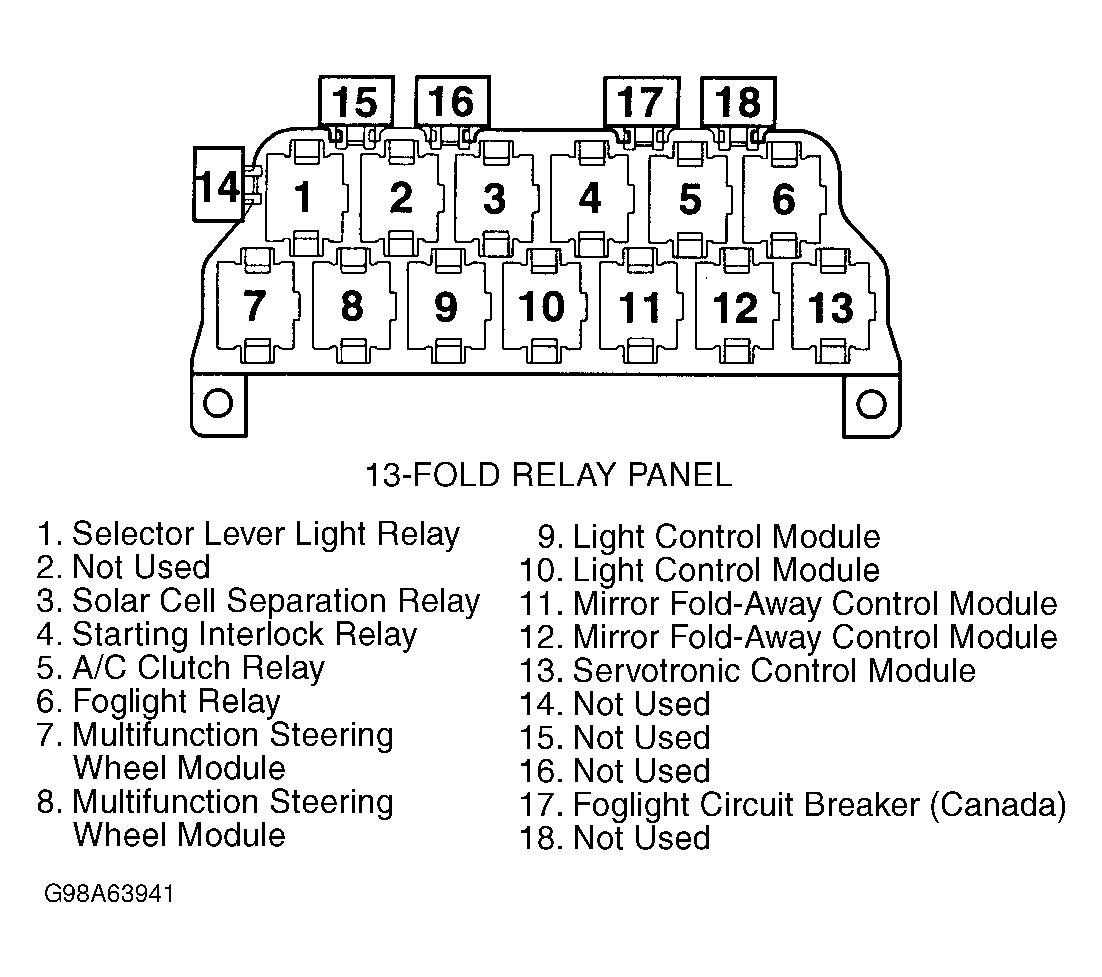

Fig 5: 13-Fold Relay Panel
G98A63941
Fig 6: Vehicle Overview
G98J02348
