Component Locations

Download the full database via torrent (~1.1 TB)

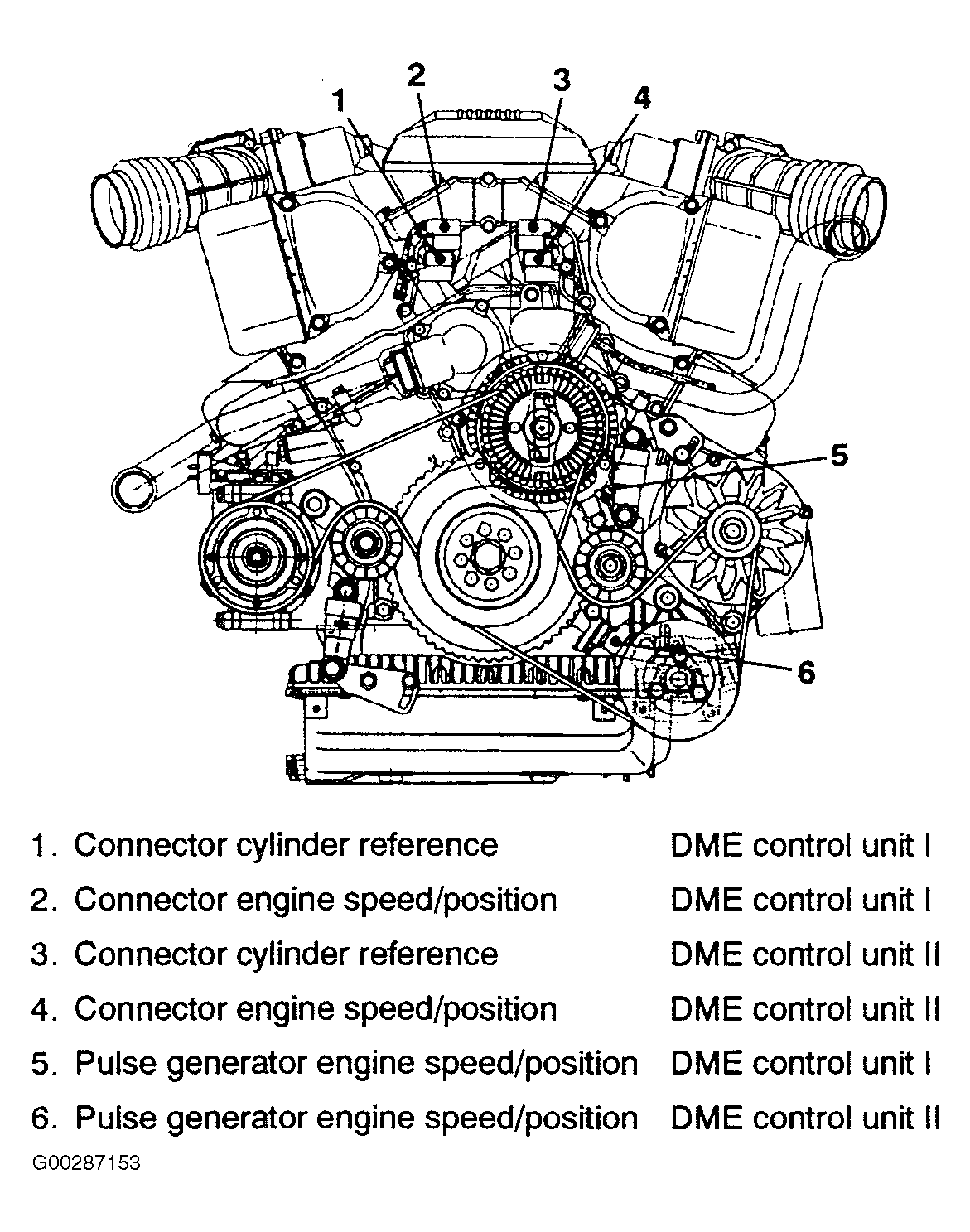

Fig 1: Locating Reference & Speed/Position Components (V12)

G00287153

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

See 1991 ELECTRICAL COMPONENT LOCATOR - 750 , 1992 ELECTRICAL COMPONENT LOCATOR - 750 , 1993 ELECTRICAL COMPONENT LOCATOR - 750 , 1994 ELECTRICAL COMPONENT LOCATOR - 750 or 1991-94 ELECTRICAL COMPONENT LOCATIONS - 850 .
