Electronic Brake Control Indicator Lamp Driver Module

Download the full database via torrent (~1.1 TB)

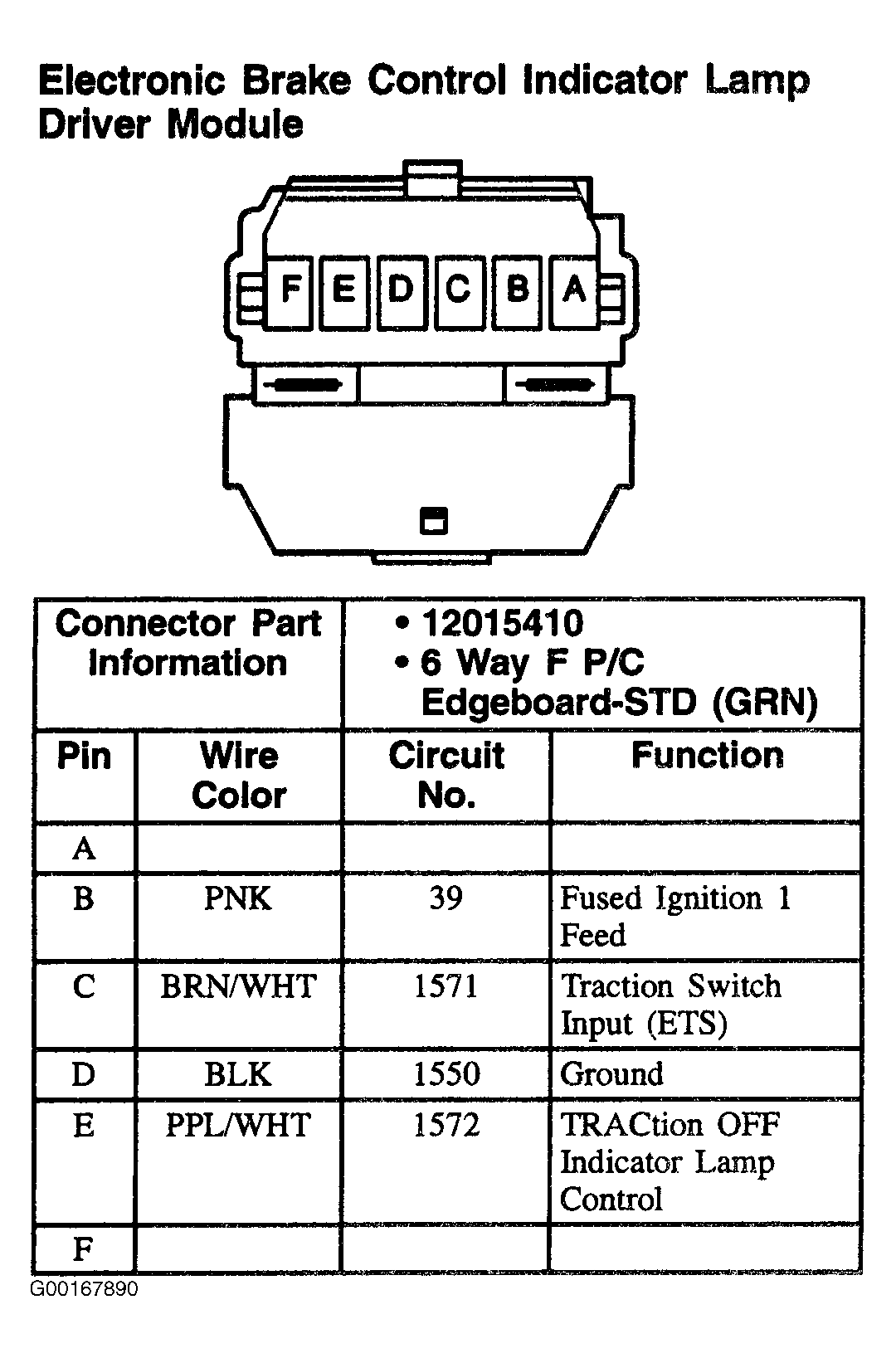

Fig 1: Electronic Brake Control Indicator Lamp Driver Module (Grand Prix) - 6-Pin Connector (Green)
G00167890Courtesy of GENERAL MOTORS CORP.
