Connector Terminal Identification
>>
Generator
>>
Grand PRIX
Grand PRIX
Download the full database via torrent (~1.1 TB)

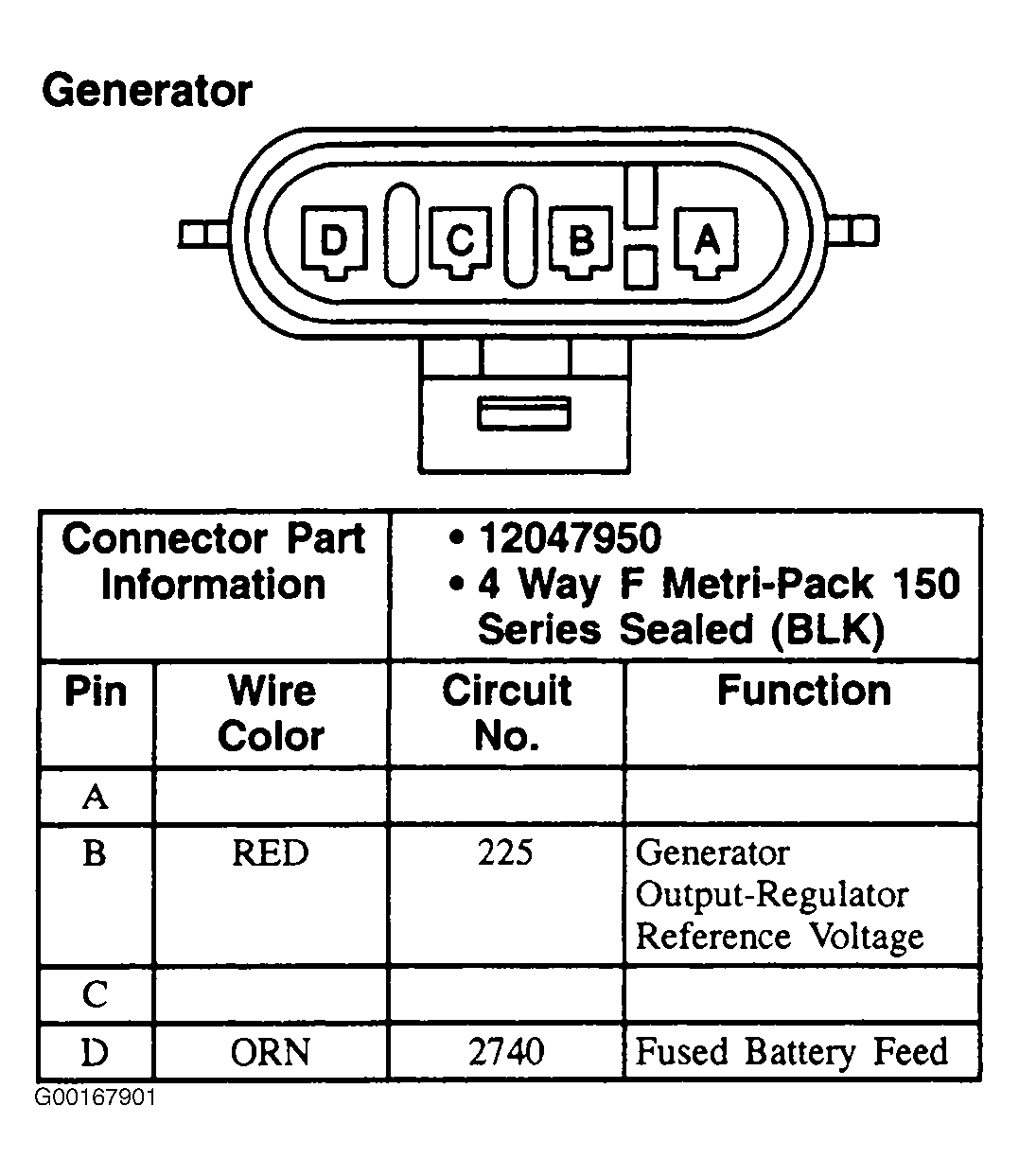

Fig 1: Generator (Grand Prix) - 4-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
