Powertrain Control Module Location

Download the full database via torrent (~1.1 TB)

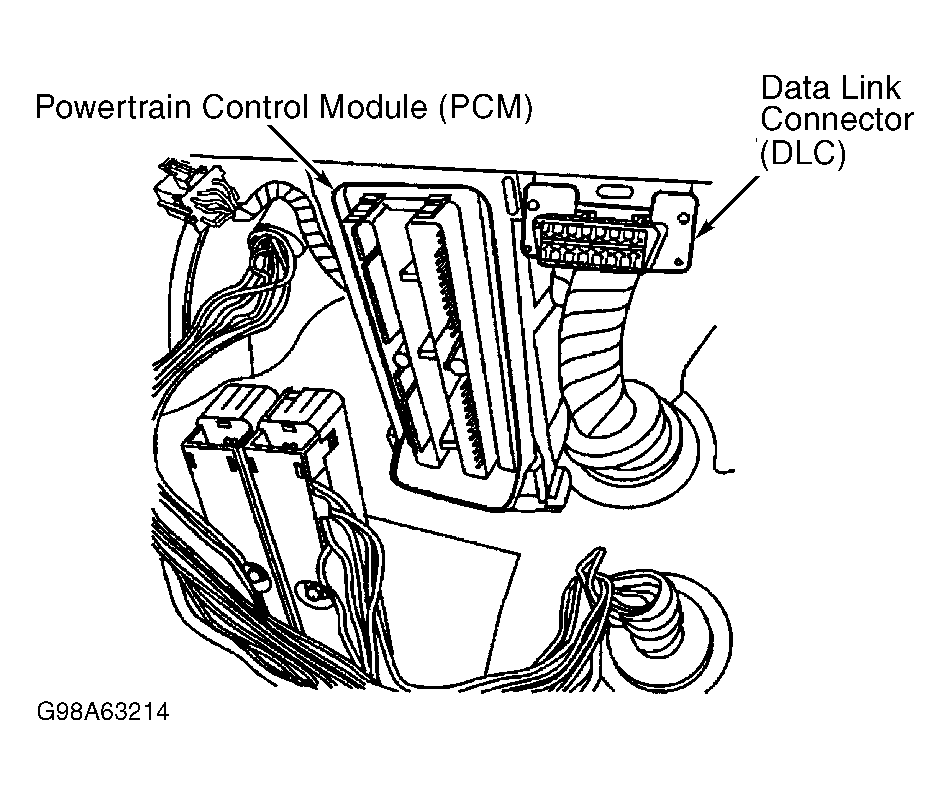

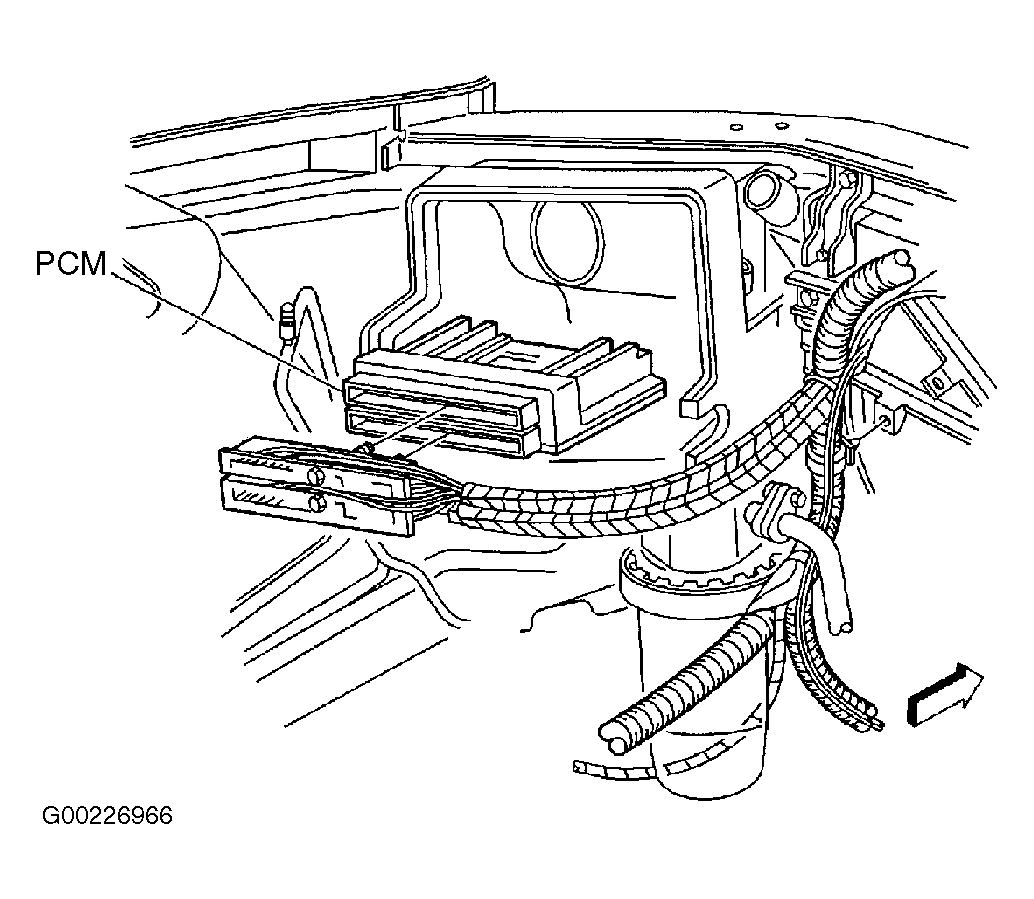

On Century and Grand Prix, PCM is located left side of engine compartment, inside air cleaner assembly. See Figure. On Malibu, PCM is located under Instrument Panel (I/P), next to Data Link Connector (DLC). See Figure.
