Remote Function Actuator Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right side quarter lower rear trim panel. Quarter Lower Rear Trim Panel Replacement (Right Side) , or Quarter Lower Rear Trim Panel Replacement (Left Side)

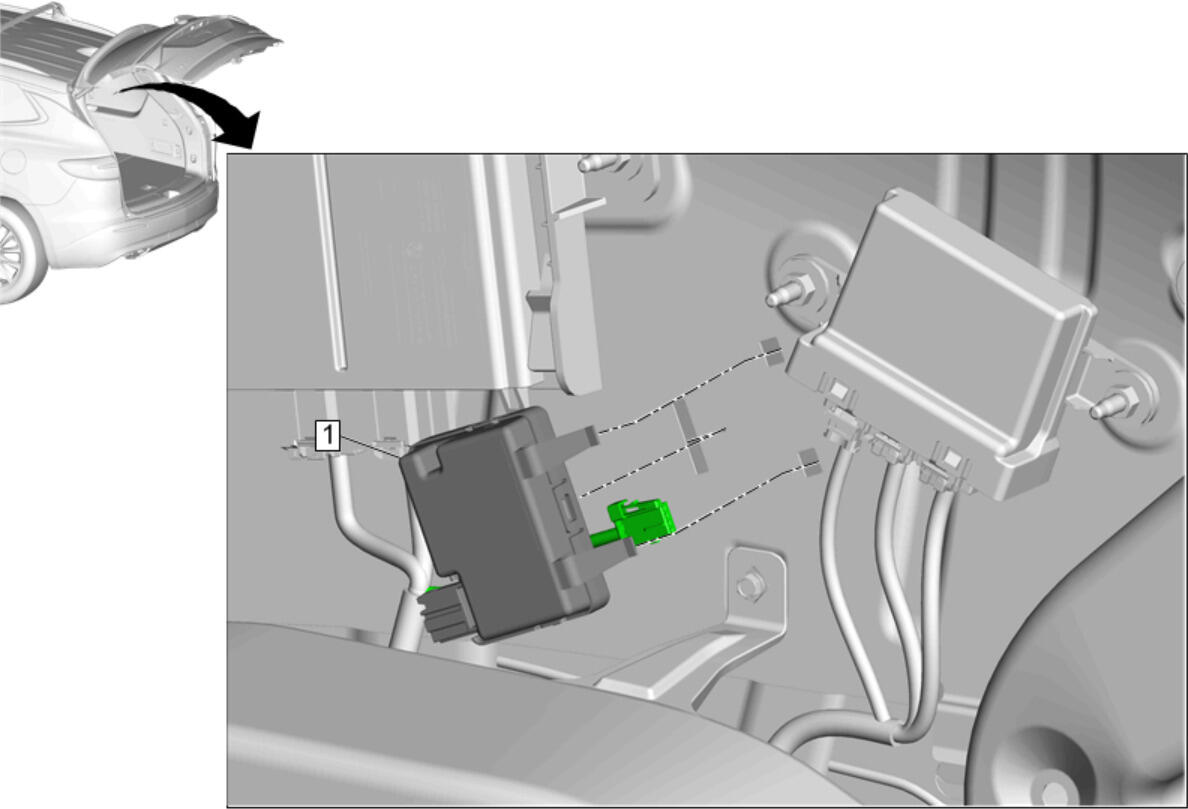

1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Remove the right side quarter lower rear trim panel.
Quarter Lower Rear Trim Panel Replacement (Right Side) , or

Remote Control Door Lock Receiver

Procedure
