Electronic Brake/Traction Control Module Connector C2
Electronic Brake/Traction Control Module Connector C2
Download the full database via torrent (~1.1 TB)

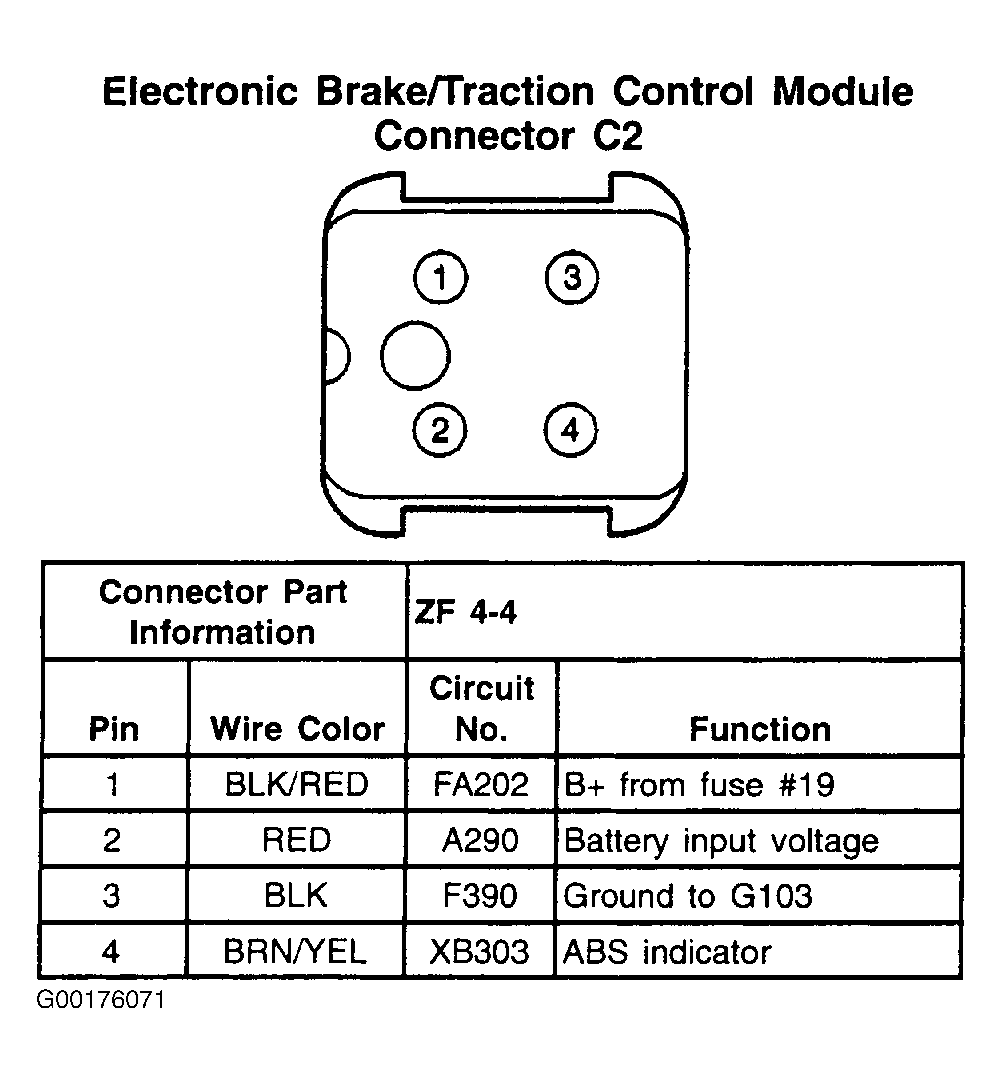

Fig 1: Electronic Brake/Traction Control Module Connector C2 - 4-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
