Connector Terminal Identification
>>
Automatic Transmission
>>
Case ADAPTOR
Case ADAPTOR
Download the full database via torrent (~1.1 TB)

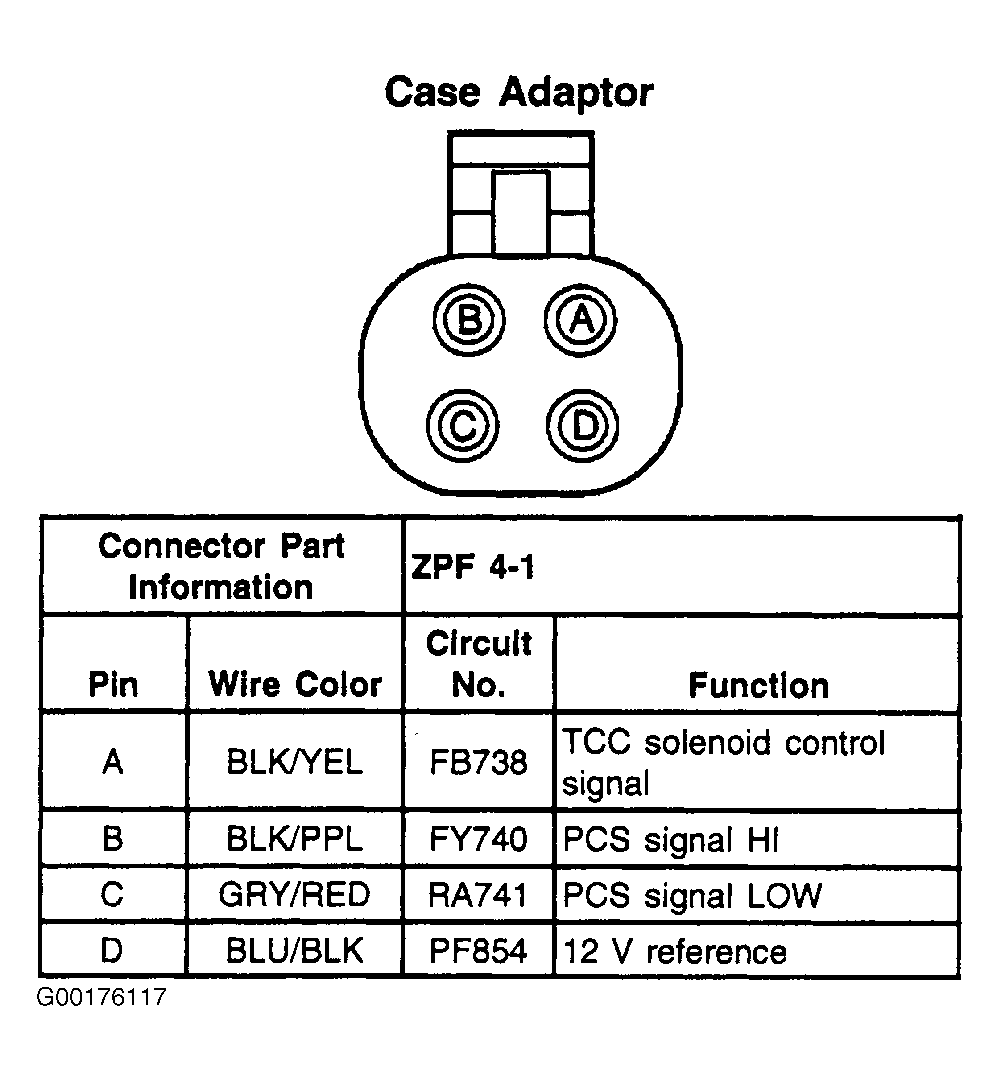

Fig 1: Case Adaptor - 4-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
