Connector Terminal Identification
>>
Automatic Transmission
>>
Main Case
Main Case
Download the full database via torrent (~1.1 TB)

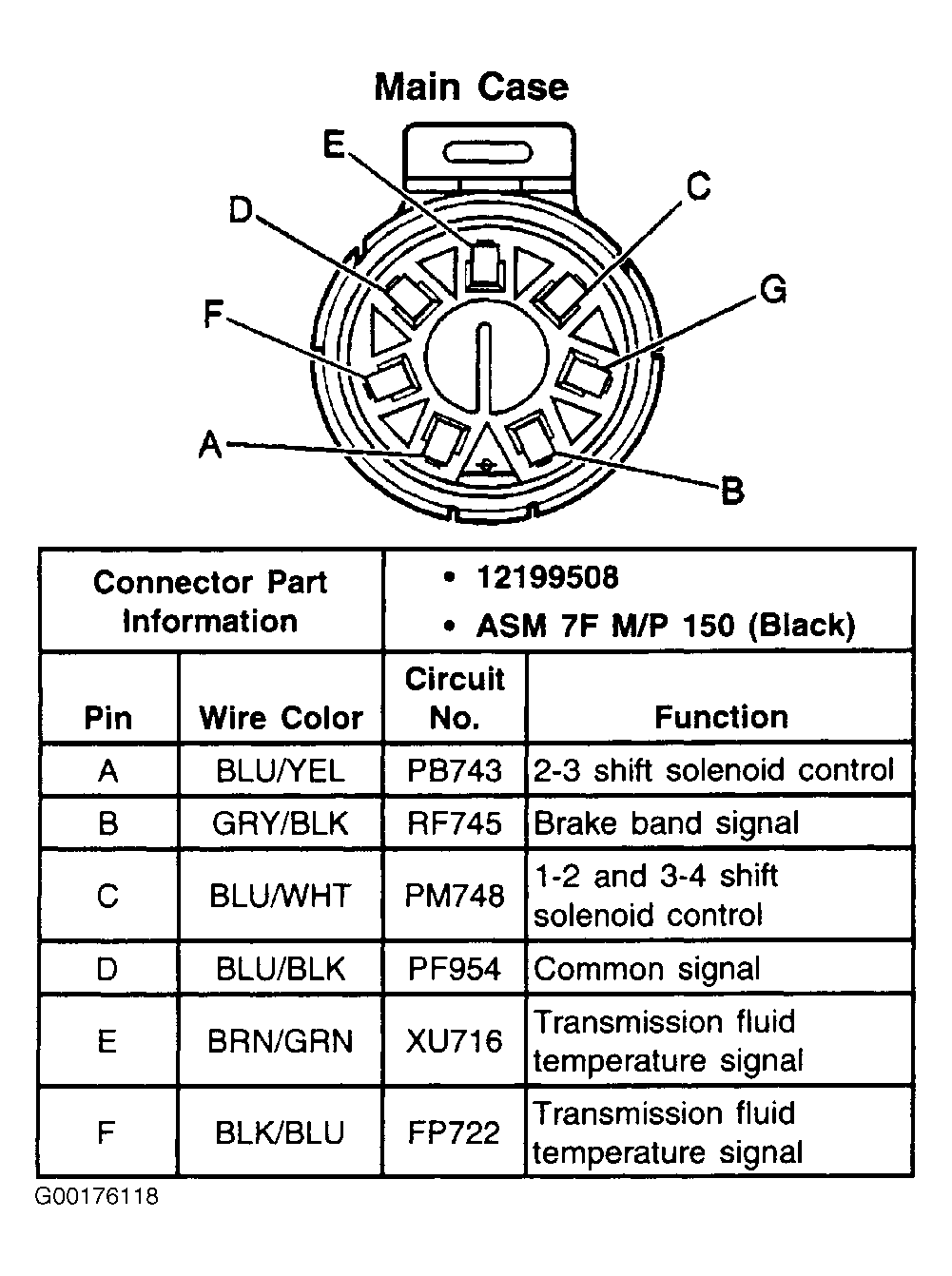

Fig 1: Main Case - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
