Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
Automatic Transmission
>>
Transmission Control Module (TCM)
Transmission Control Module (TCM)
Download the full database via torrent (~1.1 TB)

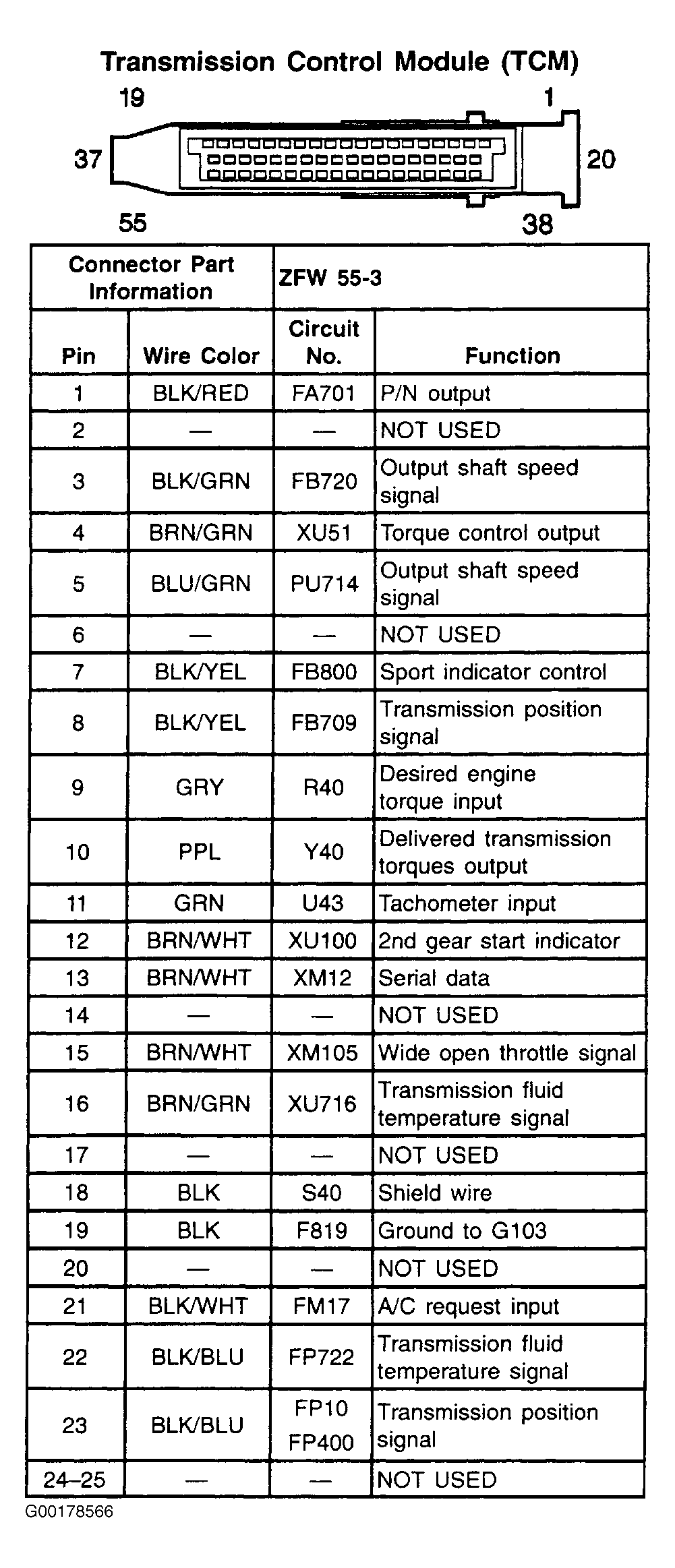

Fig 1: Transmission Control Module (TCM) - 55-Pin Connector (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

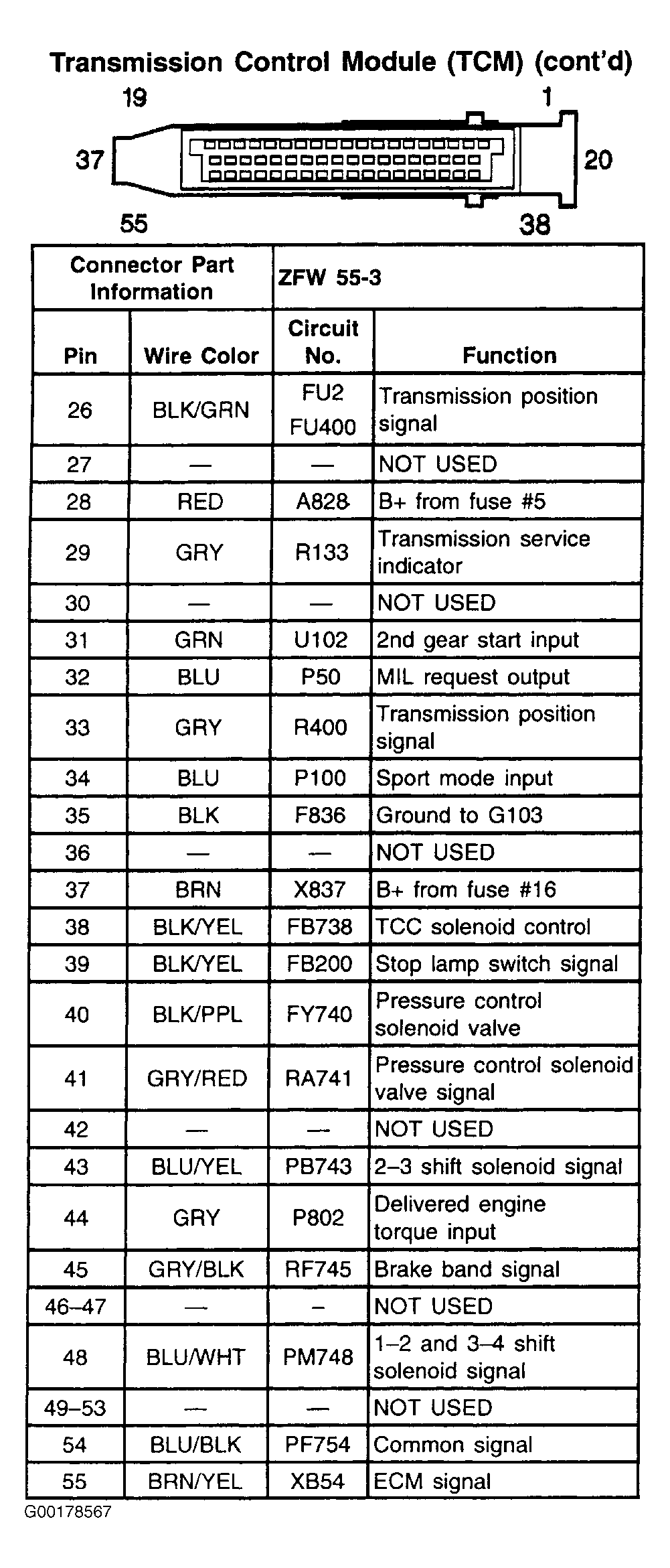

Fig 2: Transmission Control Module (TCM) - 55-Pin Connector (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
