Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
Body Control Module
>>
Body Control Module (BCM) Connector C1
Body Control Module (BCM) Connector C1
Download the full database via torrent (~1.1 TB)

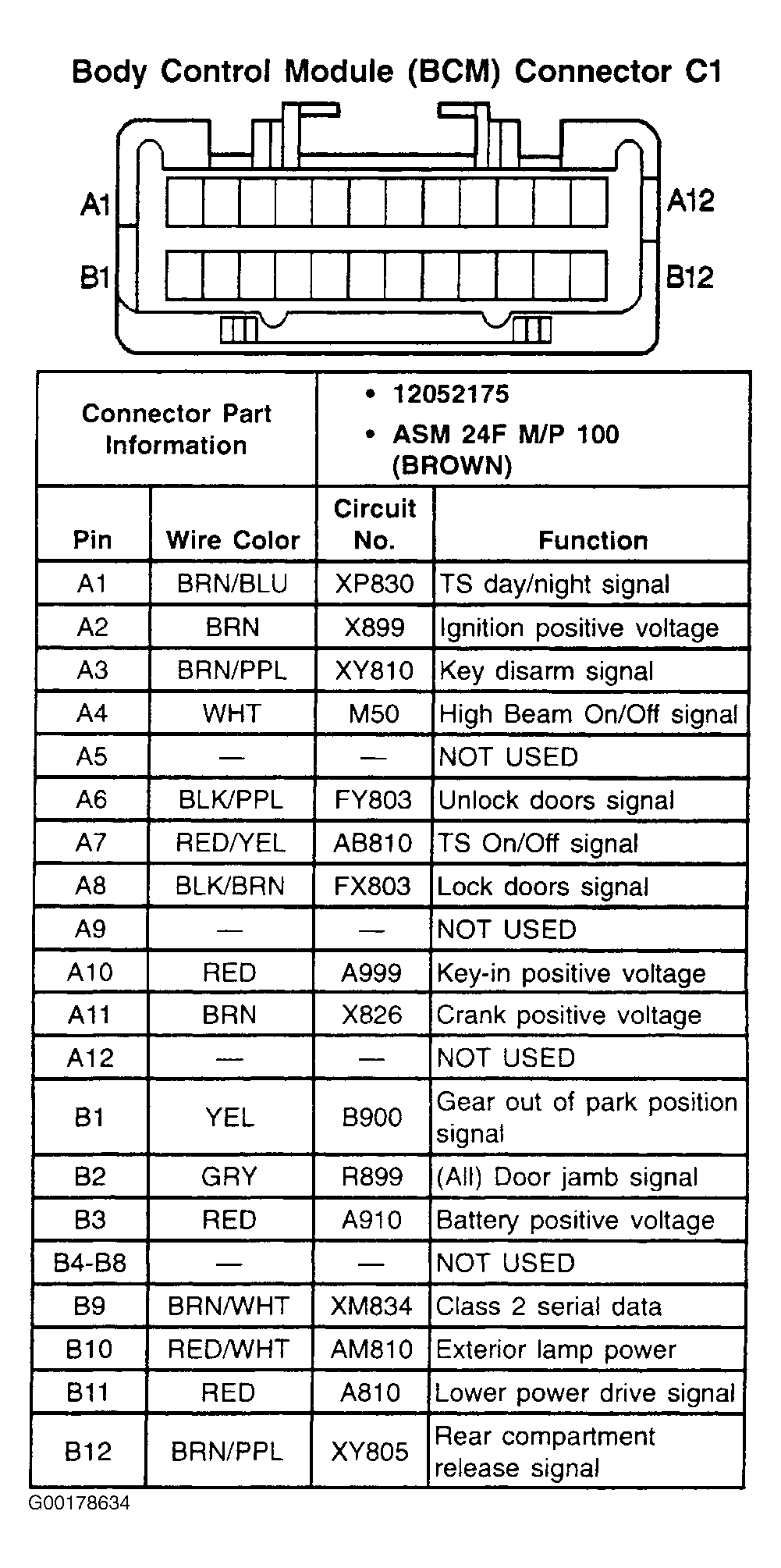

Fig 1: Body Control Module (BCM) Connector C1 - 24-Pin Connector (Brown)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
