Cellular Telephone (Base System)
Download the full database via torrent (~1.1 TB)

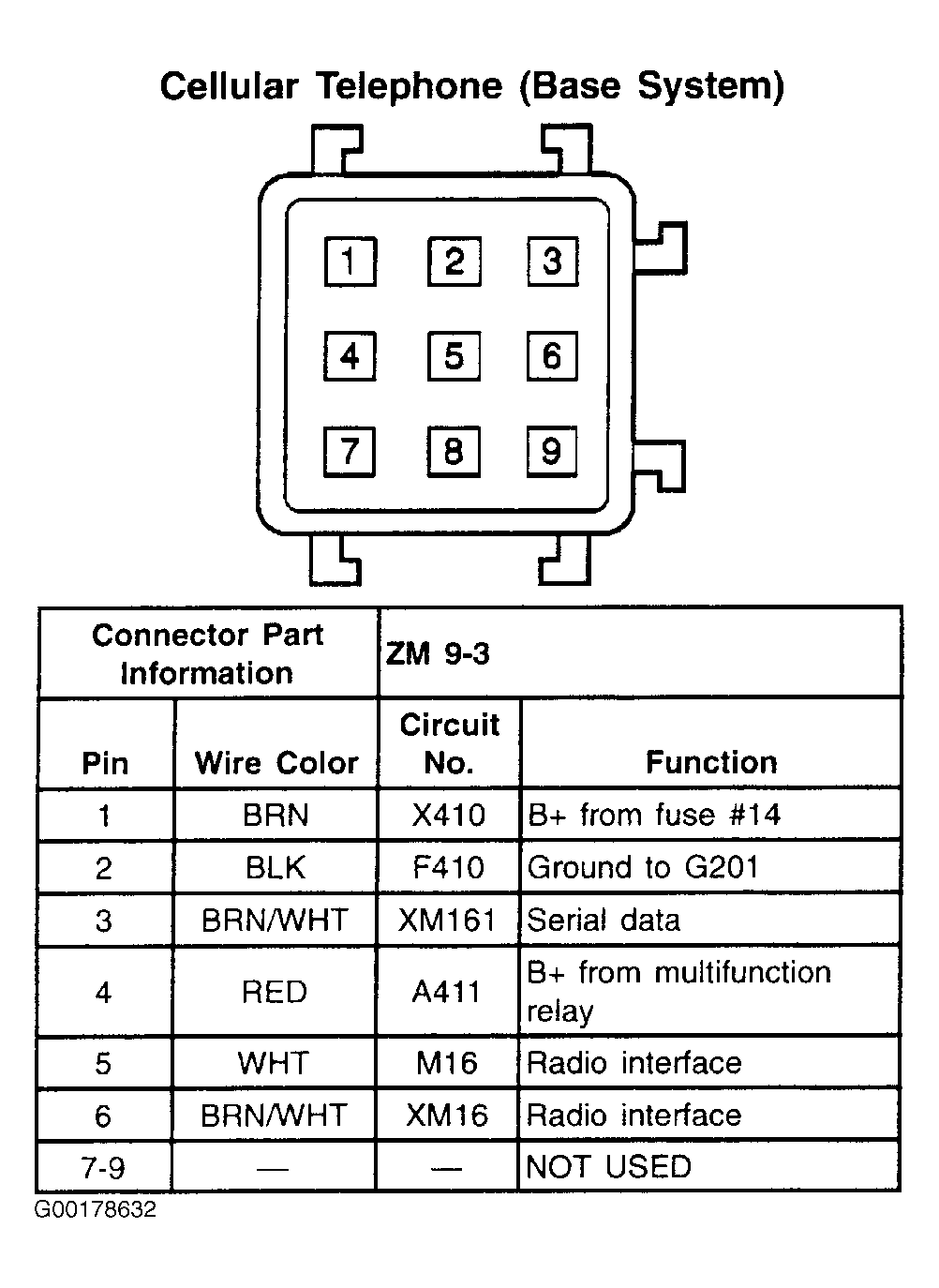

Fig 1: Cellular Telephone (Base System) - 9-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
