Connector Terminal Identification
>>
Engine Controls
>>
Intake Plenum Switch-Over Solenoid Valve
Intake Plenum Switch-Over Solenoid Valve
Download the full database via torrent (~1.1 TB)

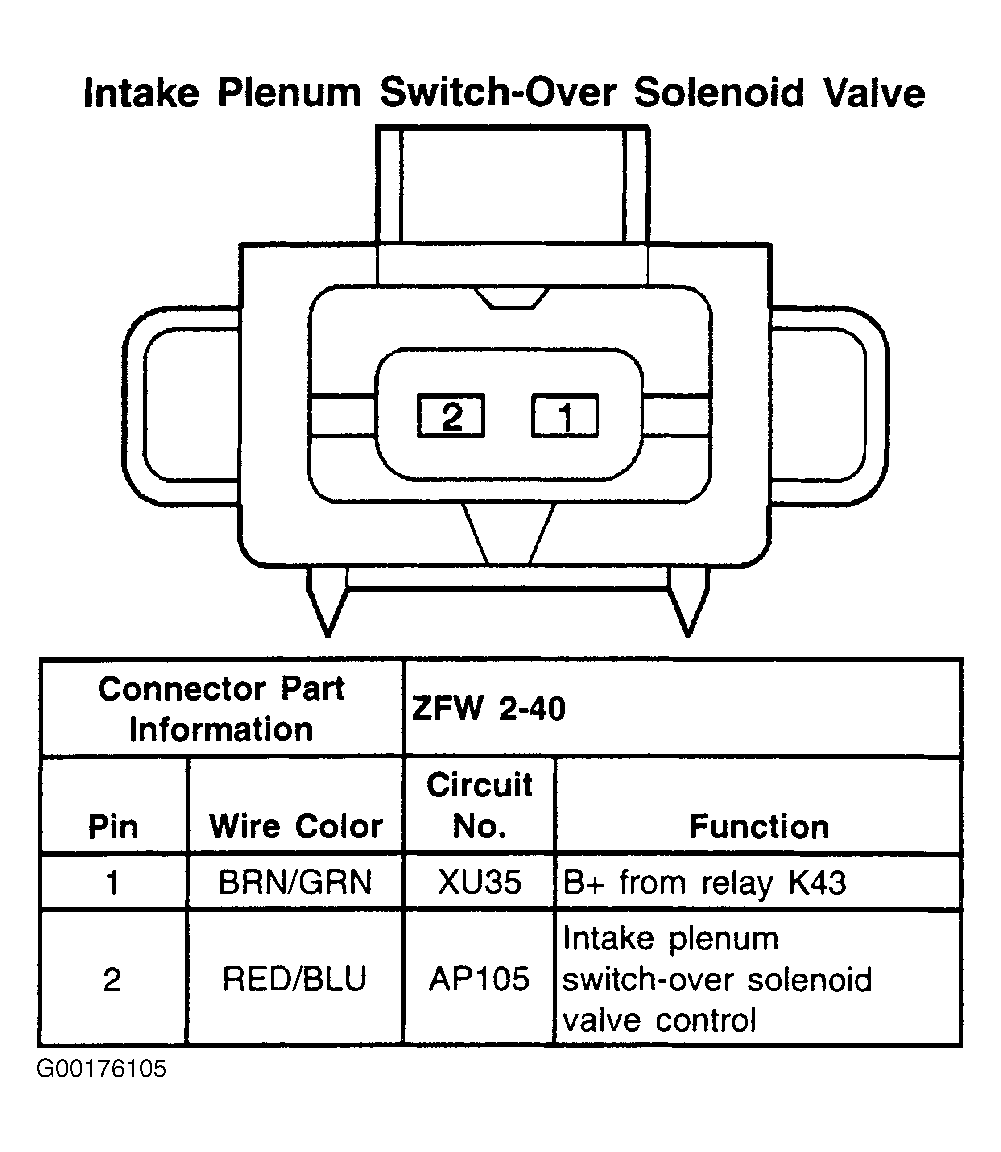

Fig 1: Intake Plenum Switch-Over Solenoid Valve - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
