Connector Terminal Identification: Abs: Abs/TCS
Download the full database via torrent (~1.1 TB)

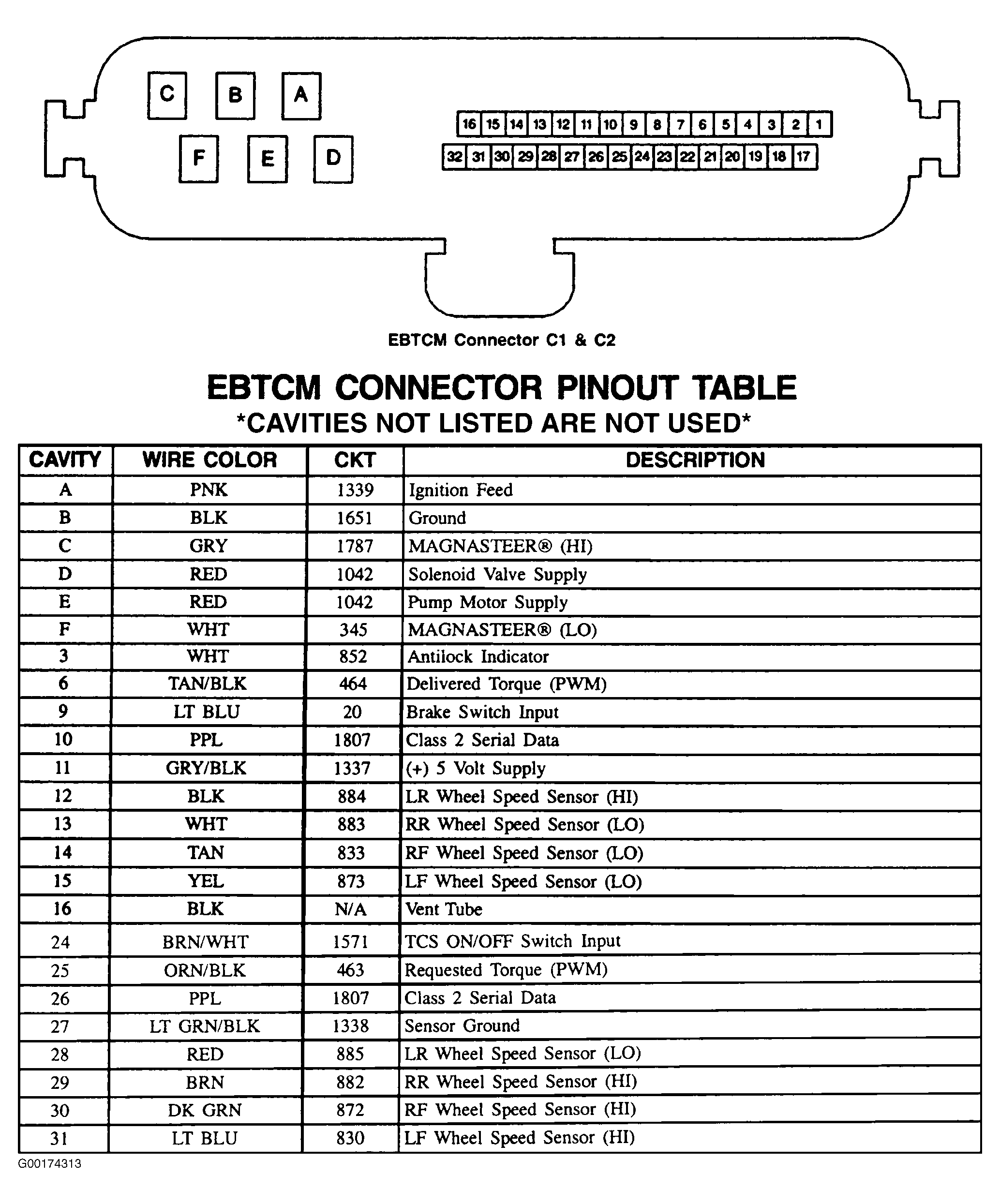

Fig 1: ABS/TCS (EBTCM Connector C1 & C2) - 37-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
