Connector Terminal Identification
>>
Cellular Telephone
>>
Cellular Telephone Module
Cellular Telephone Module
Download the full database via torrent (~1.1 TB)

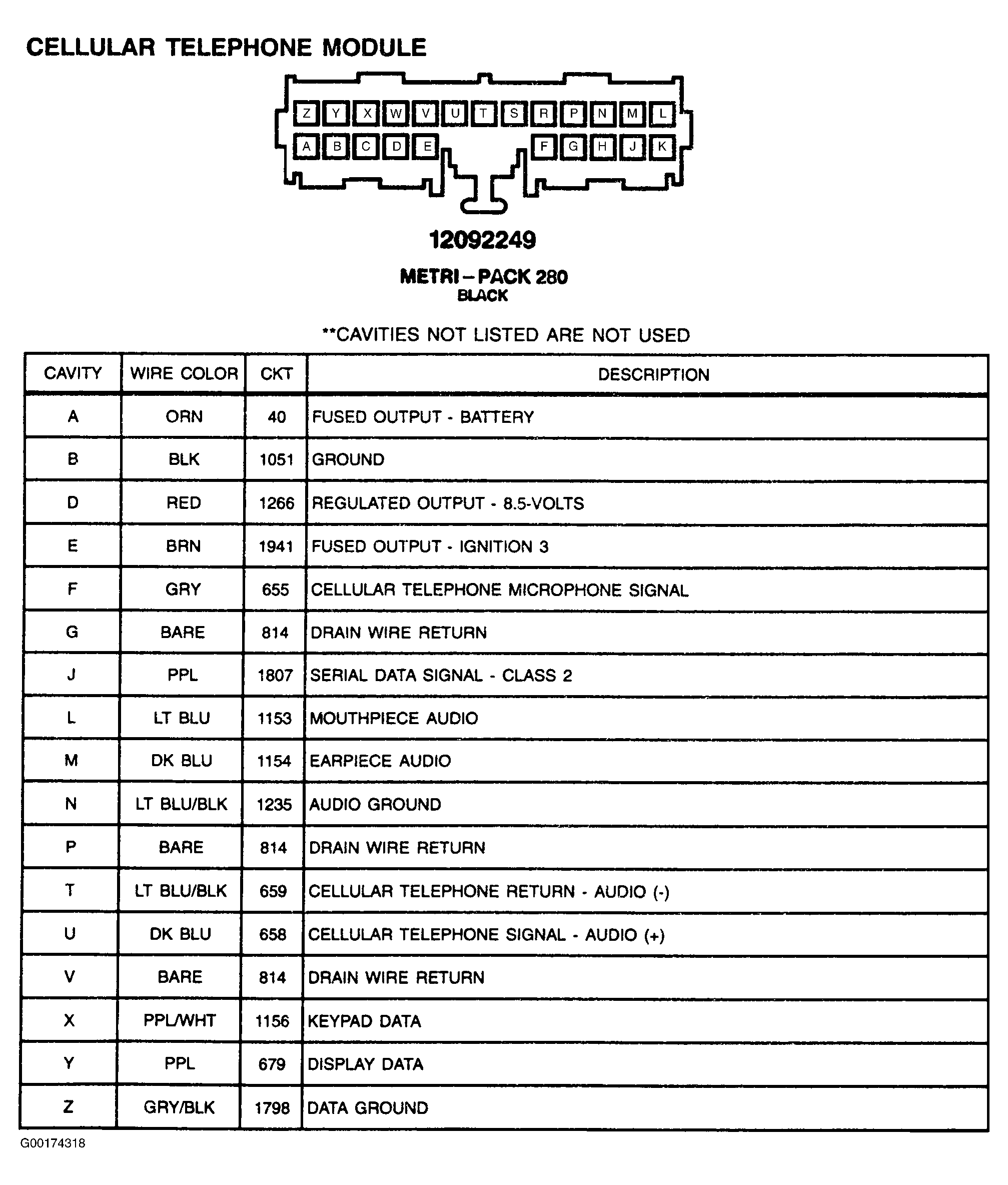

Fig 1: Cellular Telephone Module - 23-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
