Home
>>
Cadillac
>>
1997
>>
DeVille Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
Cruise Control Module
Cruise Control Module
Download the full database via torrent (~1.1 TB)

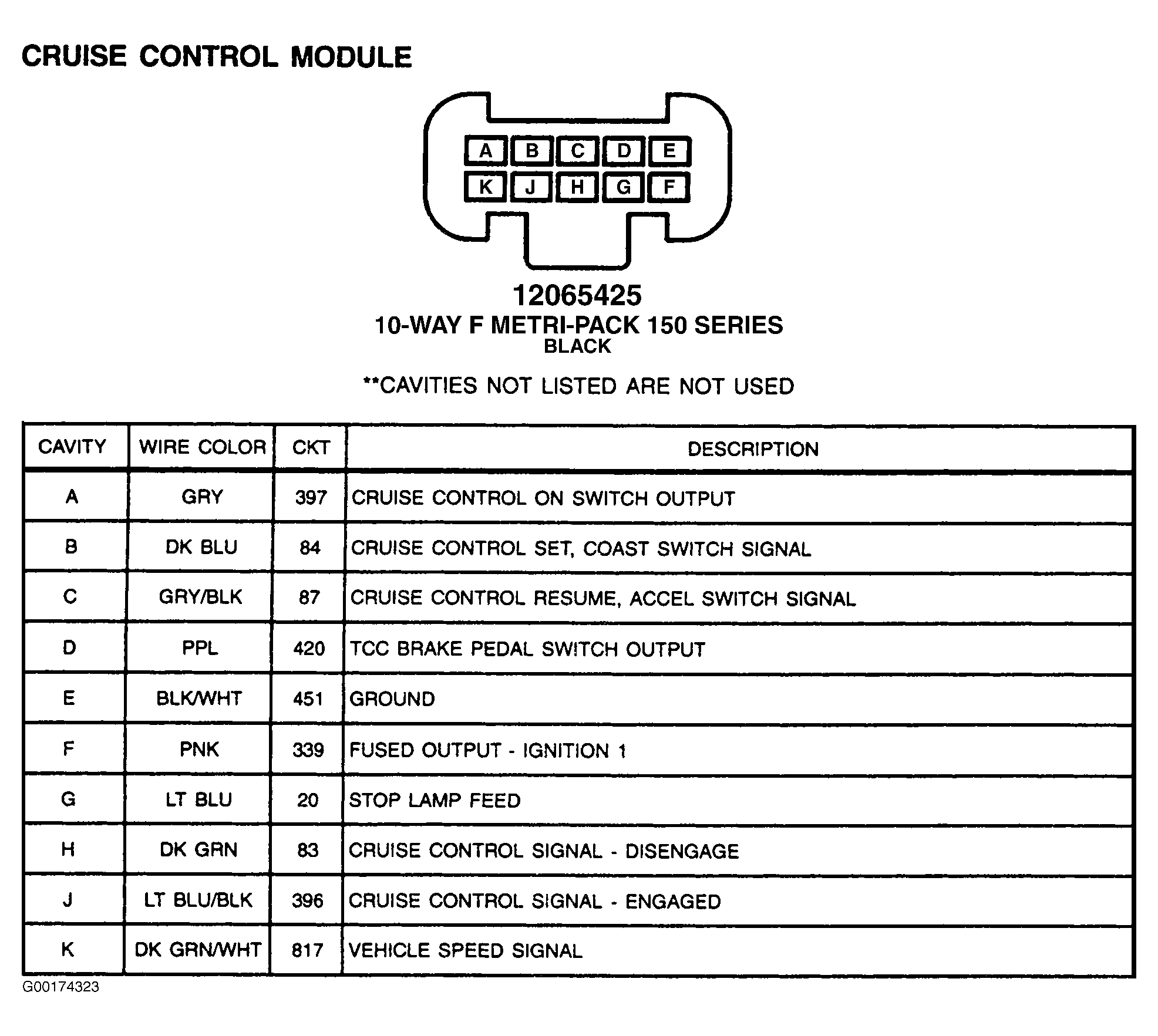

Fig 1: Cruise Control Module - 10-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
