Connector Identification

Download the full database via torrent (~1.1 TB)

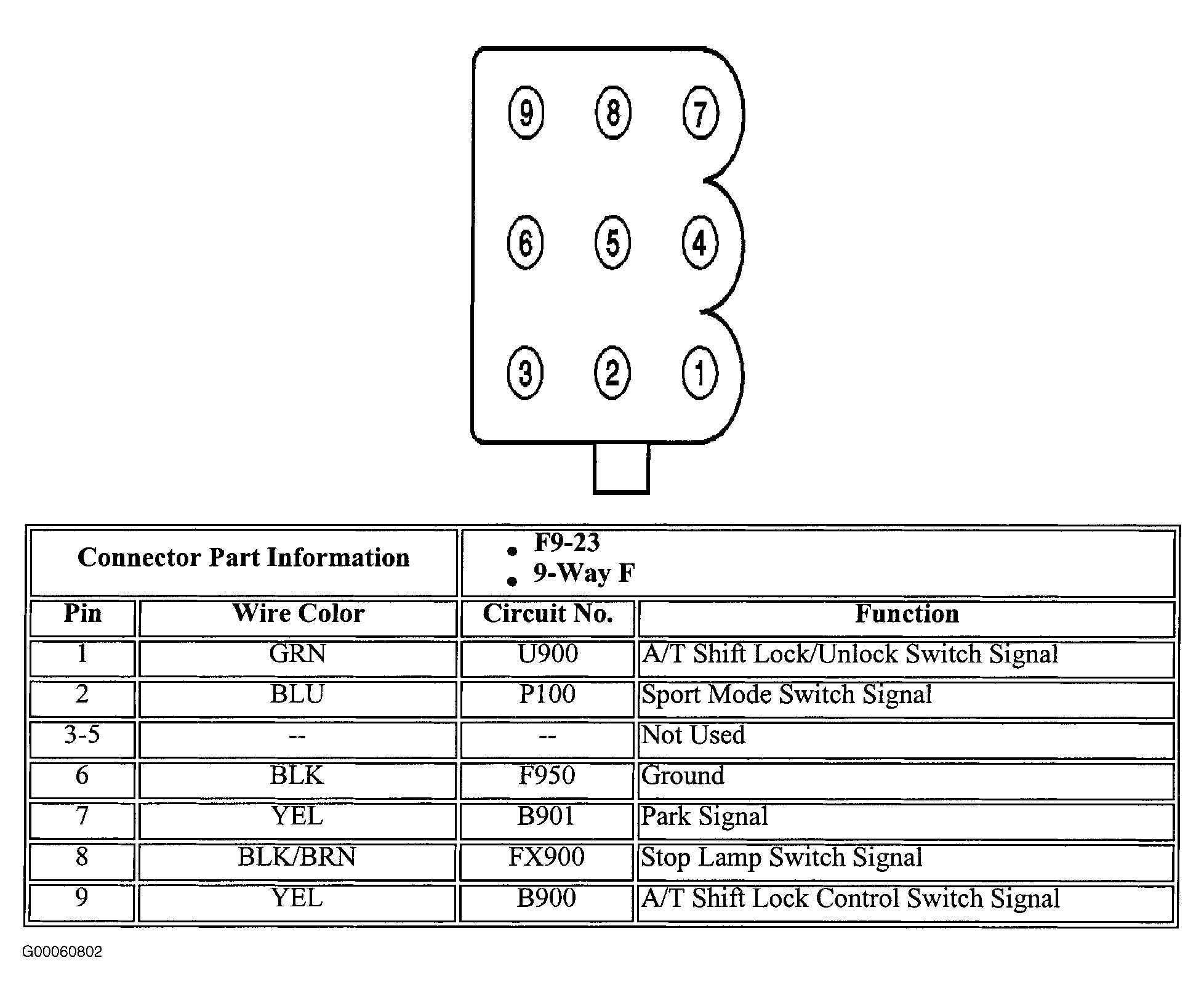

Fig 1: Identifying A/T Shift Lever Connector Terminals
G00060802Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Stoplamp Switch Connector Terminals
G00060791Courtesy of GENERAL MOTORS CORP.
