Installation Procedure

Download the full database via torrent (~1.1 TB)

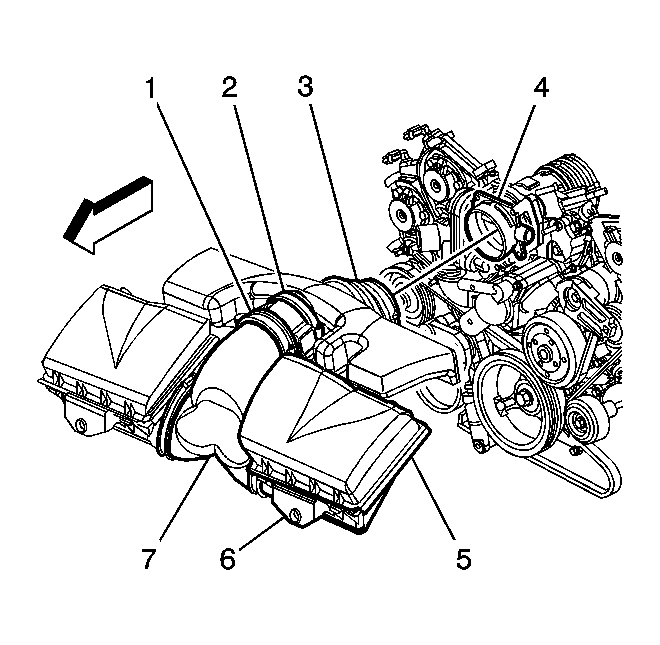

    Fig 1: View Of Air Cleaner Assembly
    GM931697Courtesy of GENERAL MOTORS CORP.
  1. Install the air filter element into the air cleaner housing.
  2. Secure the air cleaner housing cover.
  3. Secure the retainer latches.
