Cadillac
>>
2009
>>
Escalade EXT
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic and Routing Diagrams
>>
Body Control System Schematics
Body Control System Schematics
Download the full database via torrent (~1.1 TB)

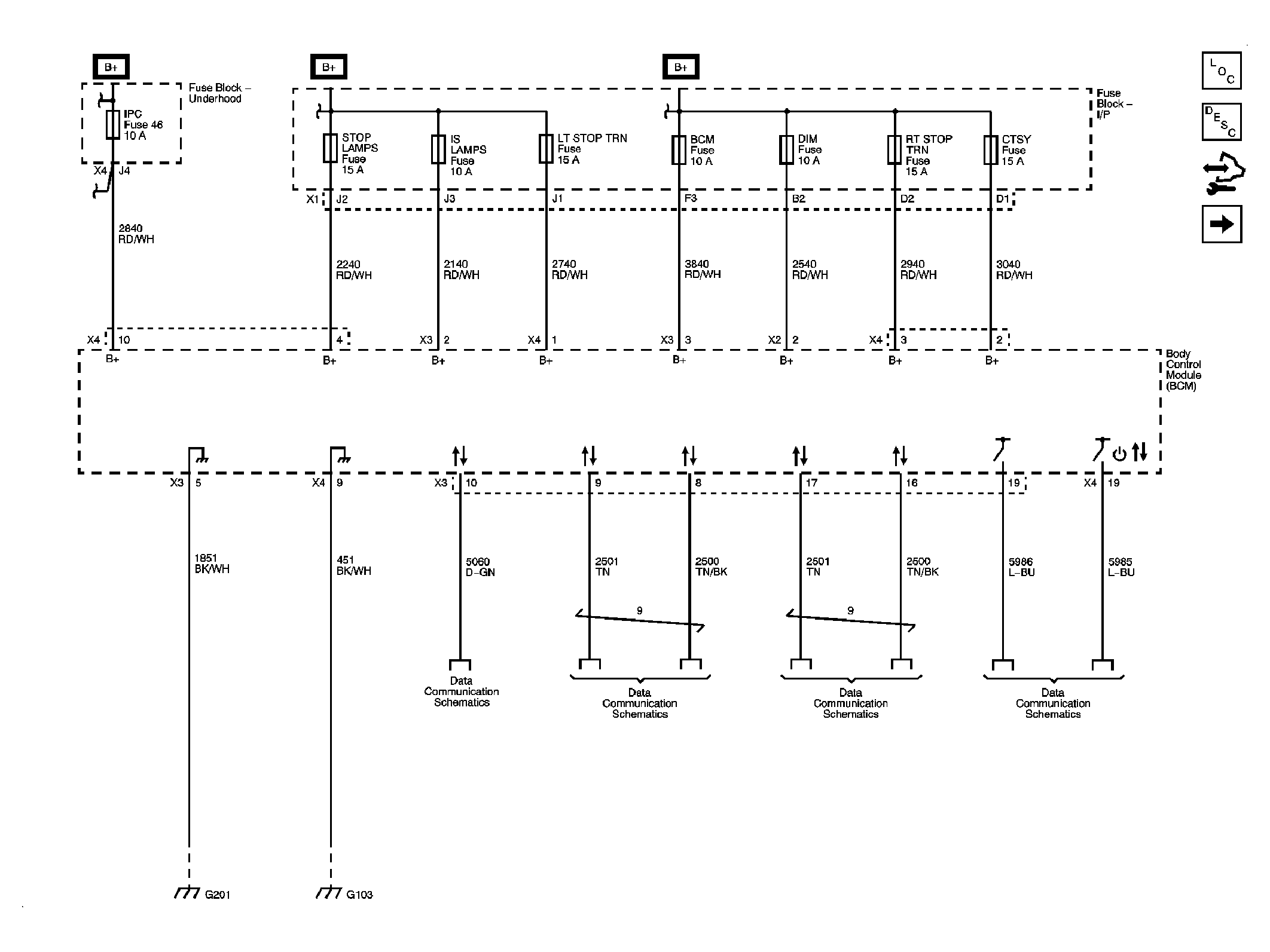

Fig 1: Module Power, Ground, and Serial Data
Courtesy of GENERAL MOTORS CORP.

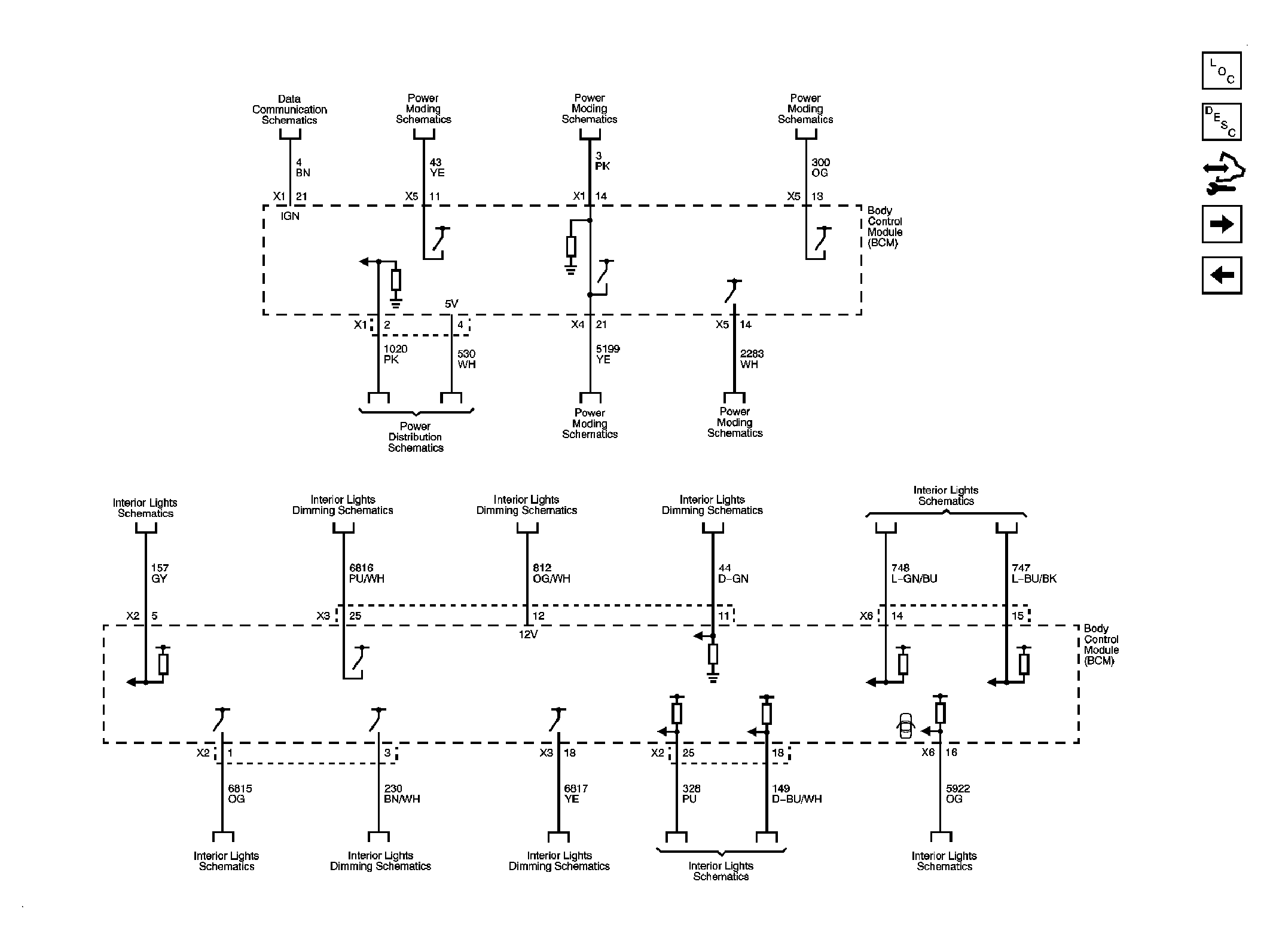

Fig 2: Power Moding and Interior Light References
Courtesy of GENERAL MOTORS CORP.

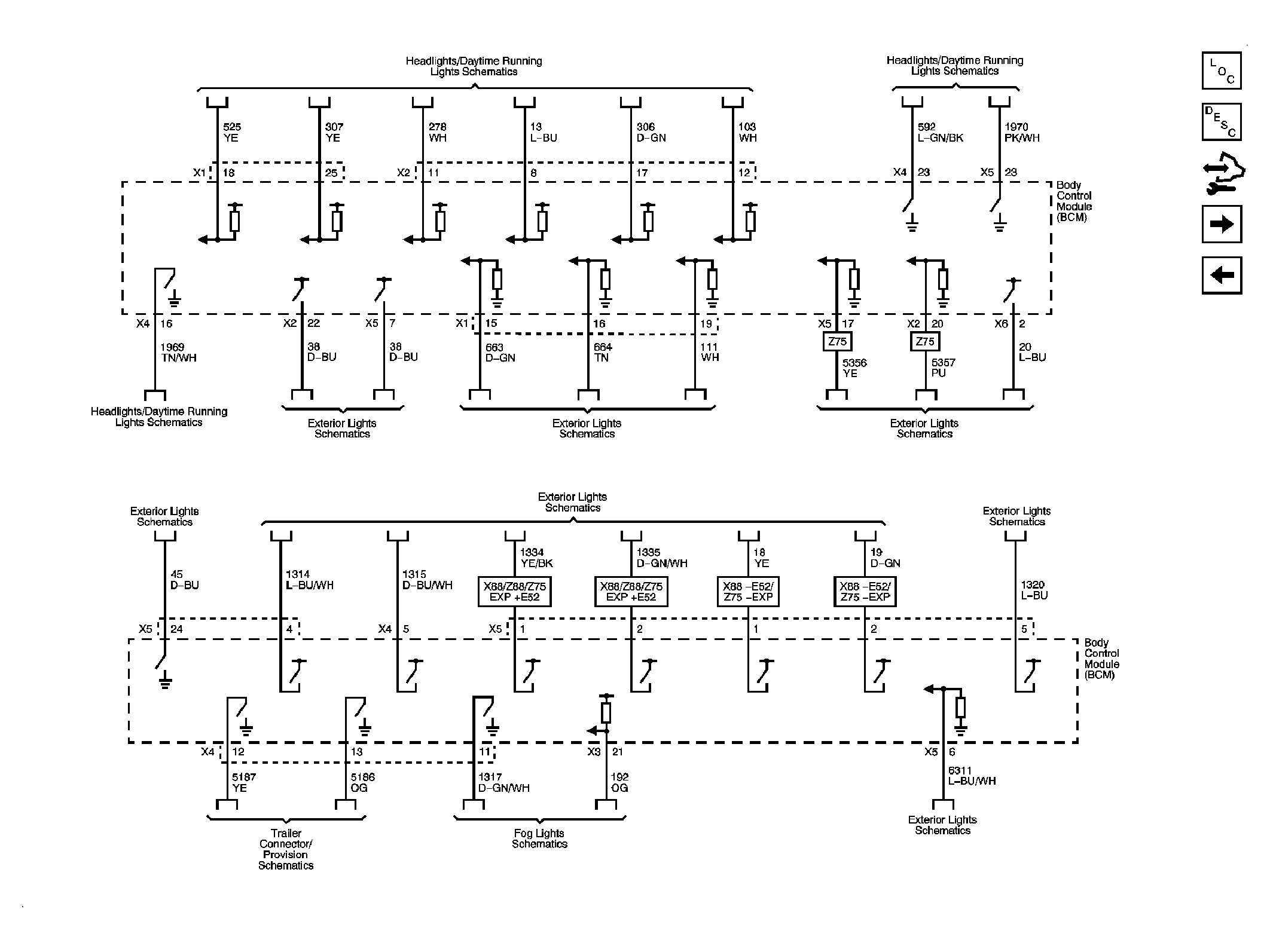

Fig 3: Exterior Light References
Courtesy of GENERAL MOTORS CORP.

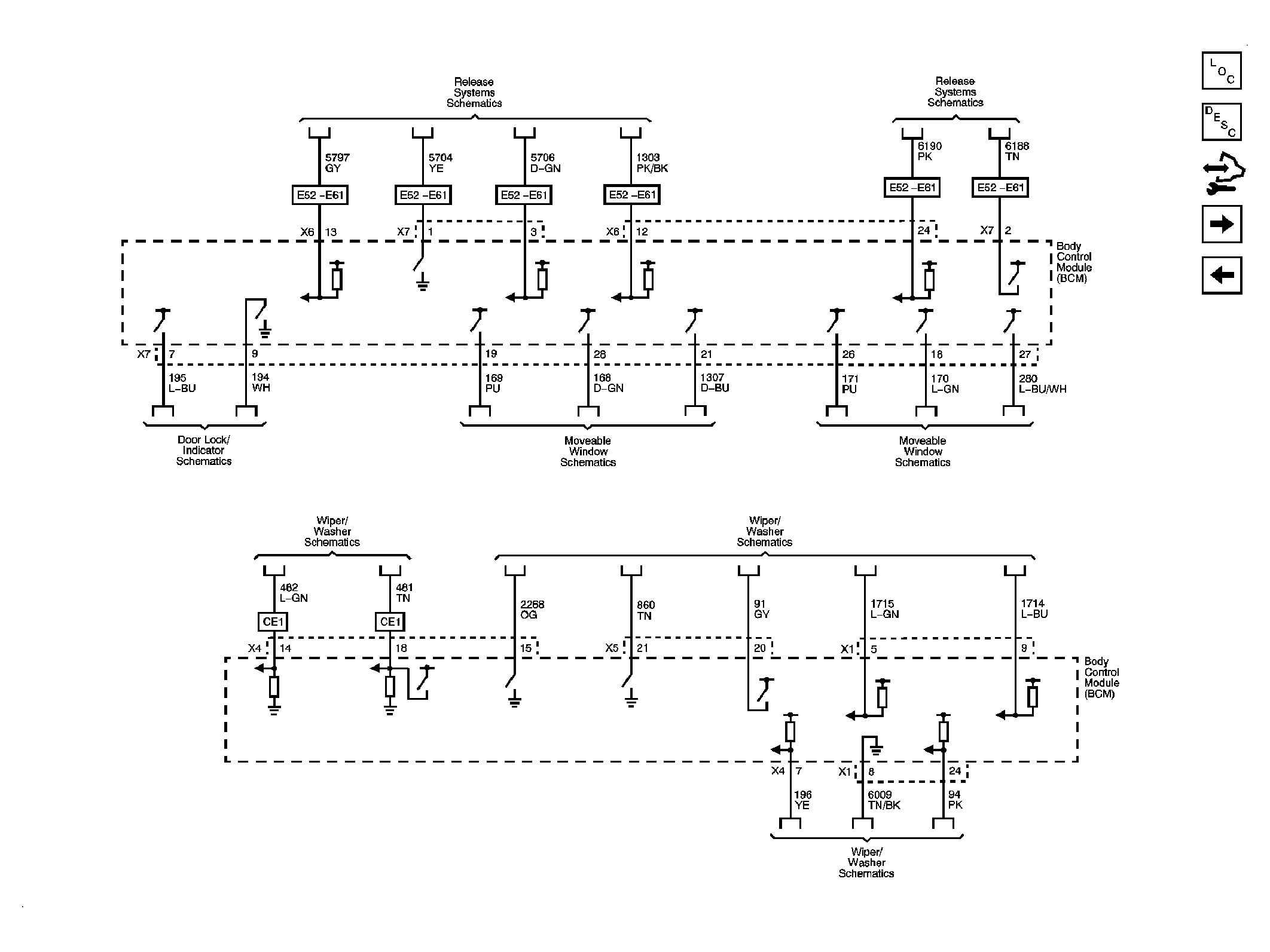

Fig 4: Vehicle Access and Wiper References
Courtesy of GENERAL MOTORS CORP.

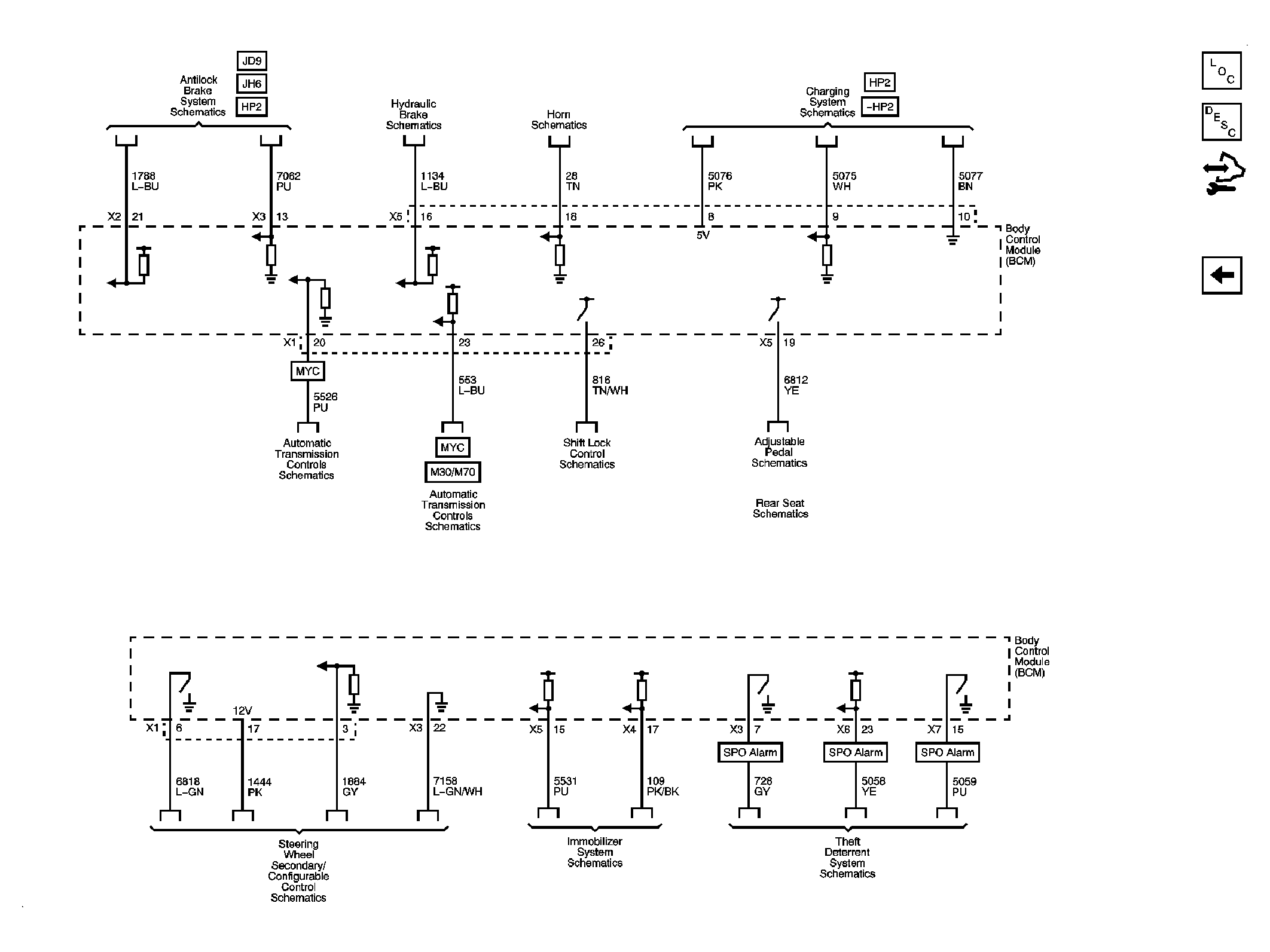

Fig 5: Brake, Horn, Transmission, Theft, and Secondary Configurable Control References
Courtesy of GENERAL MOTORS CORP.
