Body Control System Schematics
Download the full database via torrent (~1.1 TB)

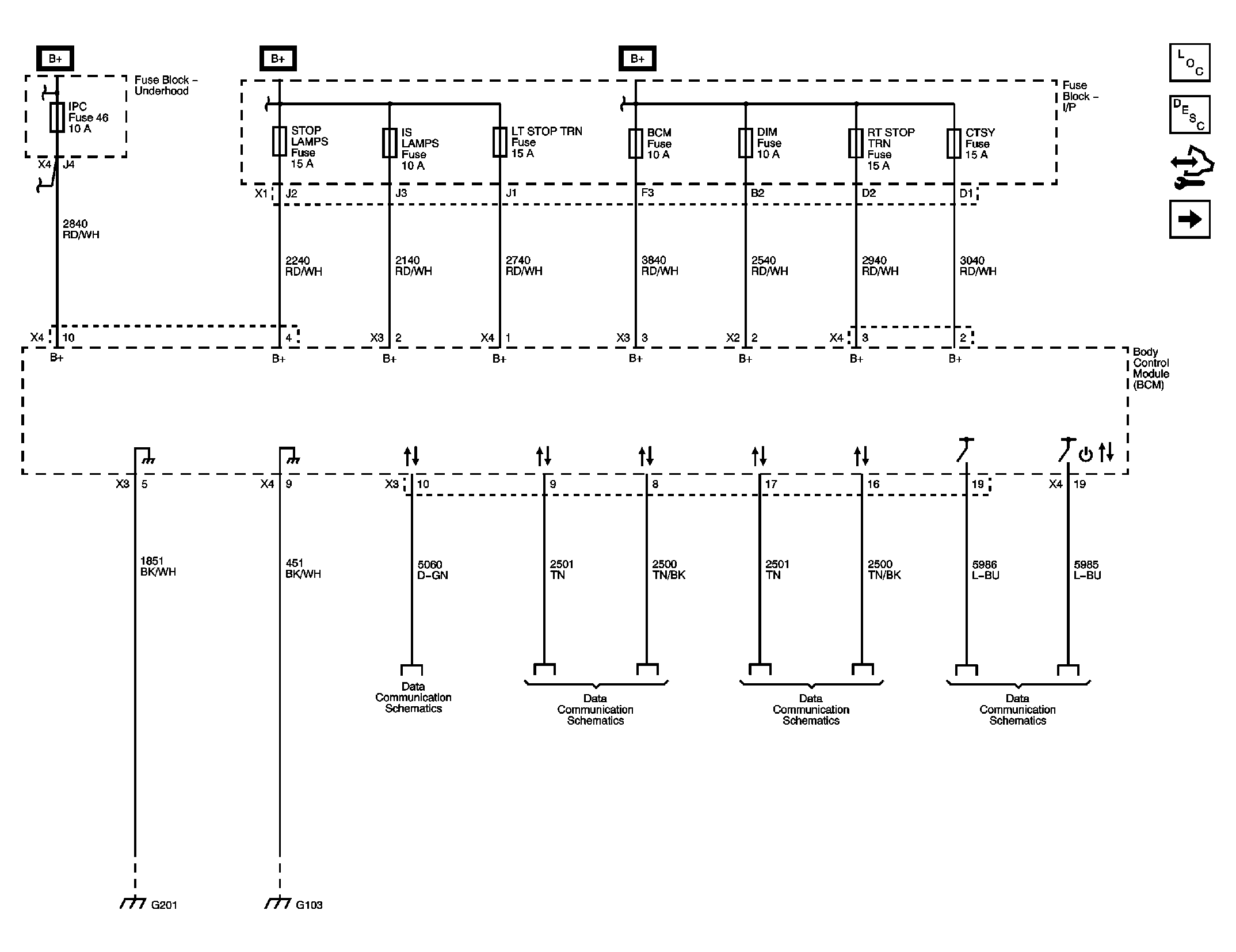

Fig 1: Module Power, Ground, and Serial Data
Courtesy of GENERAL MOTORS CORP.

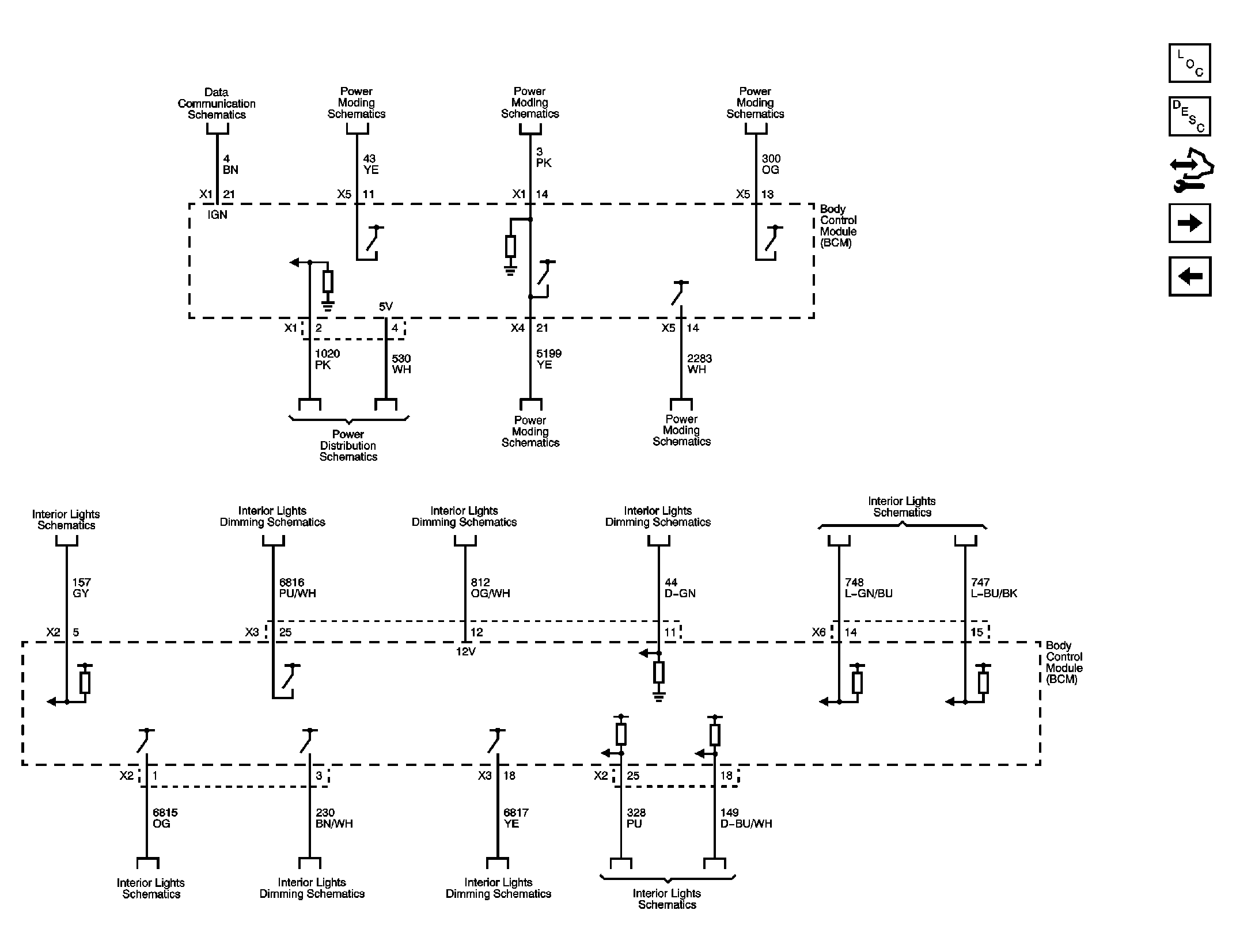

Fig 2: Power Moding and Interior Light References
Courtesy of GENERAL MOTORS CORP.

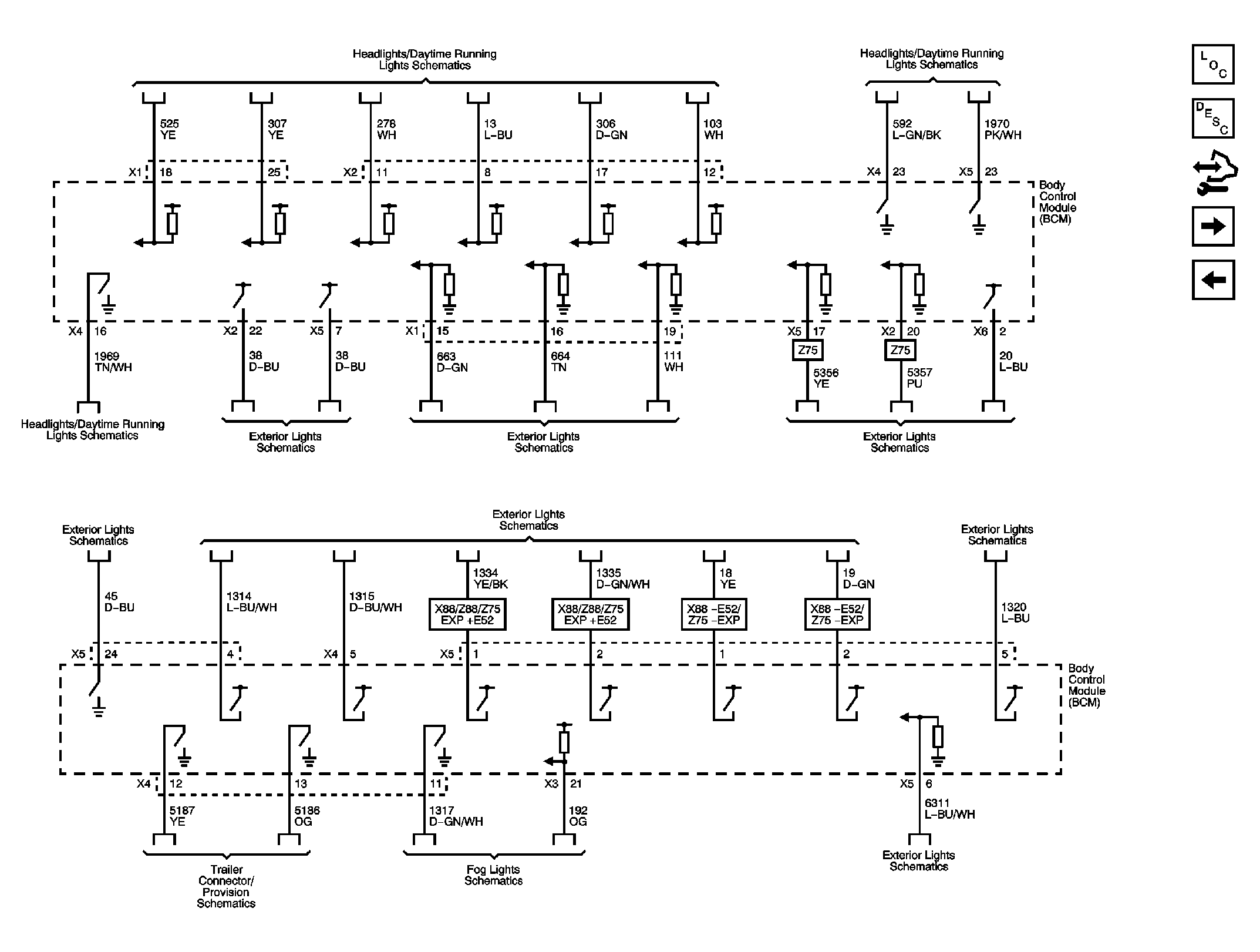

Fig 3: Exterior Light References
Courtesy of GENERAL MOTORS CORP.

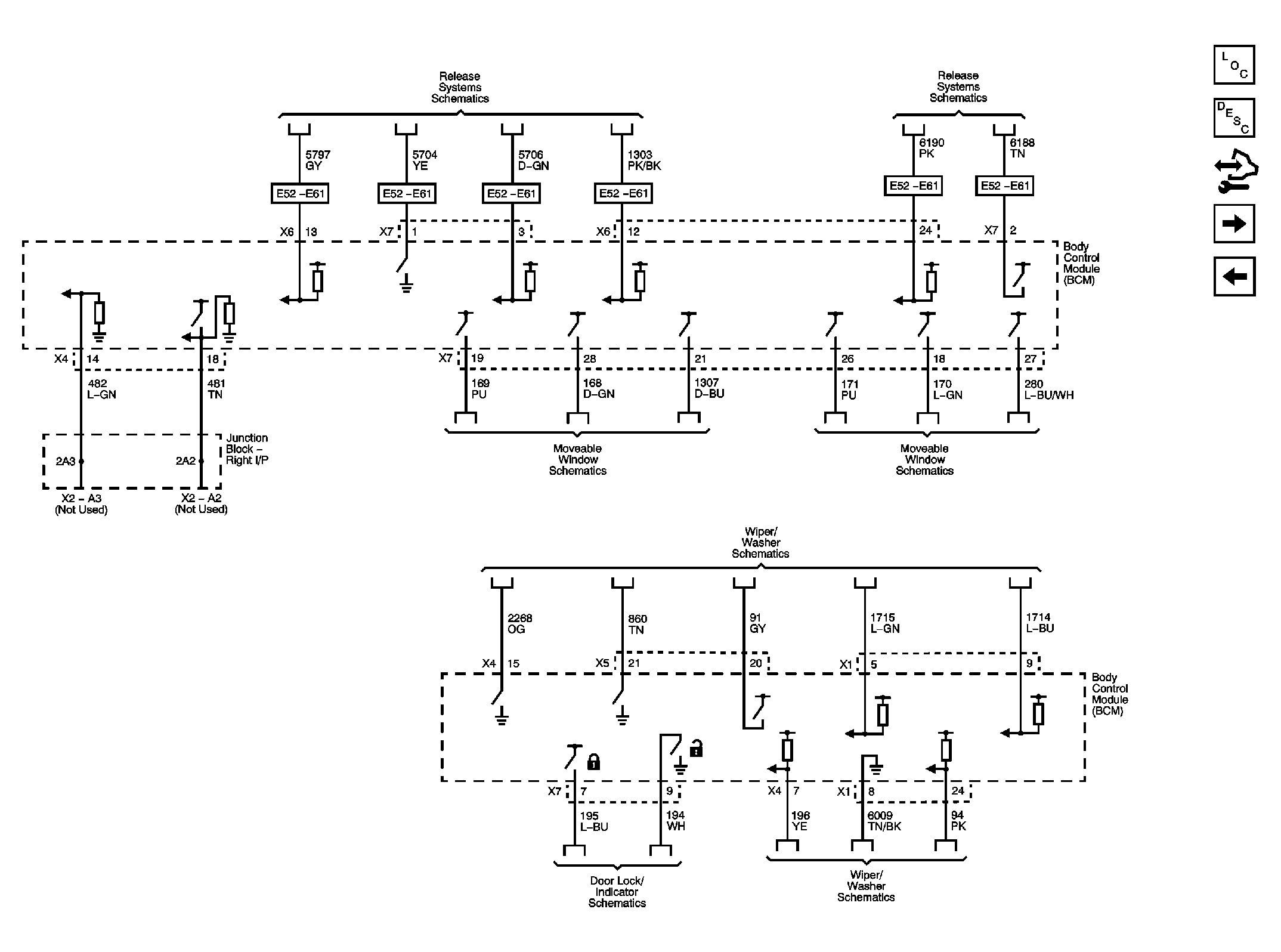

Fig 4: Vehicle Access and Wiper References
Courtesy of GENERAL MOTORS CORP.

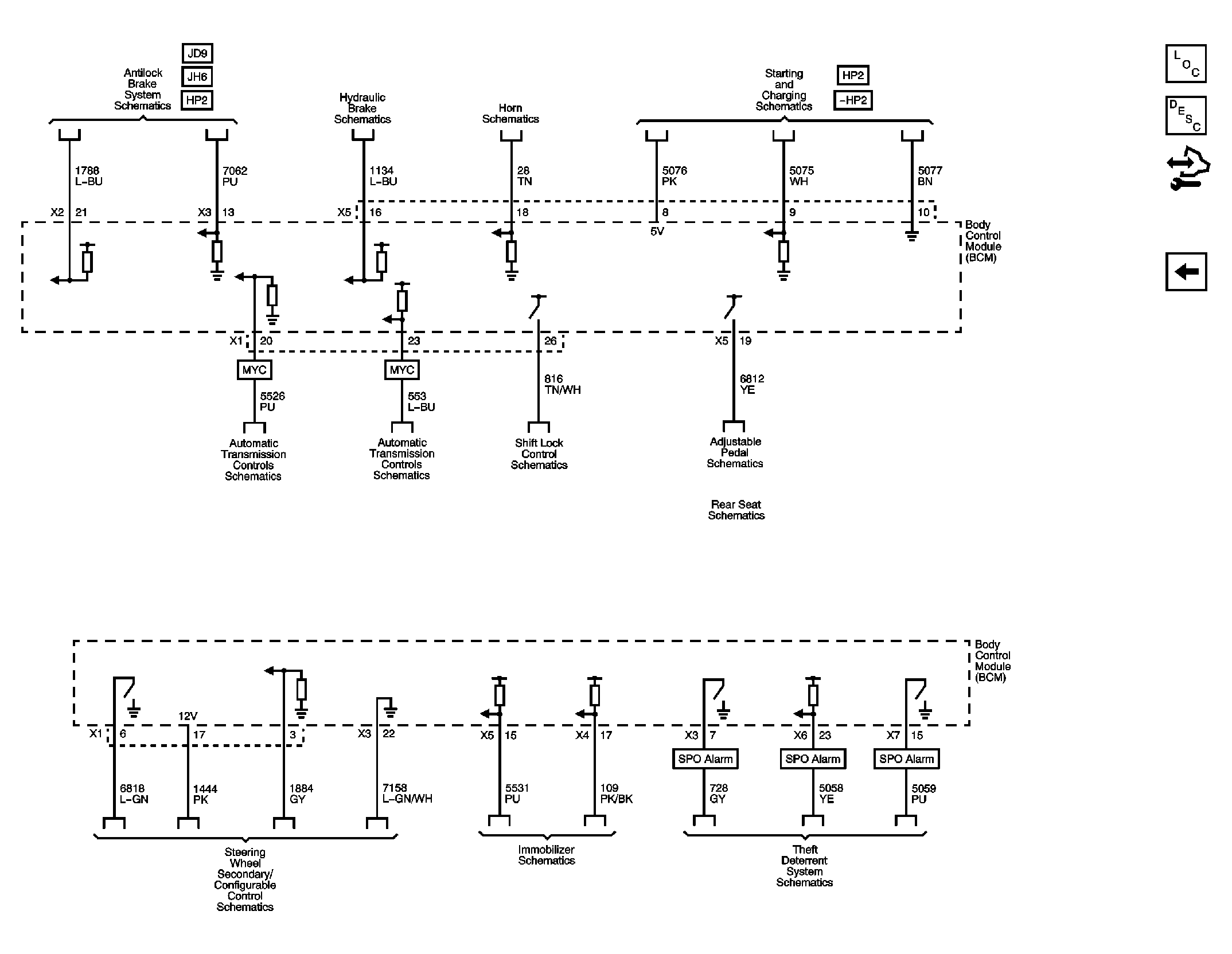

Fig 5: Brake, Horn, Transmission, Theft, and Secondary/Configurable Control References
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
