Module Power, Ground, and Serial Data
Download the full database via torrent (~1.1 TB)

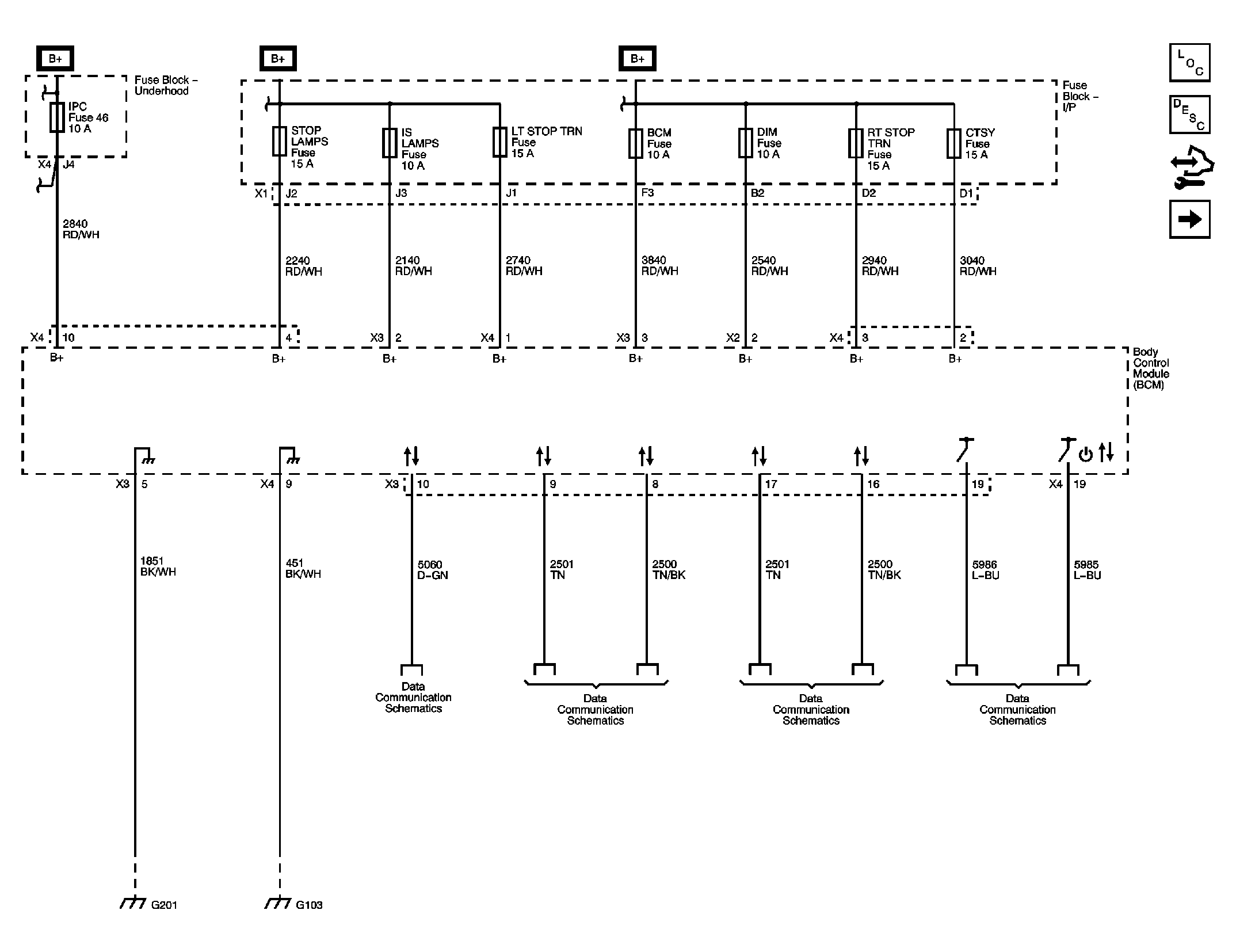

Fig 1: Module Power, Ground, and Serial Data Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
