Power Moding and Interior Light References
Download the full database via torrent (~1.1 TB)

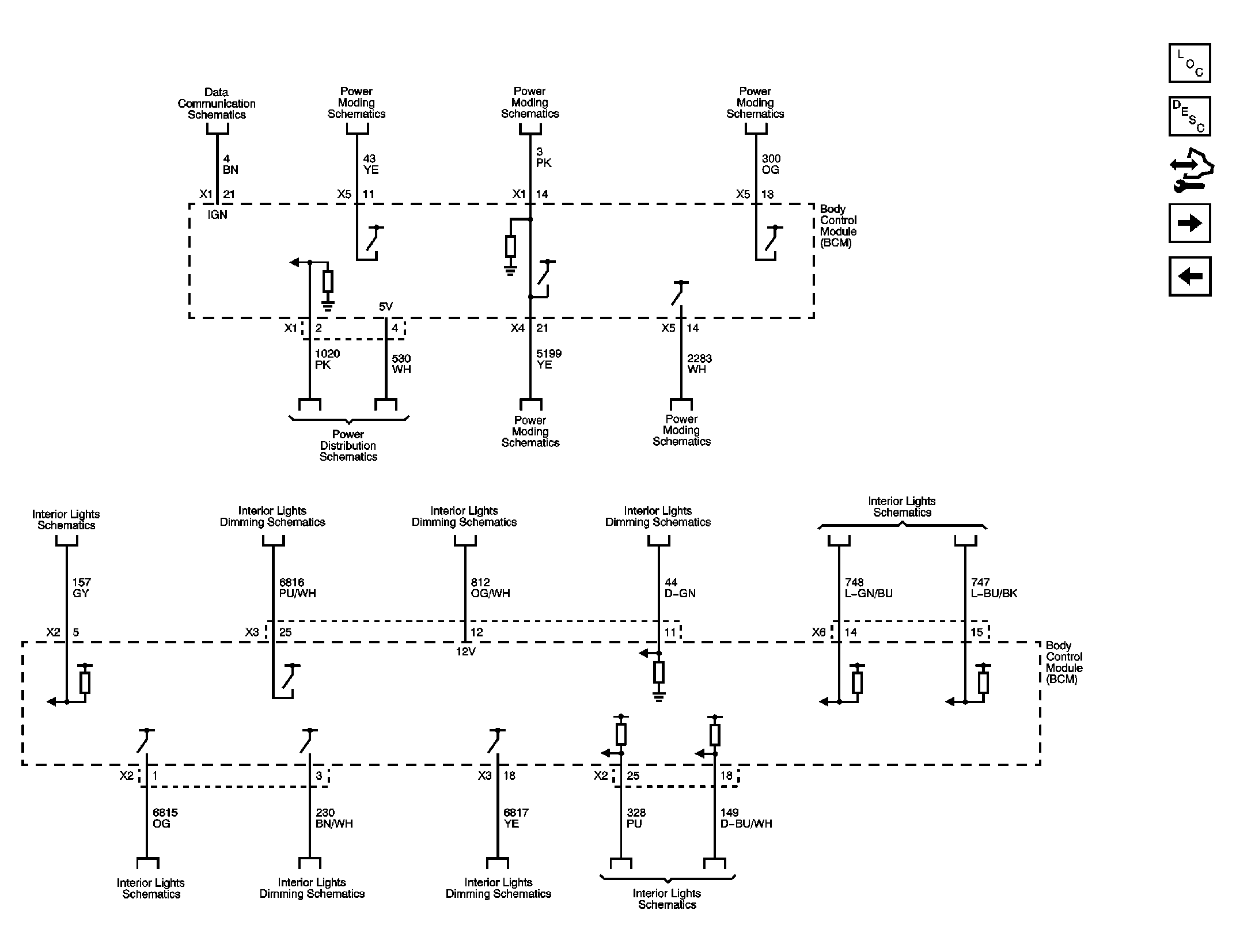

Fig 1: Power Moding and Interior Light References Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
