Serial Data Gateway Module (HP2)
Serial Data Gateway Module (HP2)
Download the full database via torrent (~1.1 TB)

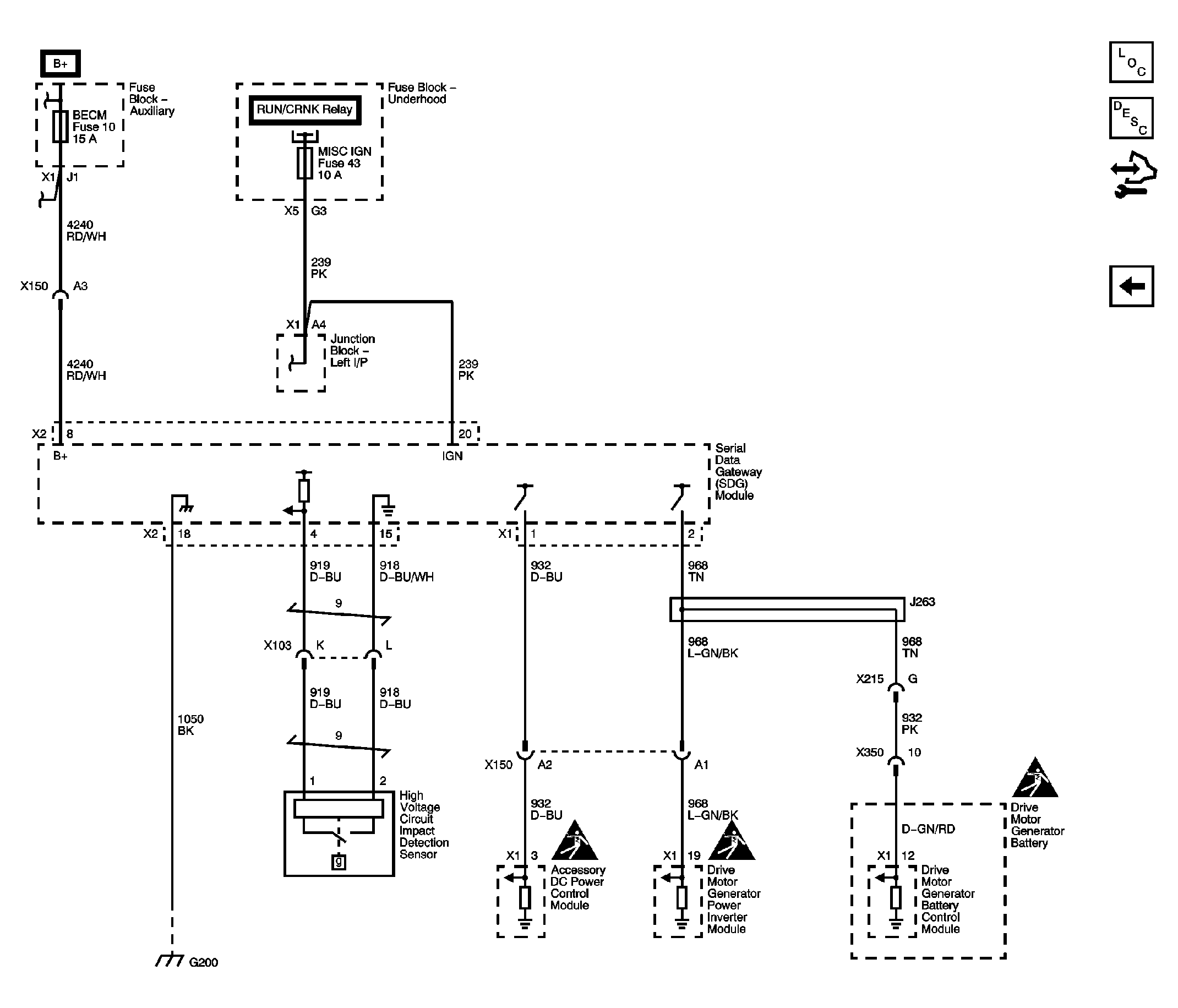

Fig 1: Serial Data Gateway Module (HP2) Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
