Blower Motor Relay
Download the full database via torrent (~1.1 TB)

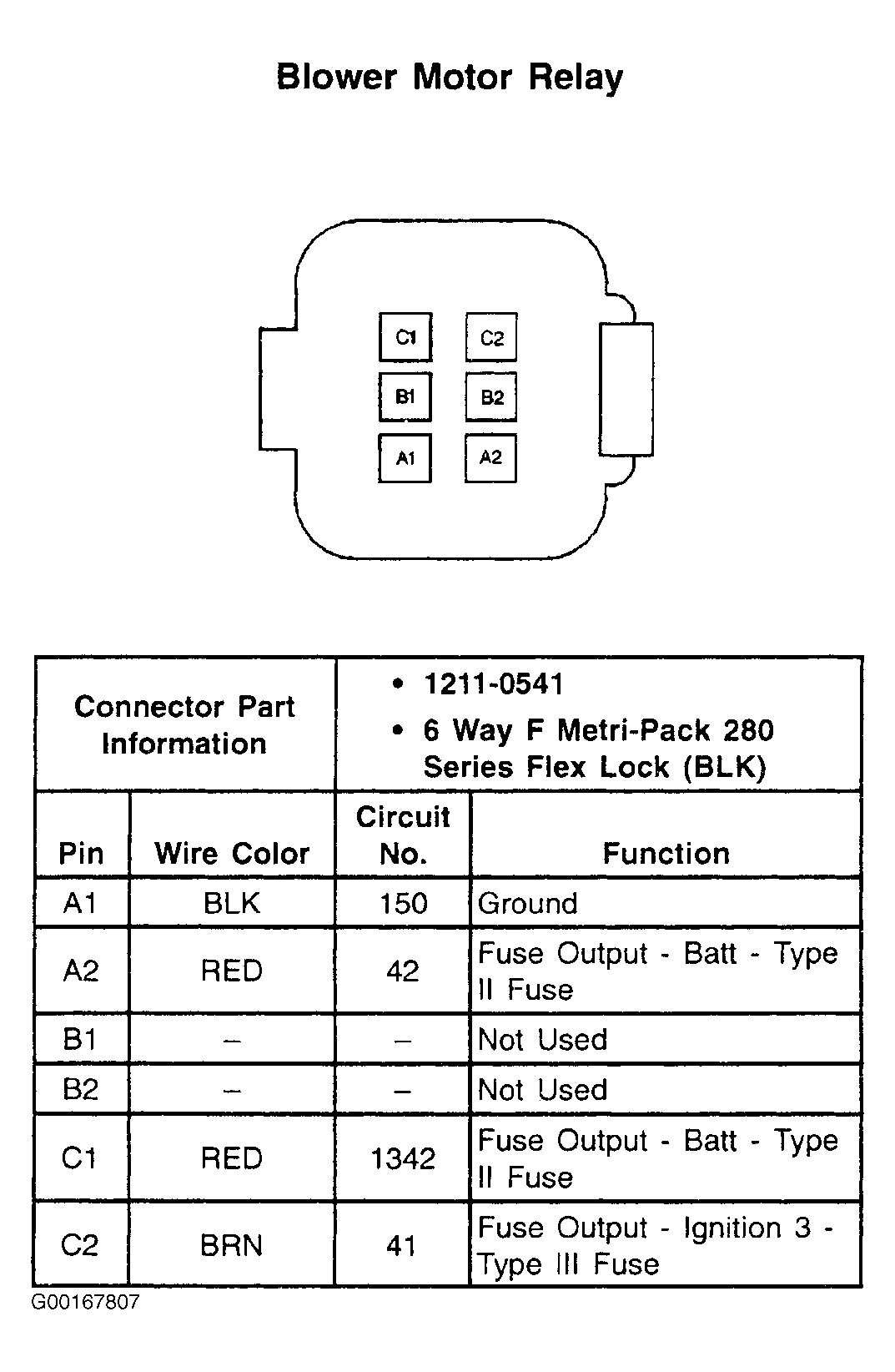

Fig 1: Blower Motor Relay - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
