Connector Terminal Identification
>>
Compact Disk Player
Compact Disk Player
Download the full database via torrent (~1.1 TB)

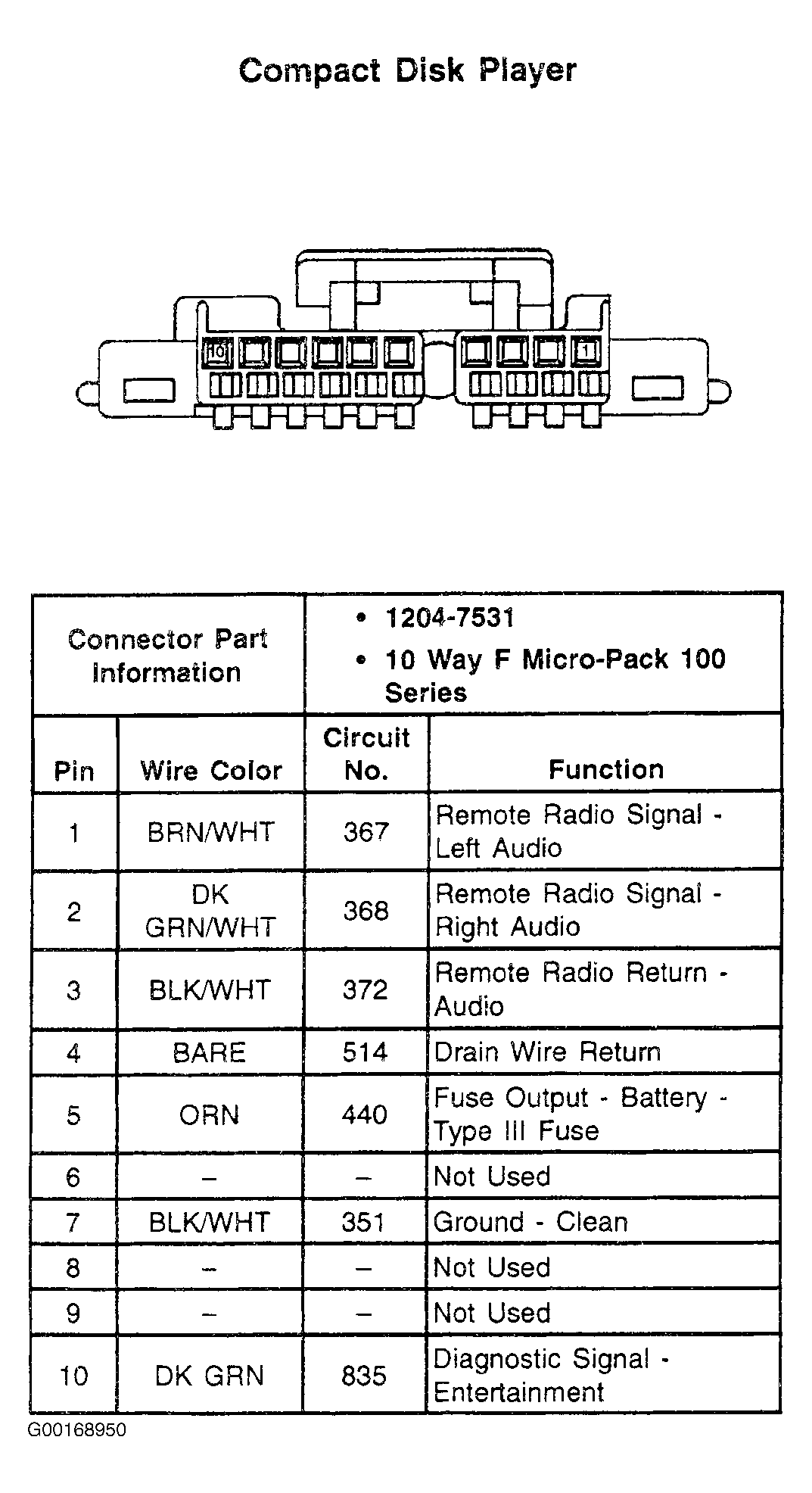

Fig 1: Compact Disk Player - 10-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
