Engine Oil Pressure Sensor
Download the full database via torrent (~1.1 TB)

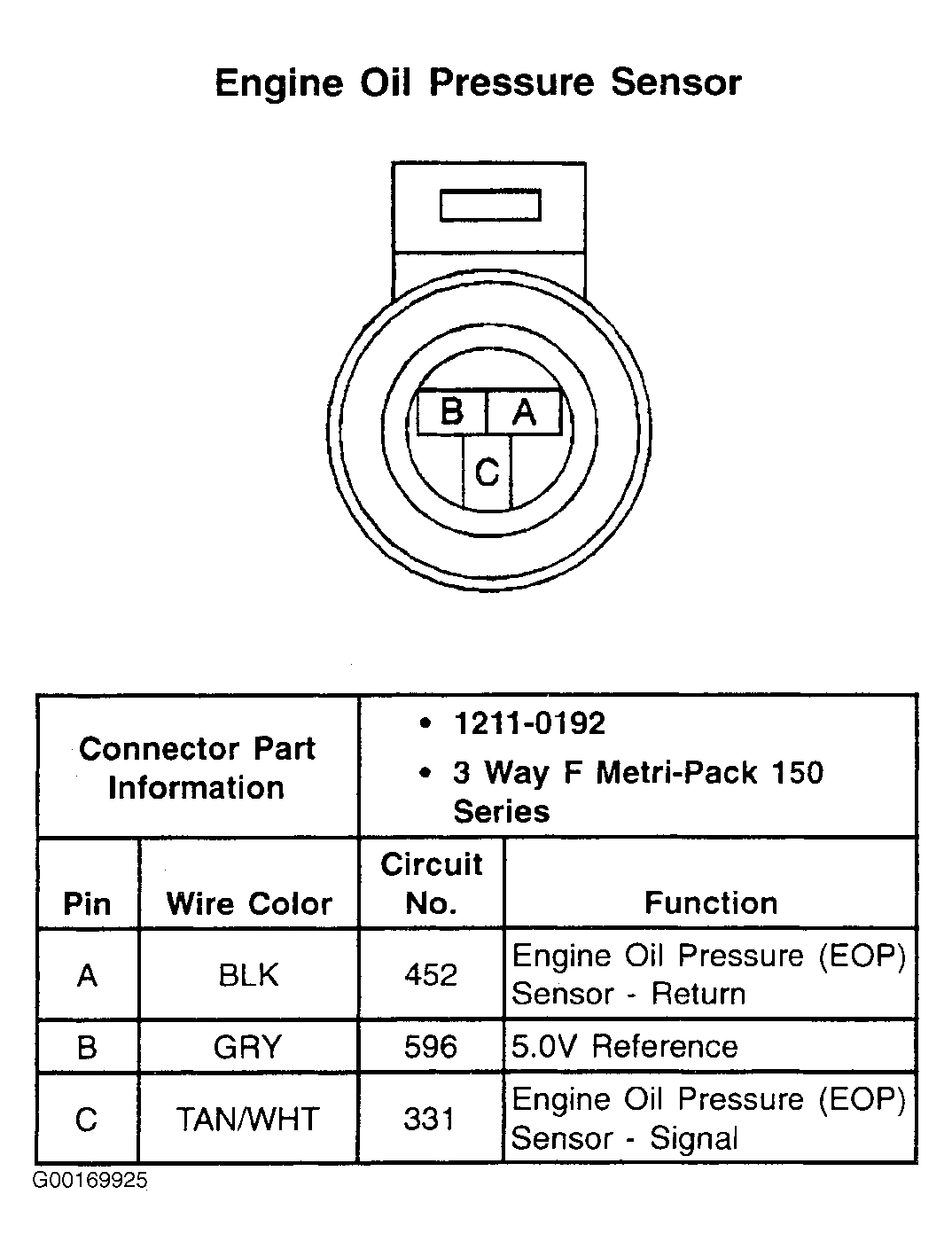

Fig 1: Engine Oil Pressure Sensor - 3-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
