Connector Terminal Identification
>>
Inflatable Restraint Instrument Panel Module
Inflatable Restraint Instrument Panel Module
Download the full database via torrent (~1.1 TB)

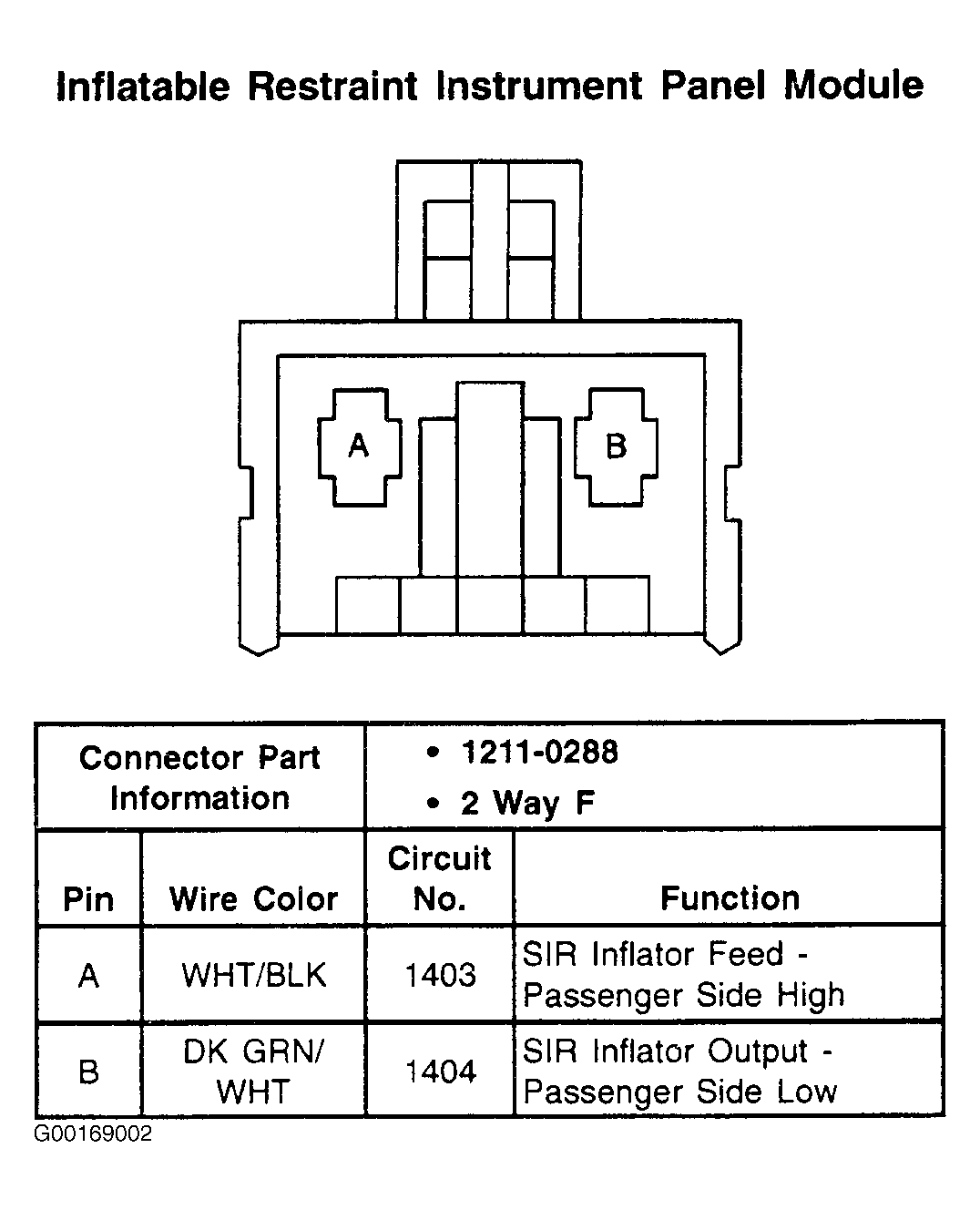

Fig 1: Inflatable Restraint Instrument Panel Module - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
