Auto Level Control (ALC) Air Compressor
Auto Level Control (ALC) Air Compressor
Download the full database via torrent (~1.1 TB)

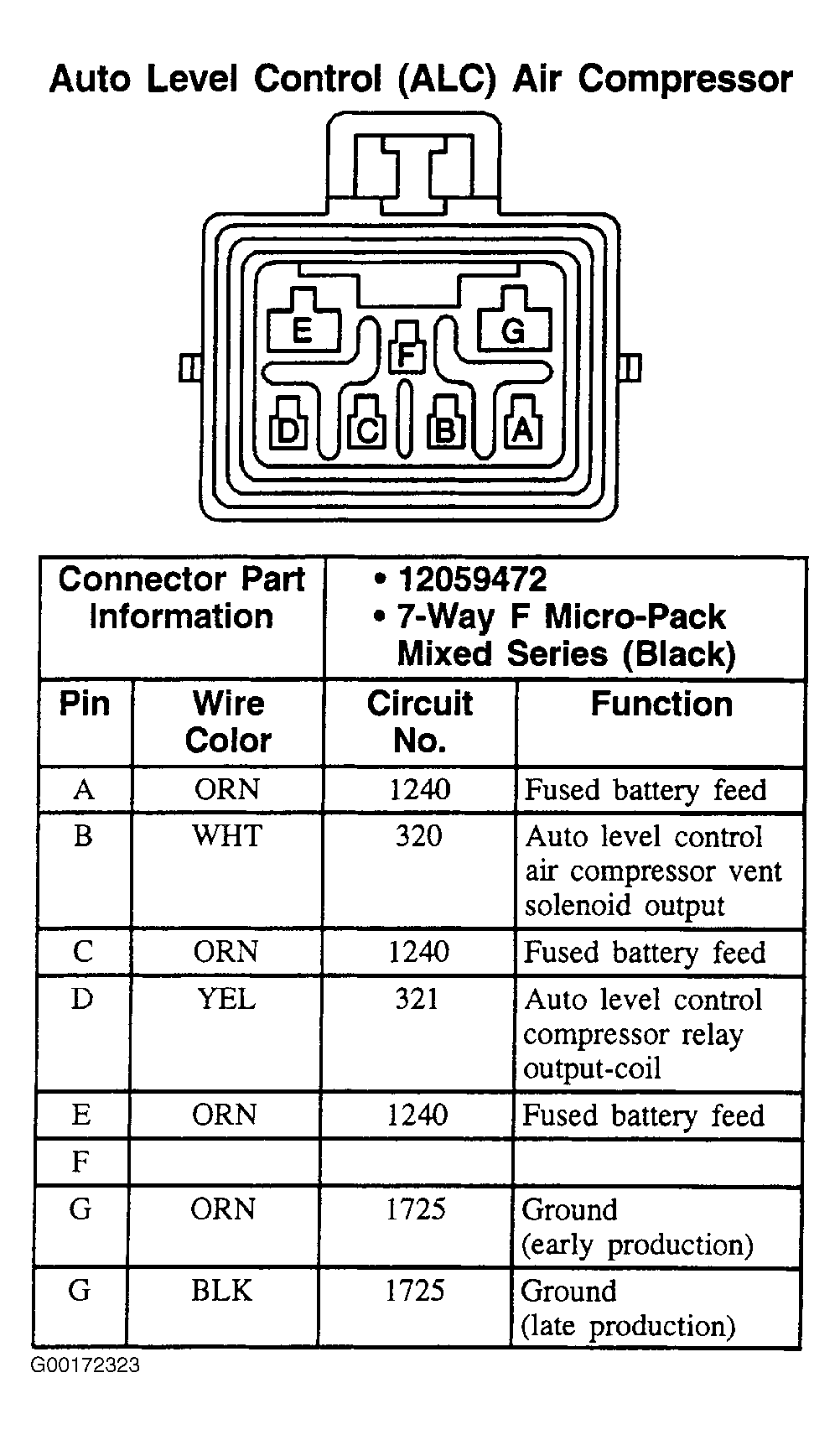

Fig 1: Auto Level Control (ALC) Air Compressor - 7-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
