Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
Electronic Brake Control Module/Electronic Brake & Traction Control Module Connectors
>>
Electronic Brake Control Module/Electronic Brake & Traction Control Module C1
Electronic Brake Control Module/Electronic Brake & Traction Control Module C1
Download the full database via torrent (~1.1 TB)

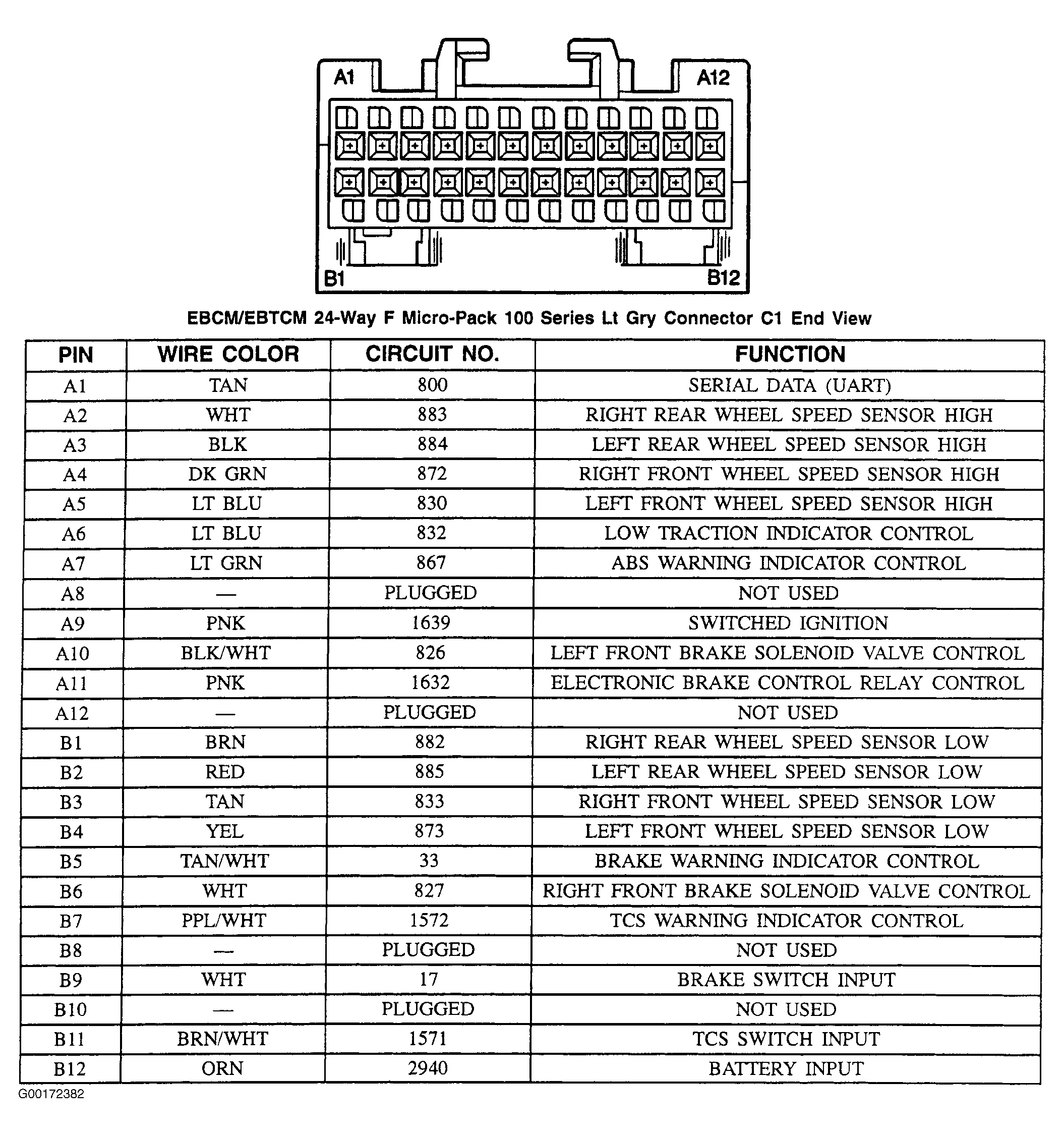

Fig 1: Electronic Brake Control Module/Electronic Brake & Traction Control Module C1 - 24-Pin Connector (Light Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
