Venture LS
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
Ignition Control Module (ICM) Connectors
>>
Ignition Control Module (ICM) C1
Ignition Control Module (ICM) C1
Download the full database via torrent (~1.1 TB)

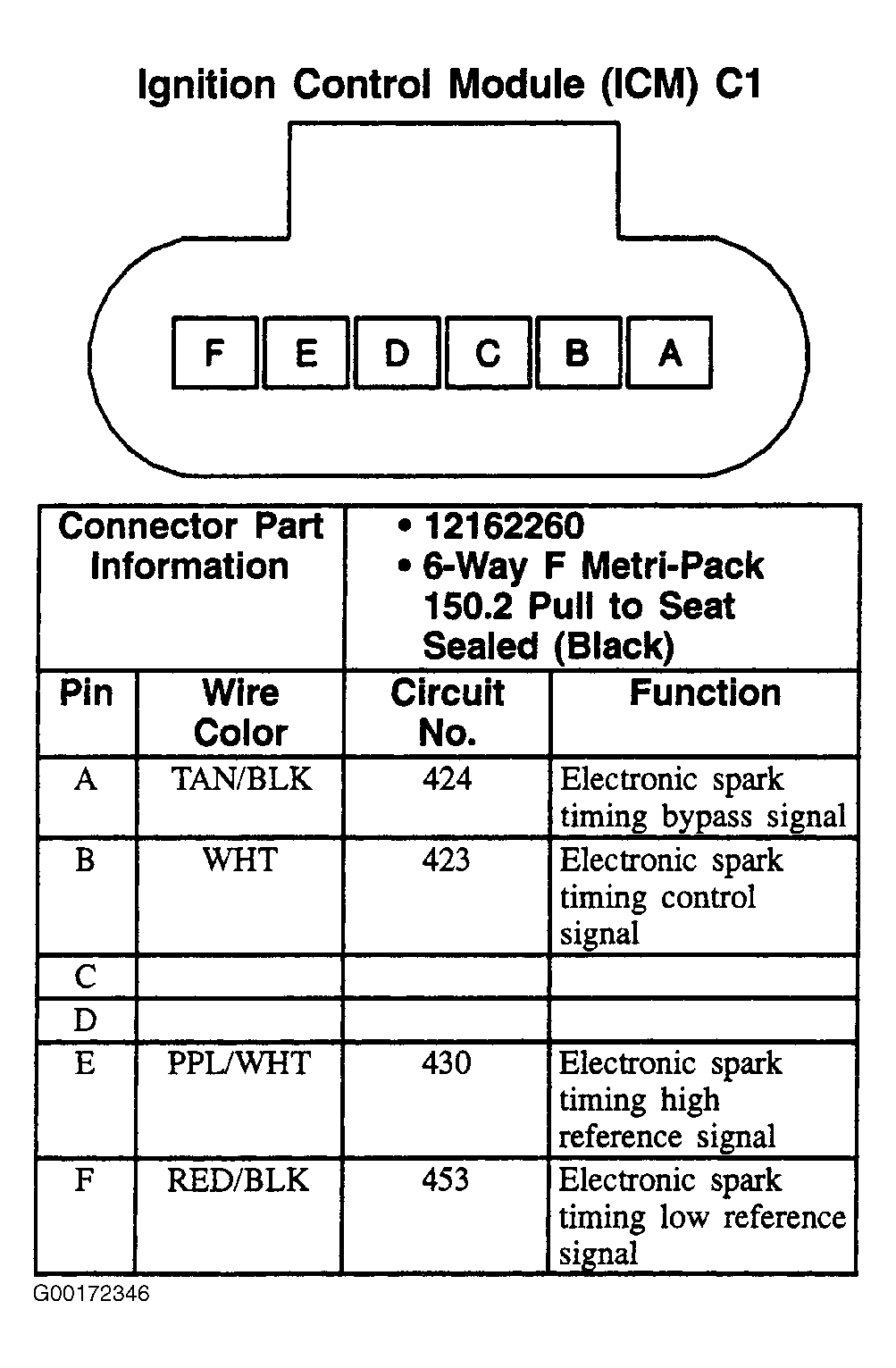

Fig 1: Ignition Control Module (ICM) C1 - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
