Connector Terminal Identification
>>
Malfunction Indicator Lamp Traction Control Module
Malfunction Indicator Lamp Traction Control Module
Download the full database via torrent (~1.1 TB)

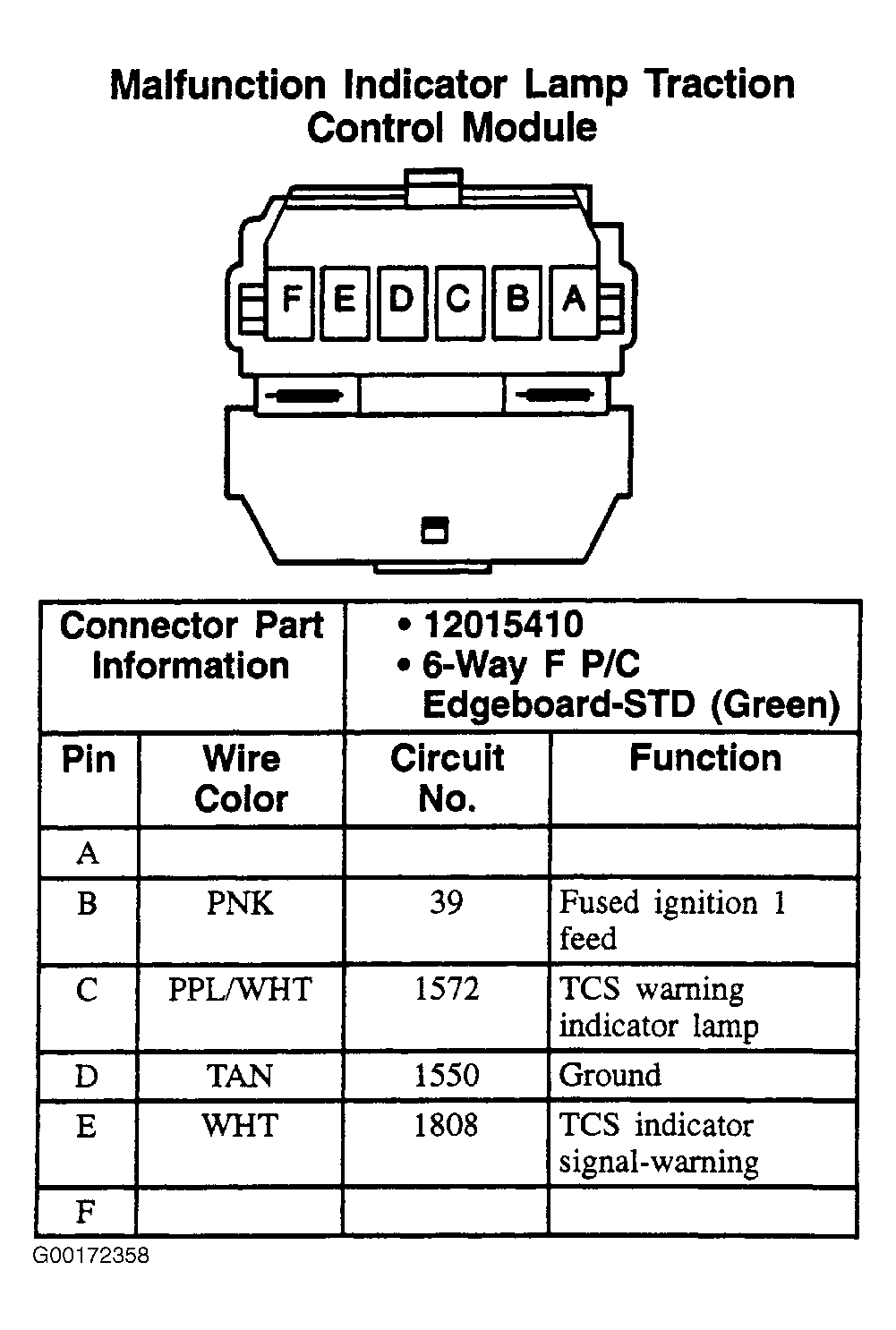

Fig 1: Malfunction Indicator Lamp Traction Control Module - 6-Pin Connector (Green)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
