Relay Center
Download the full database via torrent (~1.1 TB)

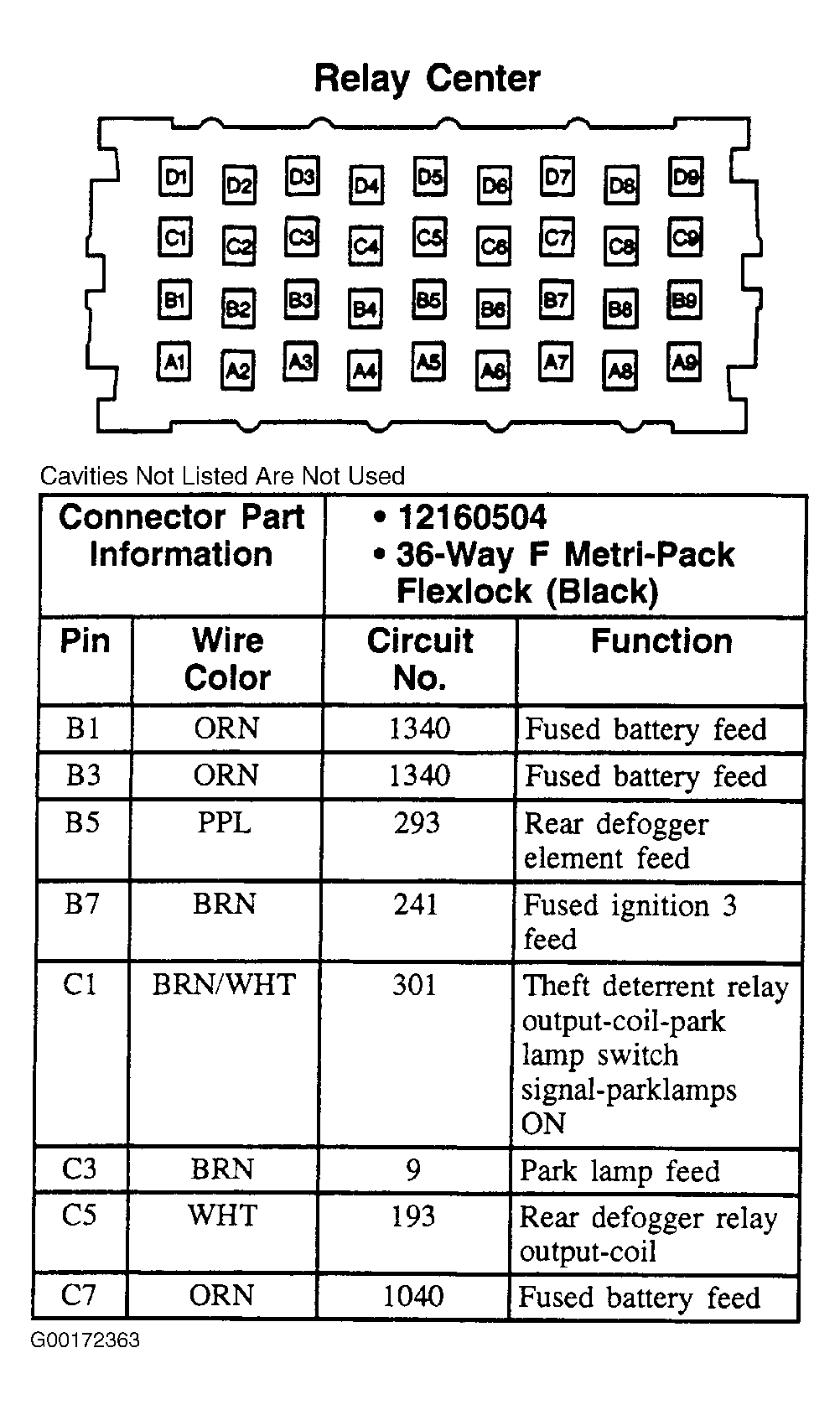

Fig 1: Relay Center - 36-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
