Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Shift Interlock Systems
>>
Connector Identification
Connector Identification
Download the full database via torrent (~1.1 TB)

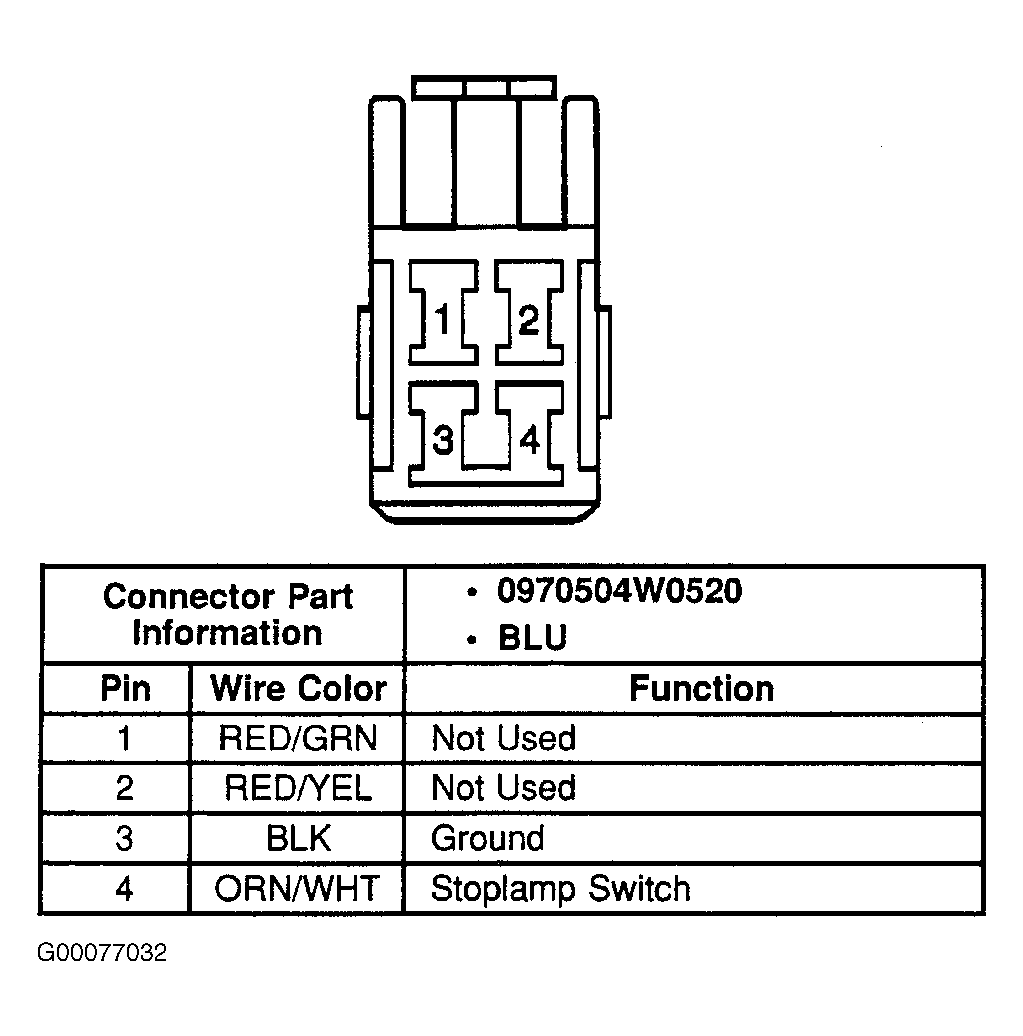

Fig 1: Identifying Shift Lock Control Solenoid Connector Terminals
Courtesy of GENERAL MOTORS CORP.

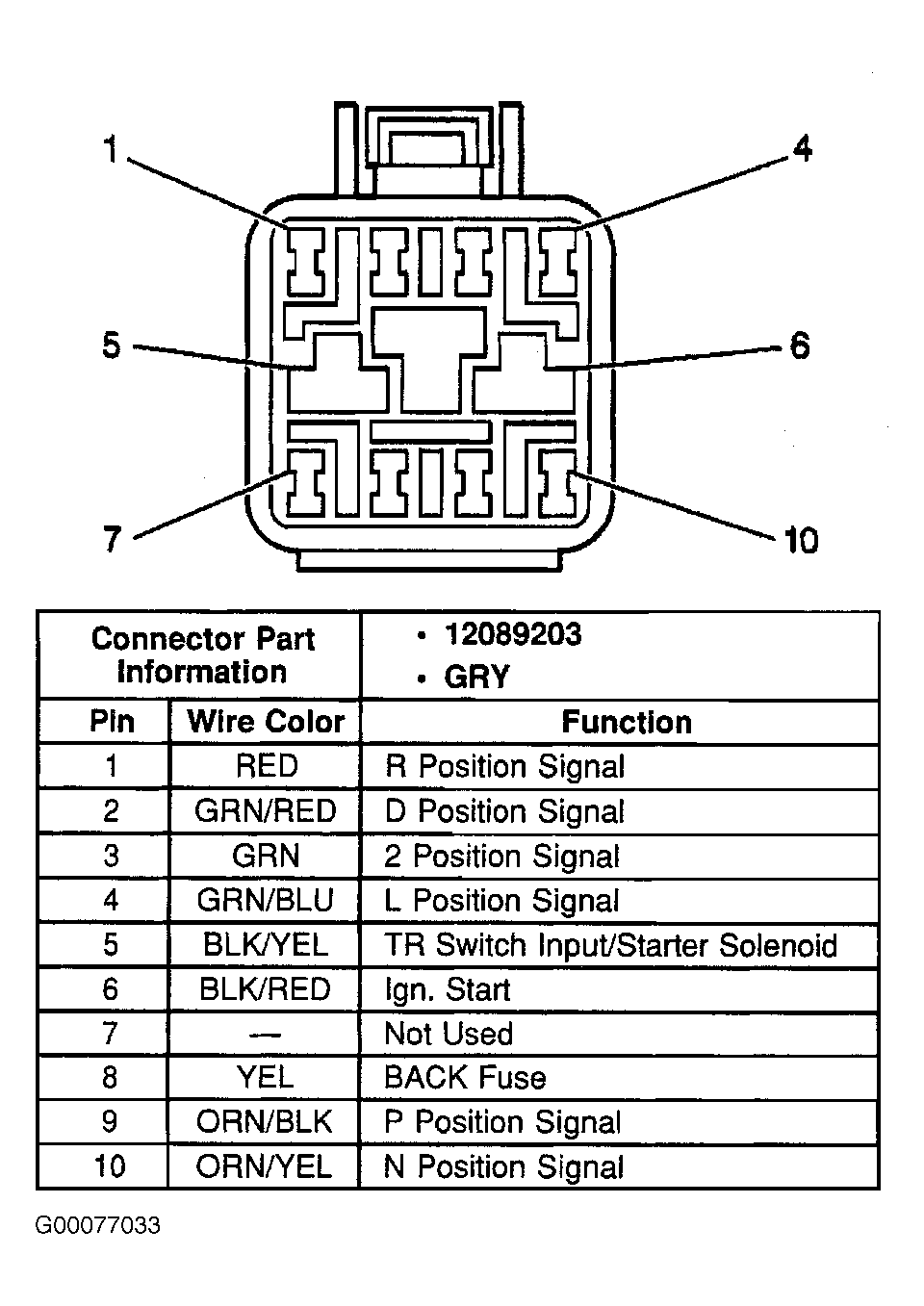

Fig 2: Identifying Transaxle Range Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
