Connector Identification

Download the full database via torrent (~1.1 TB)

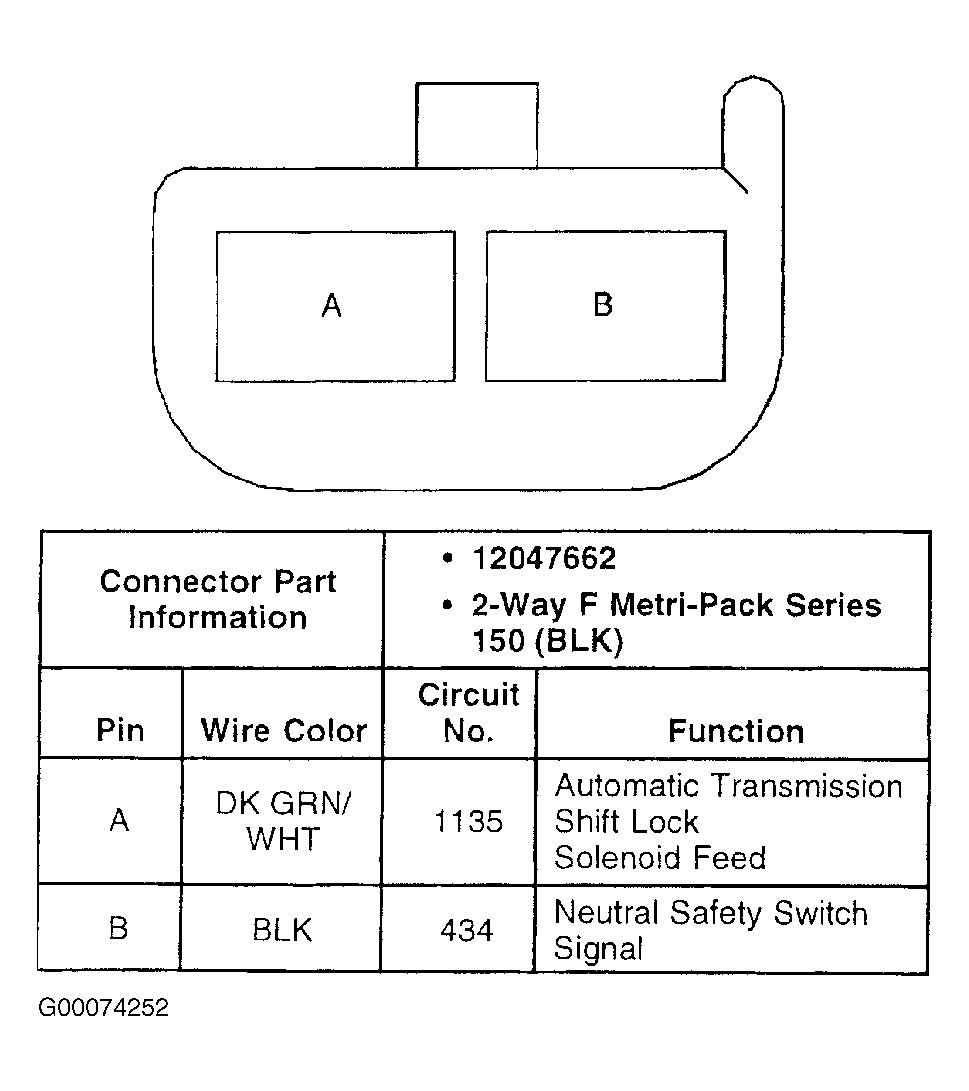

Fig 1: Identifying A/T Shift Lock Control Solenoid Connector Terminals
G00074252Courtesy of GENERAL MOTORS CORP.

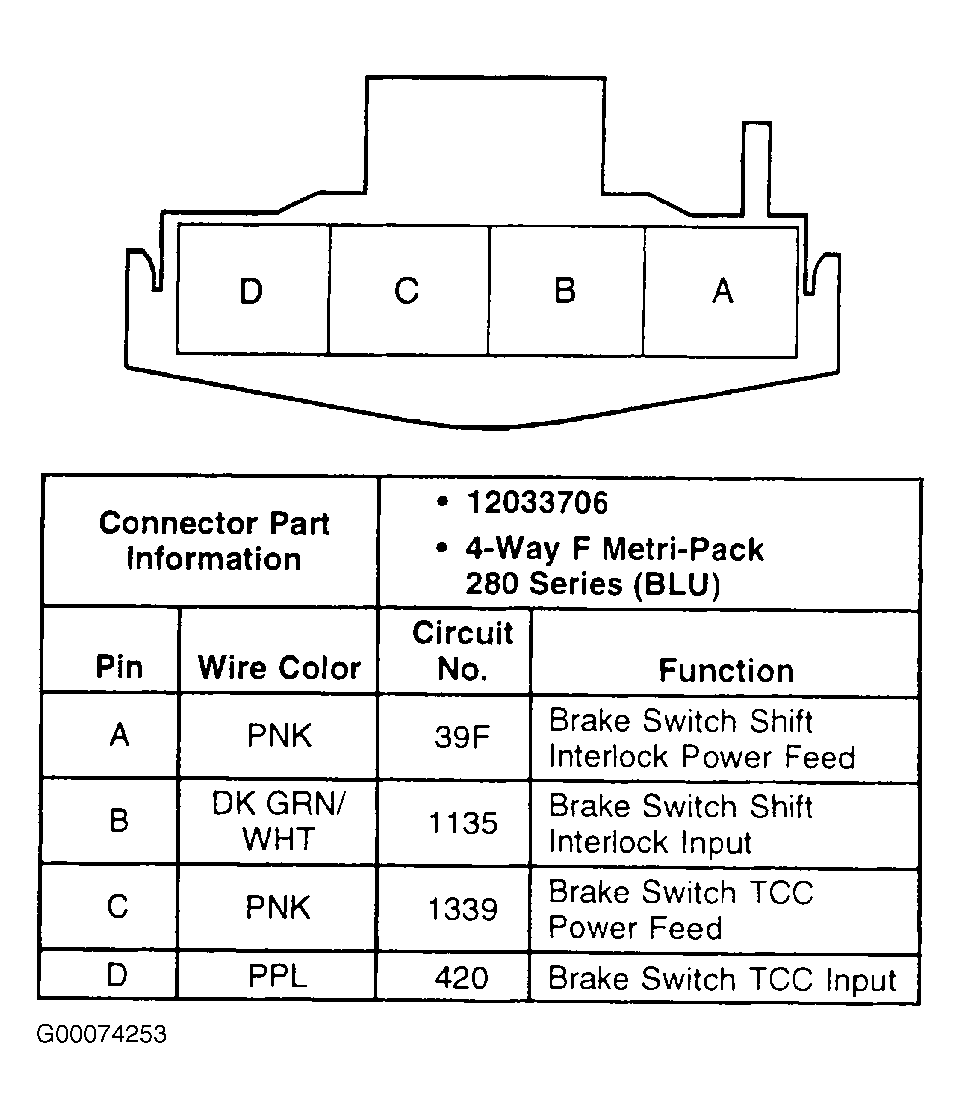

Fig 2: Identifying Shift Interlock/TCC Brake Switch Connector Terminals (Harness Side)
G00074253Courtesy of GENERAL MOTORS CORP.

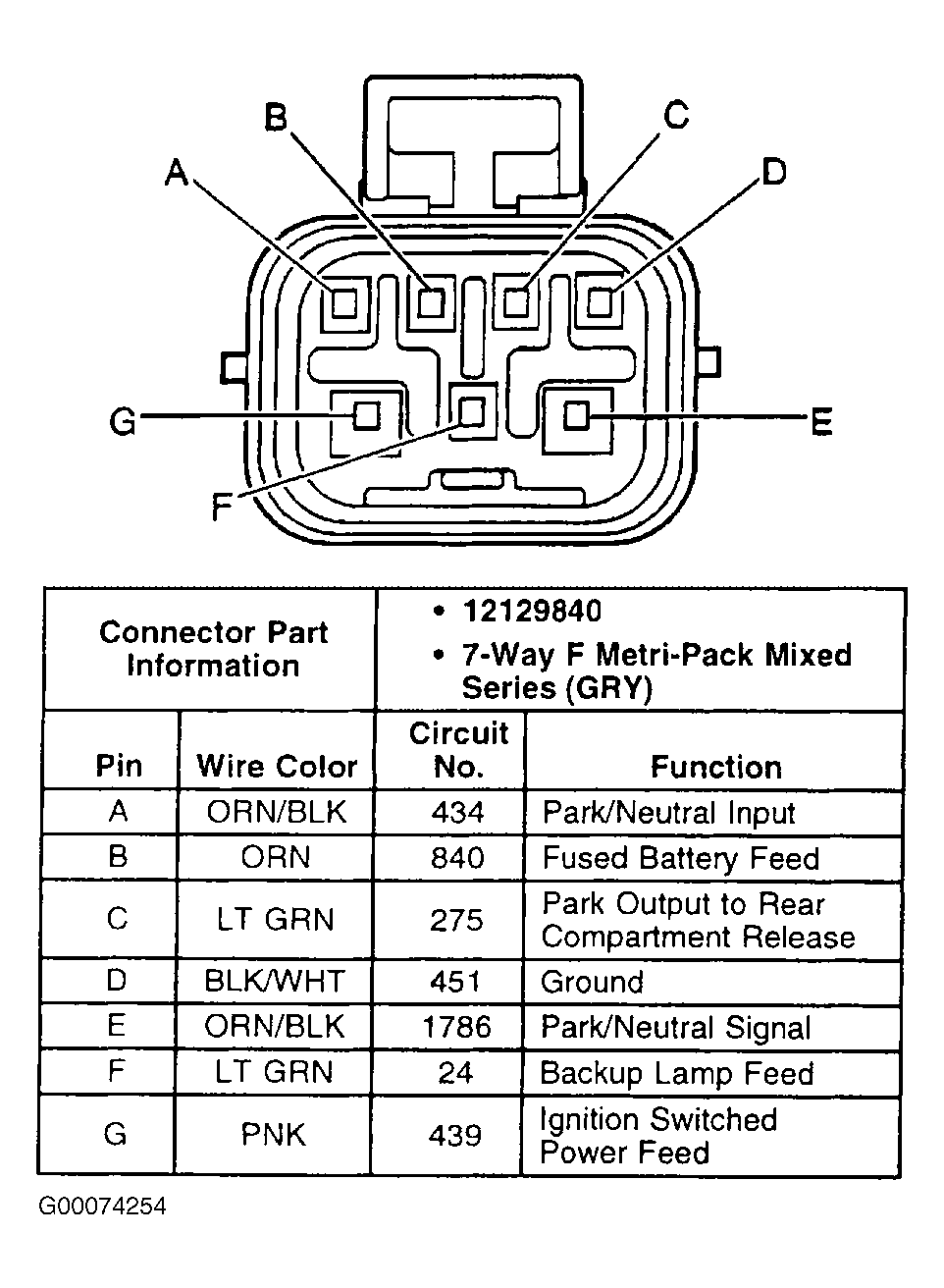

Fig 3: Identifying Transmission Range Switch Connector C1 Terminals (Harness Side)
G00074254Courtesy of GENERAL MOTORS CORP.
