Automatic Transmission Shift Lock Control Connector End Views
Download the full database via torrent (~1.1 TB)

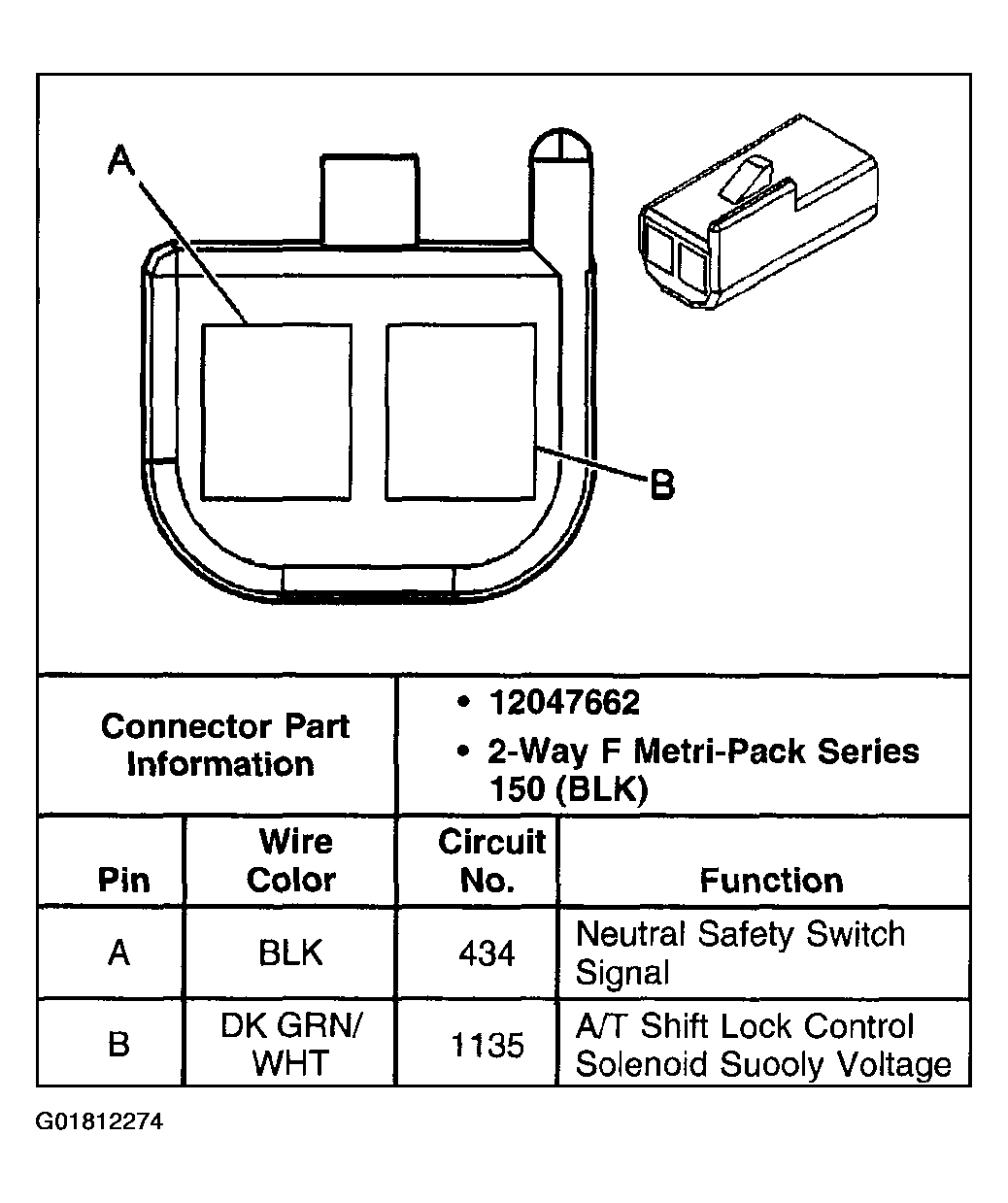

Fig 1: A/T Shift Lock Control Solenoid
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
