Wheel Alignment (Front)

Download the full database via torrent (~1.1 TB)

Use illustration for wheel alignment specifications. See Fig 1 .

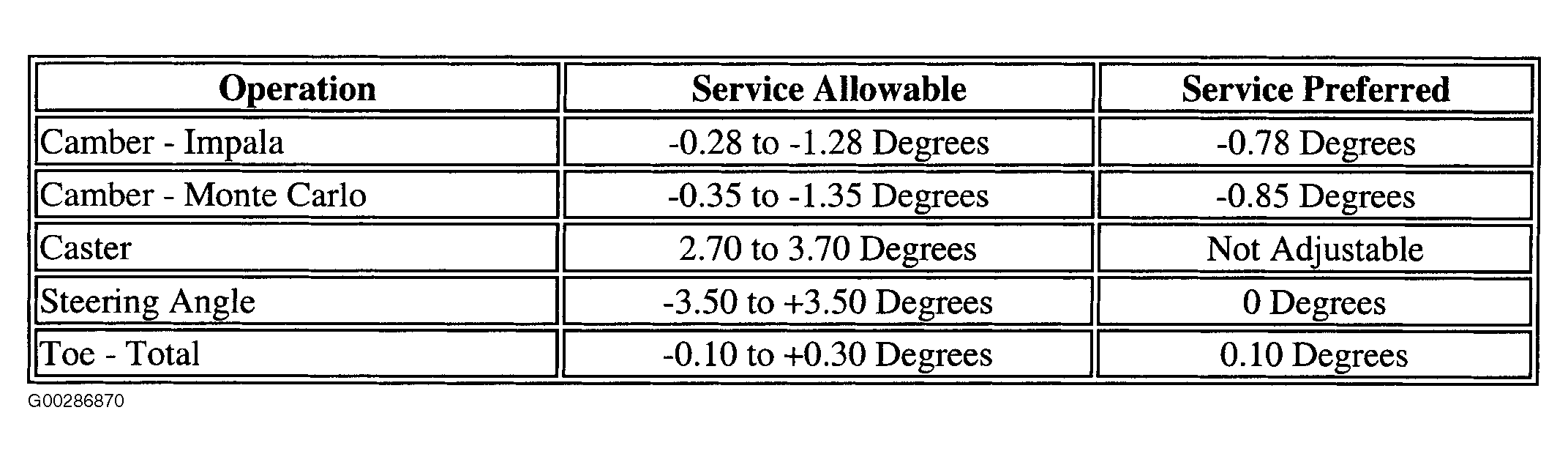

Fig 1: Wheel Alignment Specifications (Front)
G00286870Courtesy of GENERAL MOTORS CORP.
