Shift Lock Control Wiring Schematics
>>
Shift Lock
Shift Lock
Download the full database via torrent (~1.1 TB)

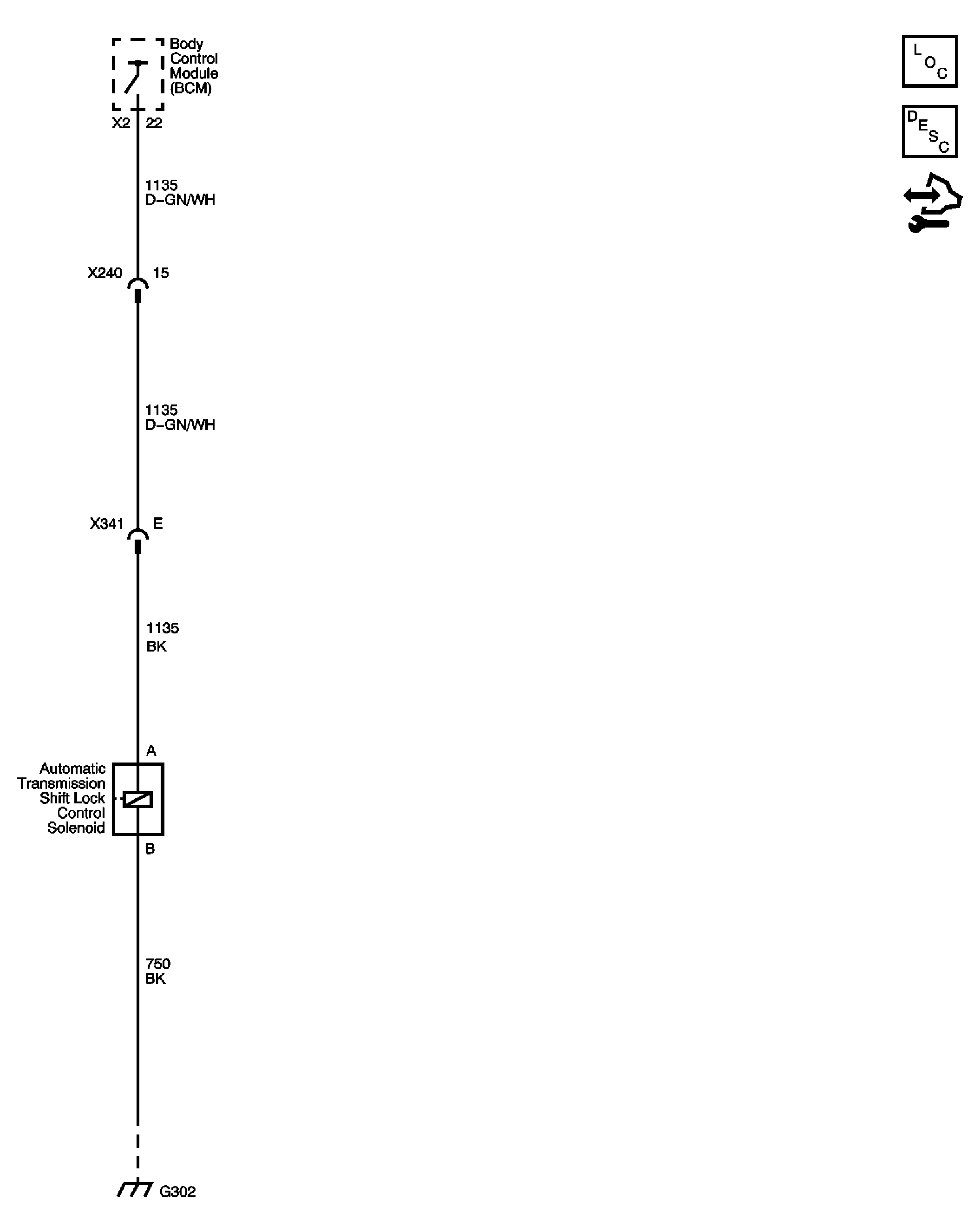

Fig 1: Shift Lock Control Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
