Plug-In Charging Wiring Schematics
Plug-In Charging Wiring Schematics
Download the full database via torrent (~1.1 TB)

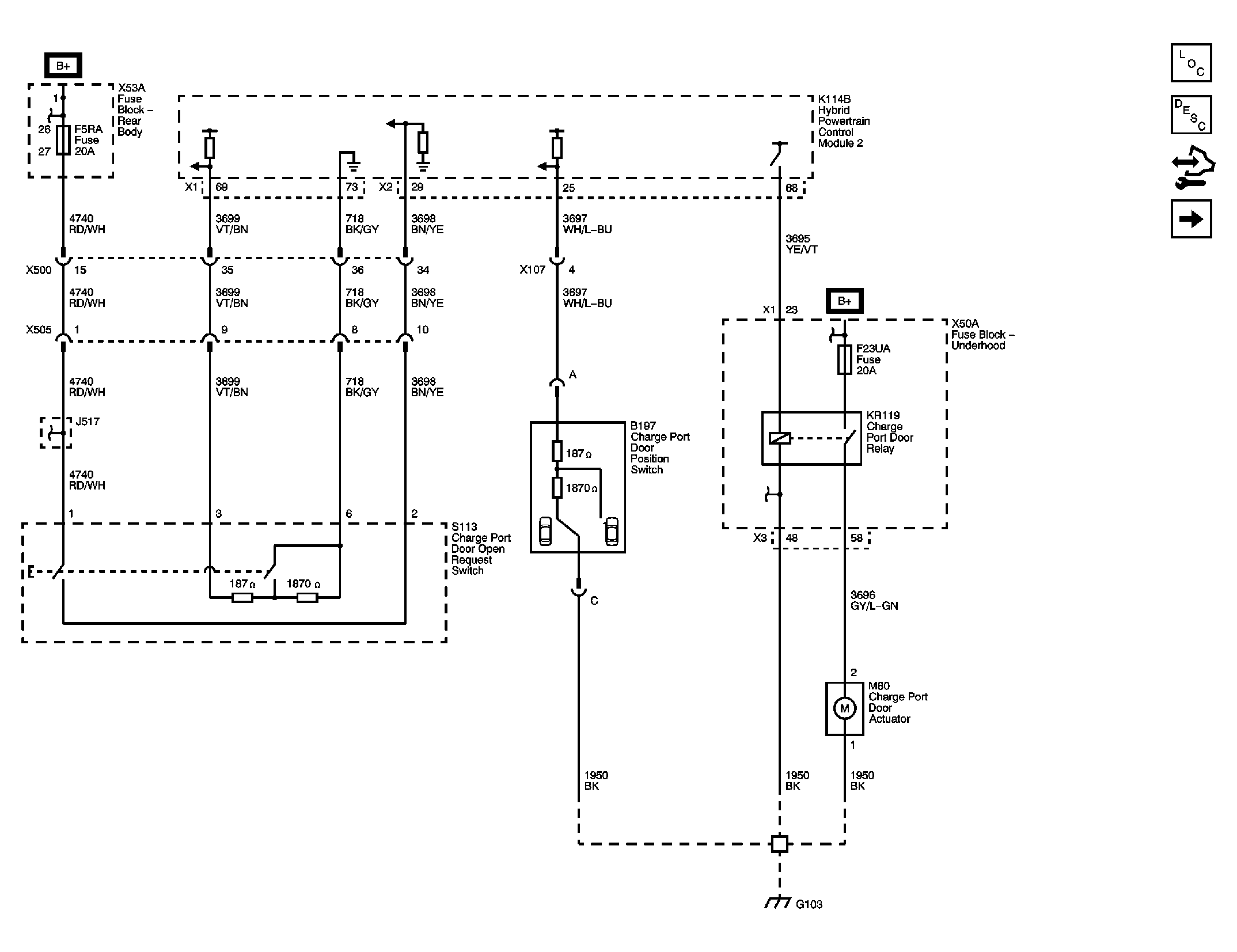

Fig 1: Charging Port Door Wiring Schematic
Courtesy of GENERAL MOTORS CORP.

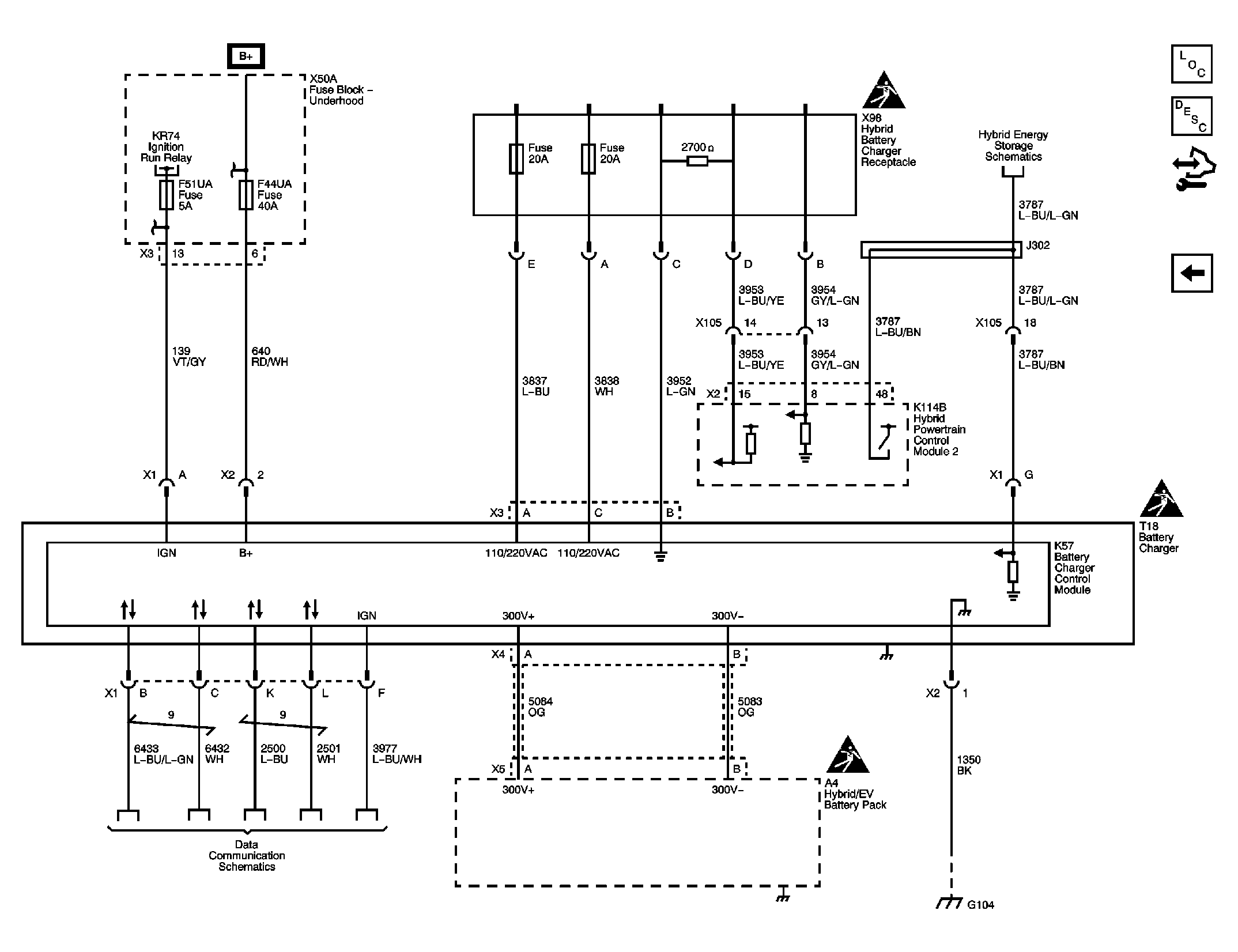

Fig 2: Battery Charger Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
